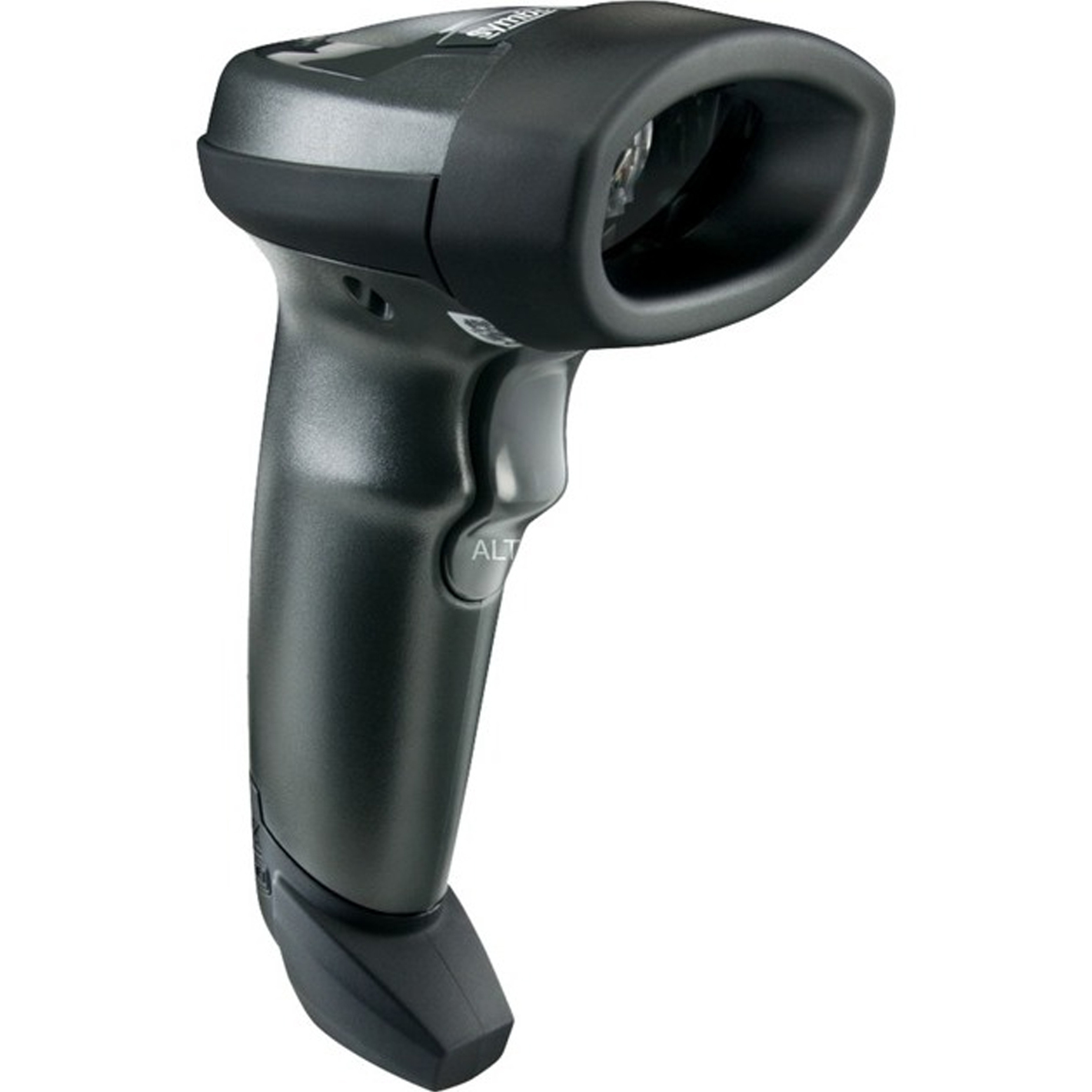

LI2208-SR Handheld bar code reader 1D Linear Black
Model LI2208-SRPart no. LI2208-SR7U2100SGW-NOB
28 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight140 g
- ColourBlack
- Power source typeUSB
- Width67 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 140 g
- Colour
- Black
- Power source type
- USB
- Width
- 67 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- LI2208-SR
- Part number
- LI2208-SR7U2100SGW-NOB
- Also known as
- Zebra LI2208-SR Handheld bar code reader 1D Linear Black
Specifications
28 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | TLC-39, Code 39 |
| Linear (1D) barcodes supported | Code 39, GS1 DataBar, Code 39 (ASCII), GS1 DataBar Expanded, JAN, GS1 Databar Limited, DataBar14, GS1-128 (UCC/EAN-128), TCL39, Code 11, MSI, Code 128, IATA, EAN 128, ISBN, U.P.C., ISSN, UPC-A, UPC-E, EAN-13, EAN-8, UPC-E1, Code 32 |
| Sensor type | Linear |
| Read rate (max) | 547 reads/s |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 617 nm |
| Pitch reading angle | -45 - 45° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, RS-485, USB |
| Cable length | 2.1 m |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP42 |
| Certification | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 165 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 99 mm |
| Height | 160 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
