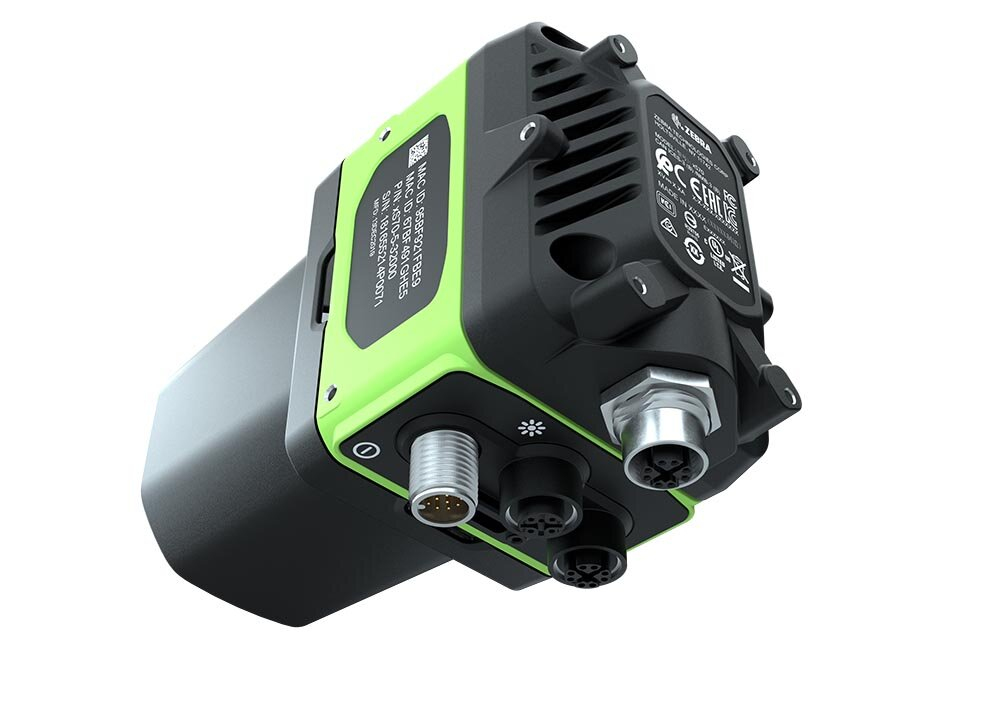

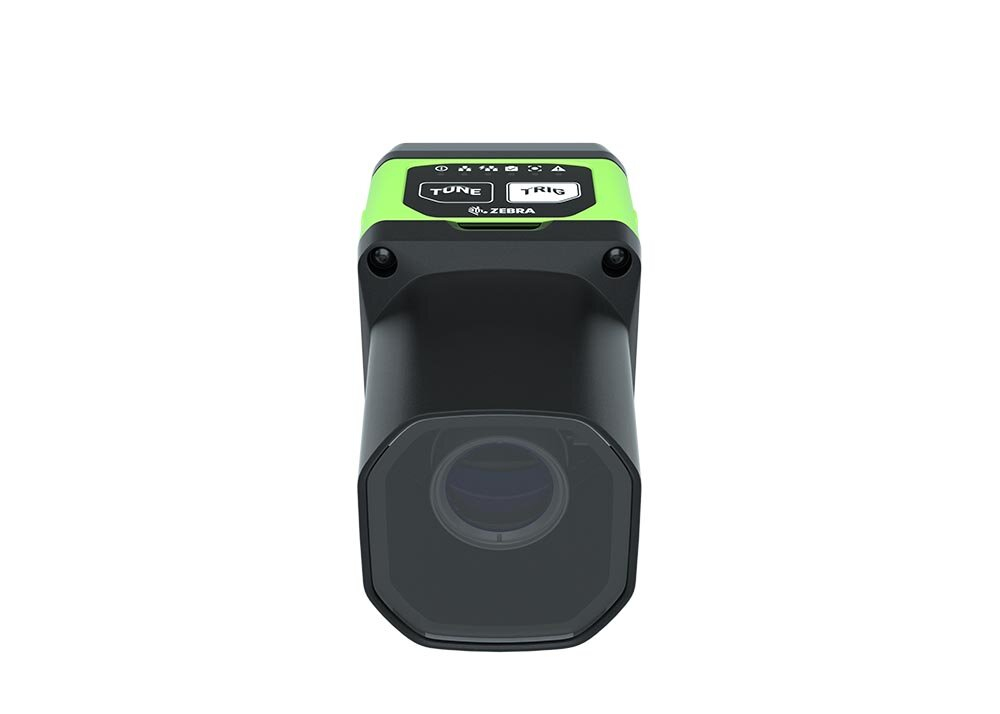

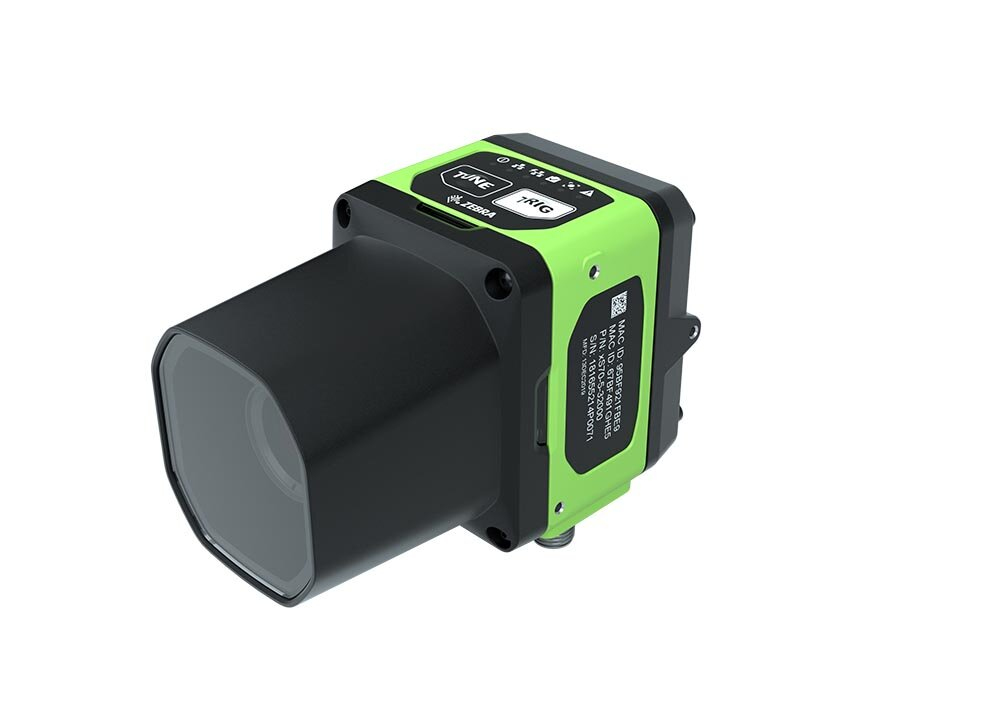

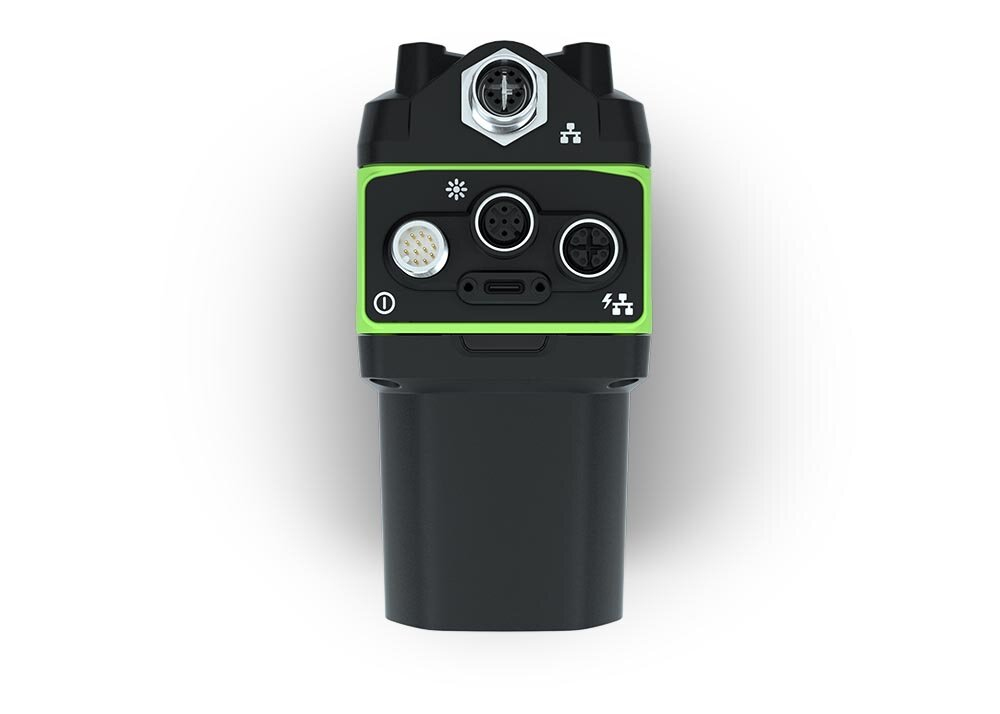

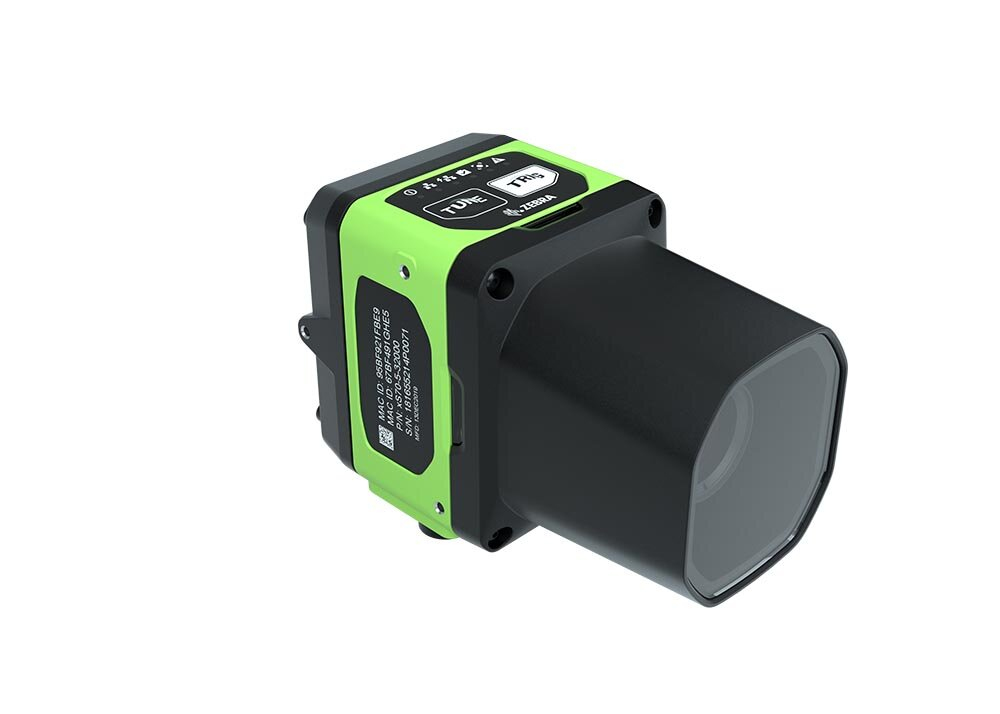

FS70 Fixed bar code reader 1D/2D CMOS Black, Green
Model FS70Part no. FS70-CM20Z6-0C00W
20 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight650 g
- ColourBlack, Green
- Power source typePoE
- Width65 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 650 g
- Colour
- Black, Green
- Power source type
- PoE
- Width
- 65 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- FS70
- Part numbers
- FS70-CM20Z6-0C00W, FS70-CM20D5-0C00W, FS70-CM20F5-0C00W
- Also known as
- Zebra FS70 Fixed bar code reader 1D/2D CMOS Black, Green
Specifications
20 specifications in 6 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417 |
| Linear (1D) barcodes supported | Code 93, Codabar, Code 128, U.P.C. |
| Sensor type | CMOS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RJ-45, USB |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| International Protection (IP) code | IP65, IP67 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 25.5 W |
| Input voltage | 10 - 30 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 95 mm |
| Height | 63 mm |
| Weight | 650 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
