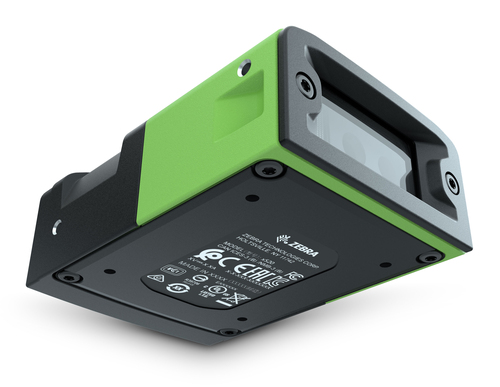

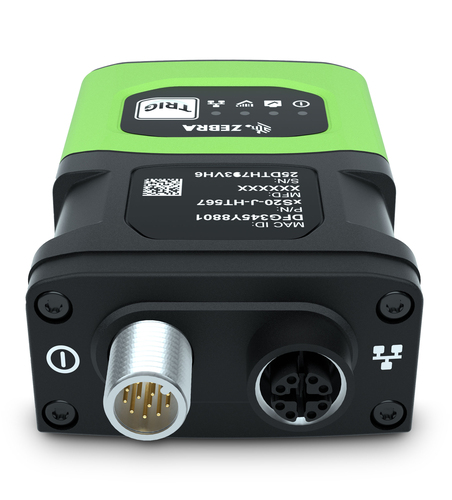

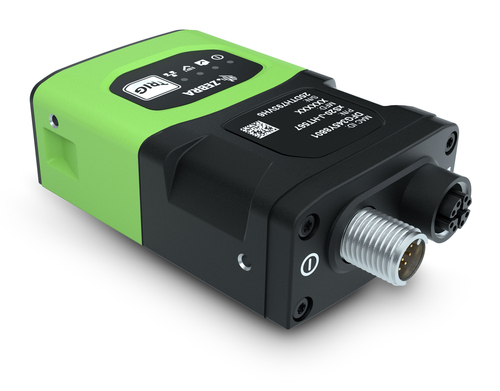

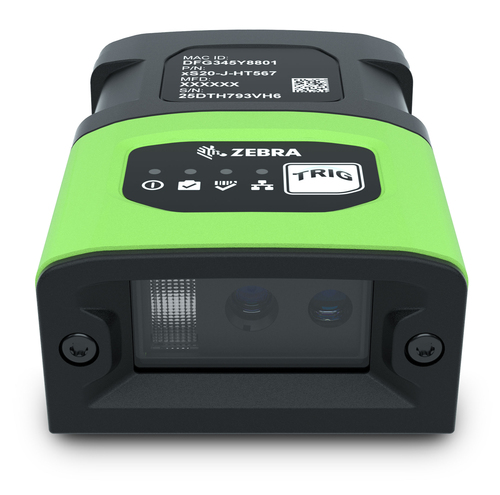

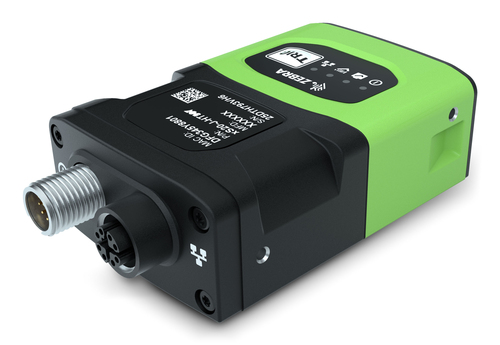

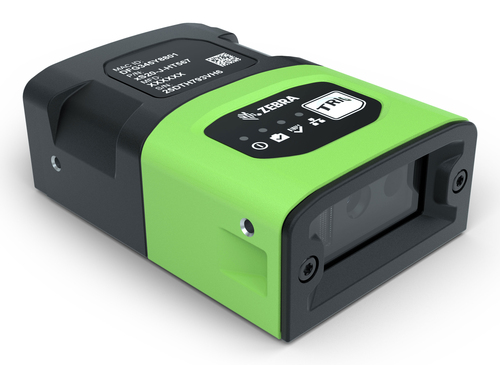

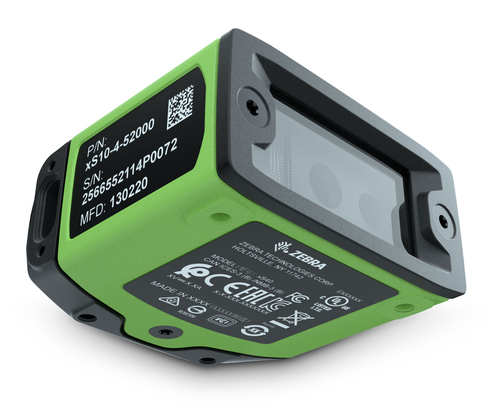

FS20 Fixed bar code reader 1D/2D CMOS Black, Green
Model FS20Part no. FS20-SR10E3-3C00W
27 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight195 g
- ColourBlack, Green
- Power source typeDC, PoE
- Width54.6 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 195 g
- Colour
- Black, Green
- Power source type
- DC, PoE
- Width
- 54.6 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- FS20
- Part numbers
- FS20-SR10E3-3C00W, FS20-SR10F3-3C00W, FS20-SR10Z2-2C00W, FS20-SR10Z3-3C00W, FS20-SR10Z2-3C00W, FS20-SR10E3-2C00W +3 more
- Also known as
- Zebra FS20 Fixed bar code reader 1D/2D CMOS Black, Green
Specifications
27 specifications in 6 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417 |
| Linear (1D) barcodes supported | Code 93, Codabar, Code 128, MSI-Plessey, U.P.C., Code 39 |
| Sensor type | CMOS |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 35° |
| Vertical field of view | 26° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RJ-45, RS-232 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Protection features | Vibration proof, Shock resistant |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 7.5 W |
| Input voltage | 10 - 30 V |
| Power consumption | 313 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54.6 mm |
| Depth | 94.2 mm |
| Height | 28.3 mm |
| Weight | 195 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
