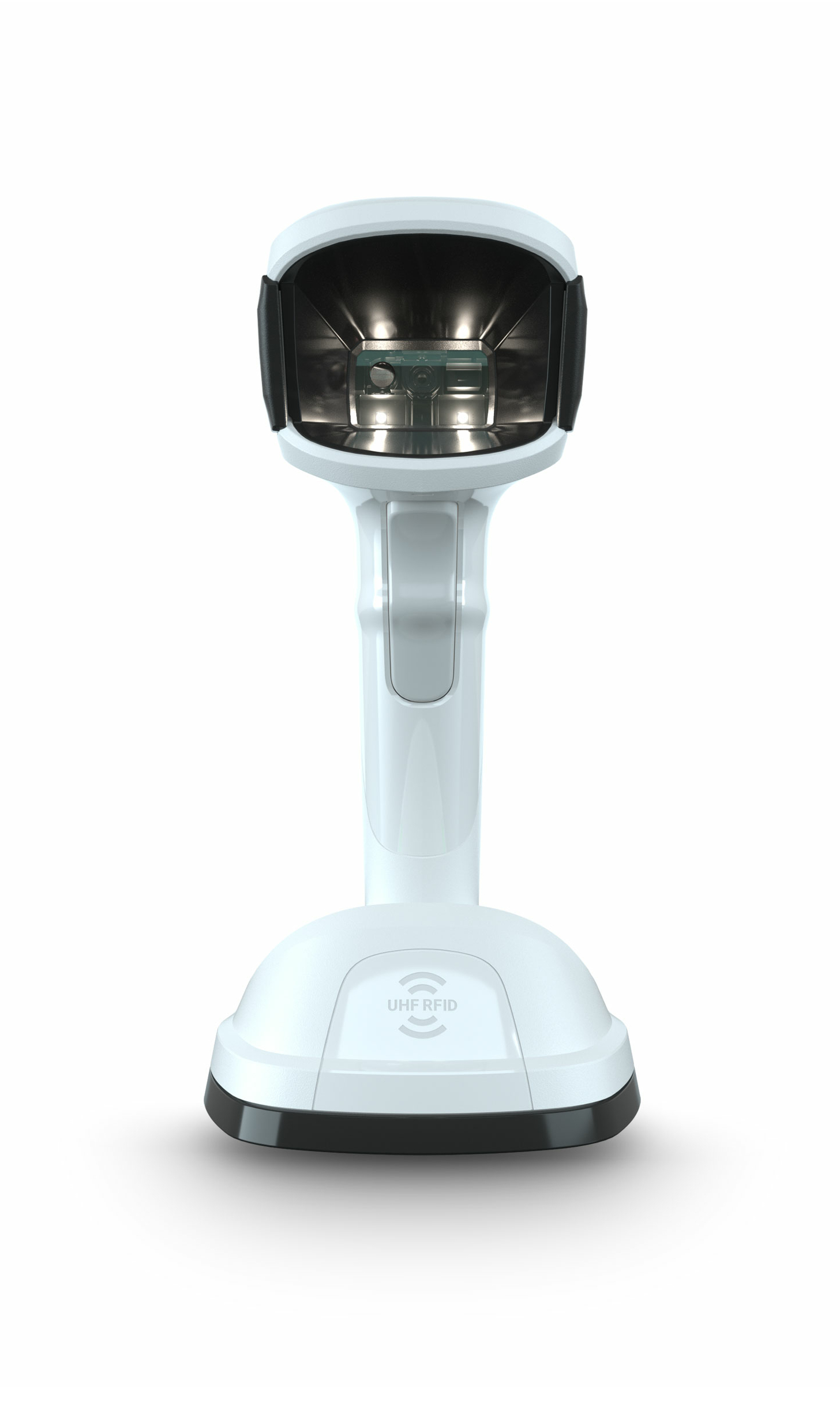

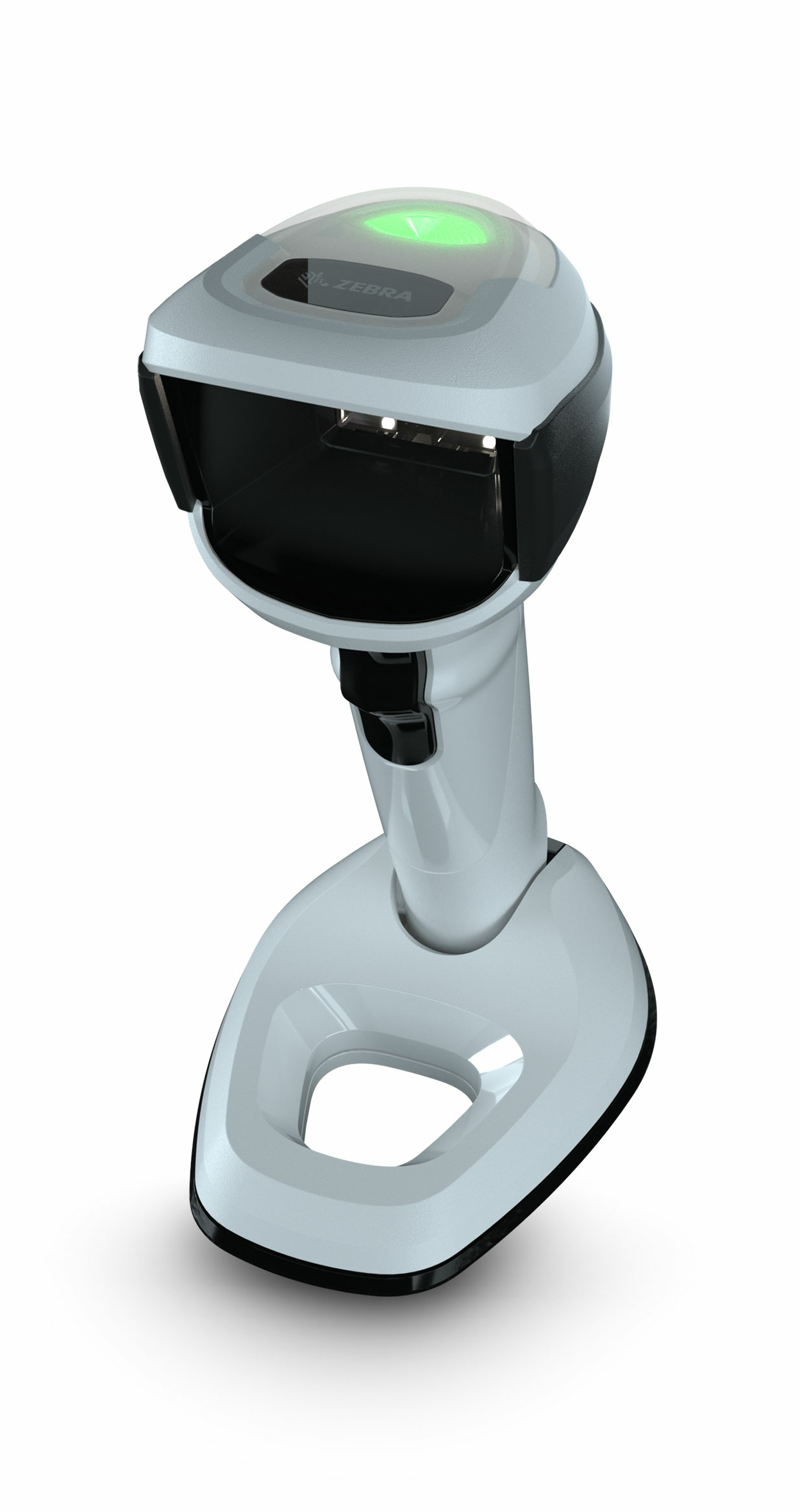

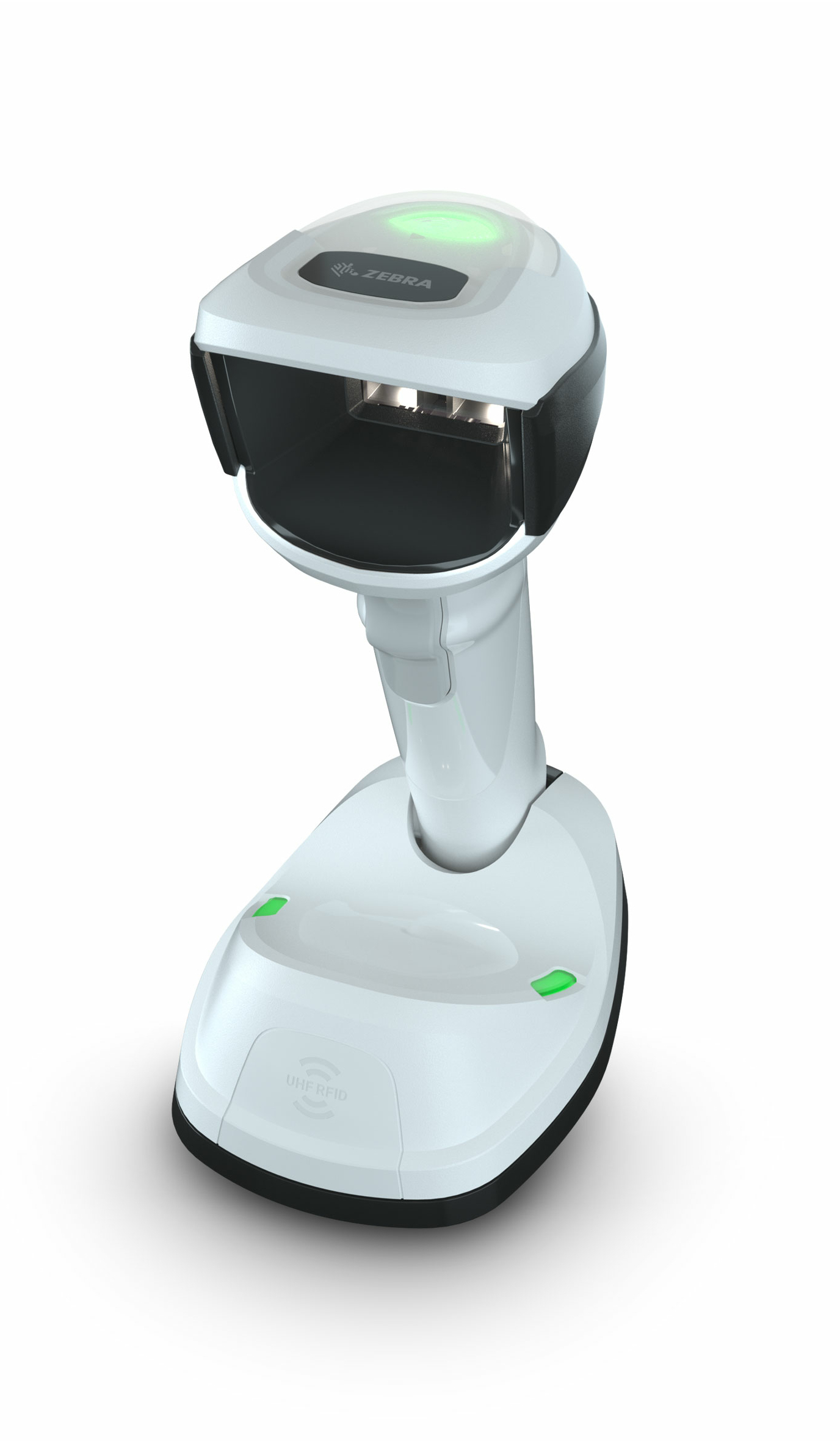

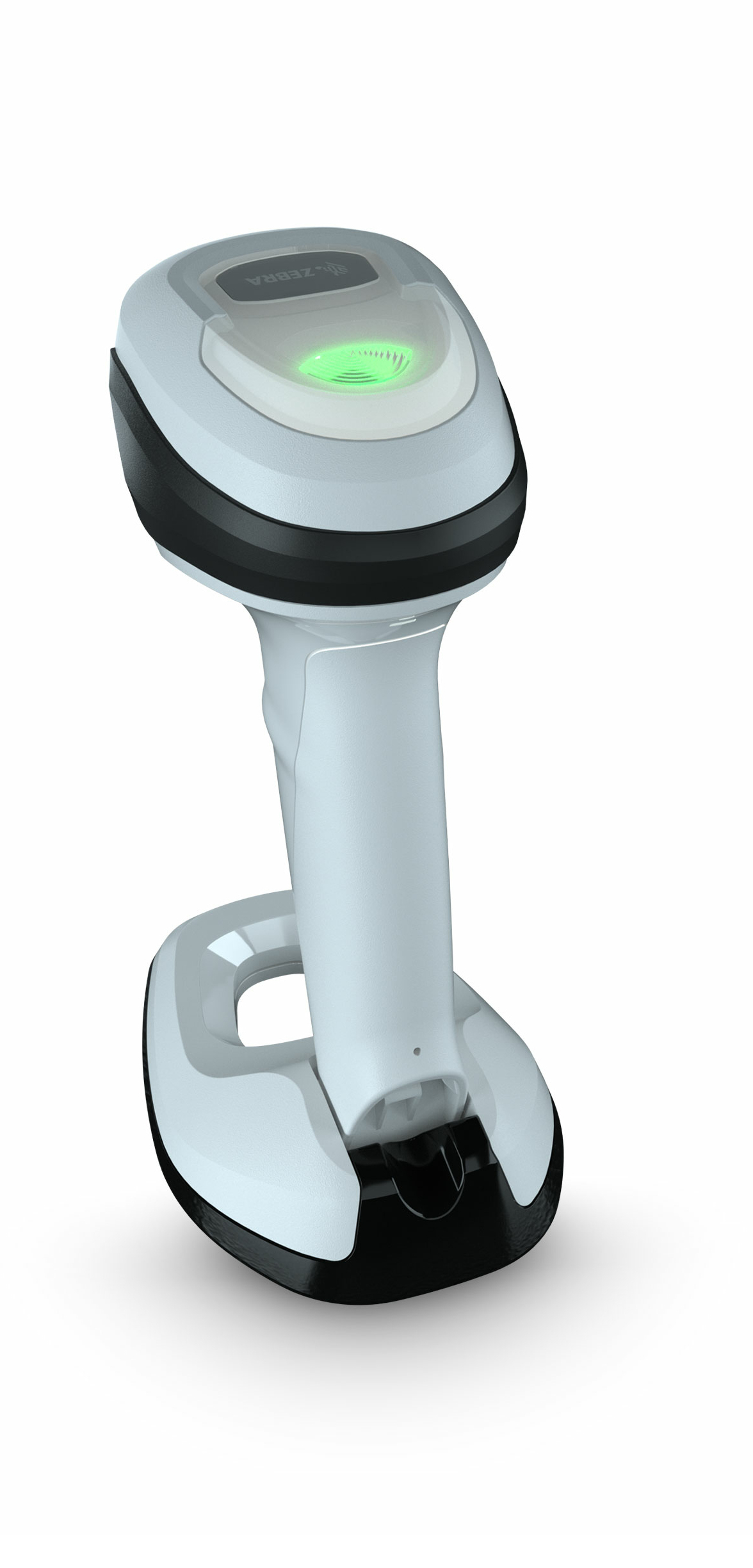

Zebra DS9908-HL Handheld bar code reader 1D/2D White
Zebra

DS9908-HL Handheld bar code reader 1D/2D White

Model DS9908-HLPart no. DS9908-HLWU2105AZU

26 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight330 g
  • ColourWhite
  • Power source typeDC
  • Width94 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
330 g
Colour
White
Power source type
DC
Width
94 mm
Brand
Zebra
Model
DS9908-HL
Part numbers
DS9908-HLWU2105AZU, DS9908-HLWU2104AZN
Also known as
Zebra DS9908-HL Handheld bar code reader 1D/2D White

Specifications

26 specifications in 6 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, MSI-Plessey, U.P.C.
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength617 nm
Pitch reading angle-60 - 60°

Ports & interfaces

Connectivity technologyWired
Standard interfacesRS-232, RS-485, USB

Performance

Product colourWhite
International Protection (IP) codeIP52
LED indicatorsYes
Built-in displayNo
Image formats supportedBMP, JPEG, TIFF
Built-in processorYes
Processor frequency800 MHz

Power

Power source typeDC
Input voltage5 V
Power consumption321 mA

Weight & dimensions

Width94 mm
Depth132 mm
Height203 mm
Weight330 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
