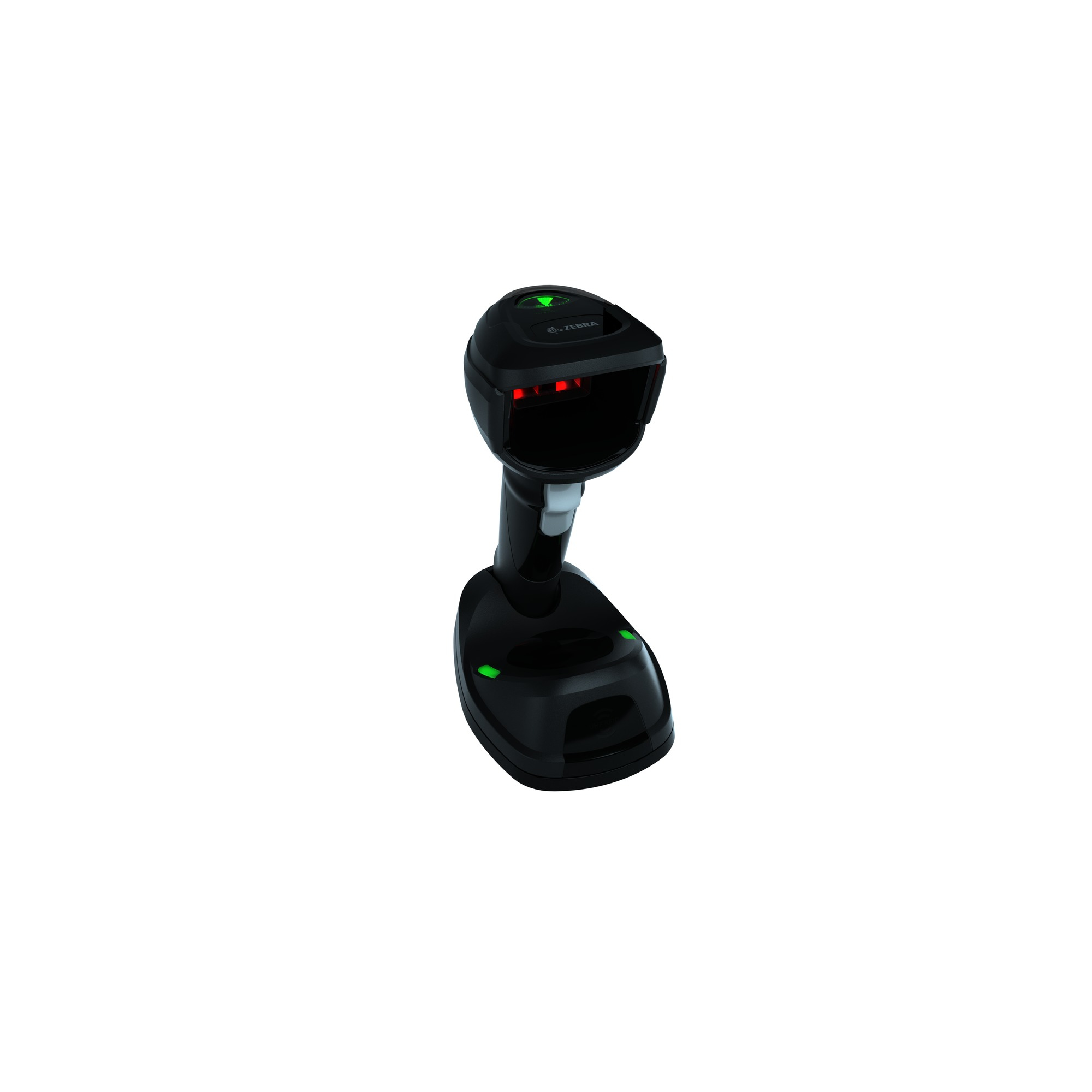

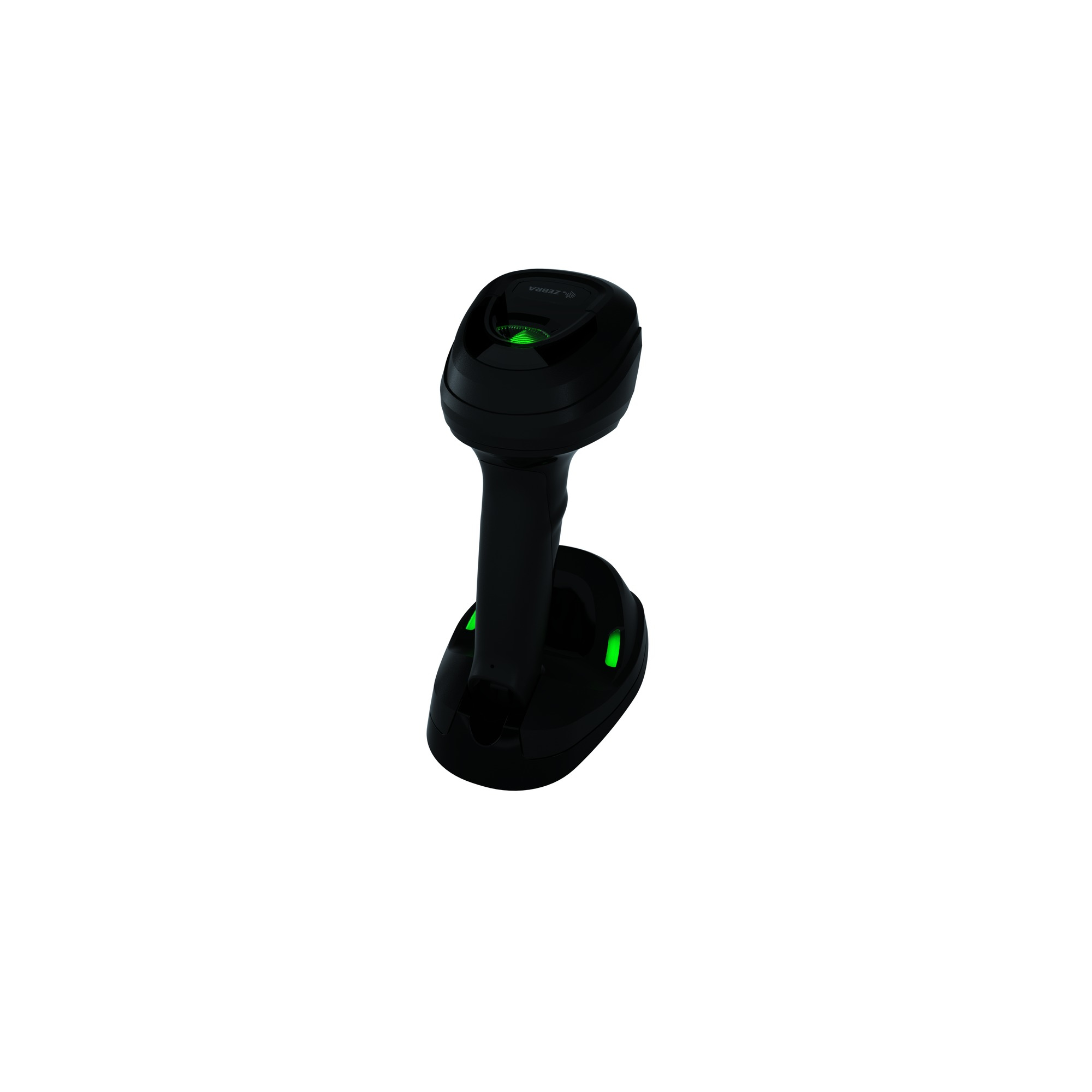

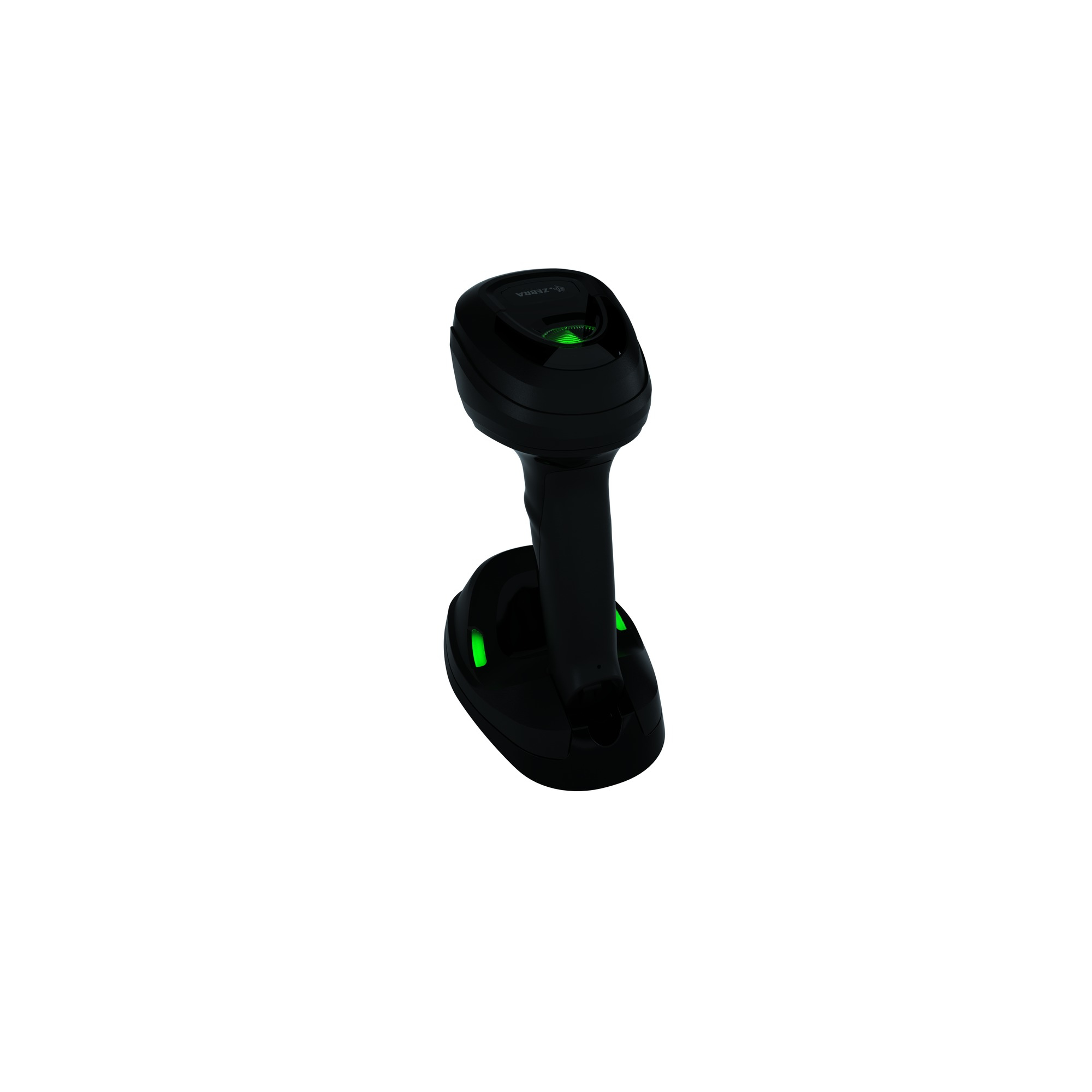

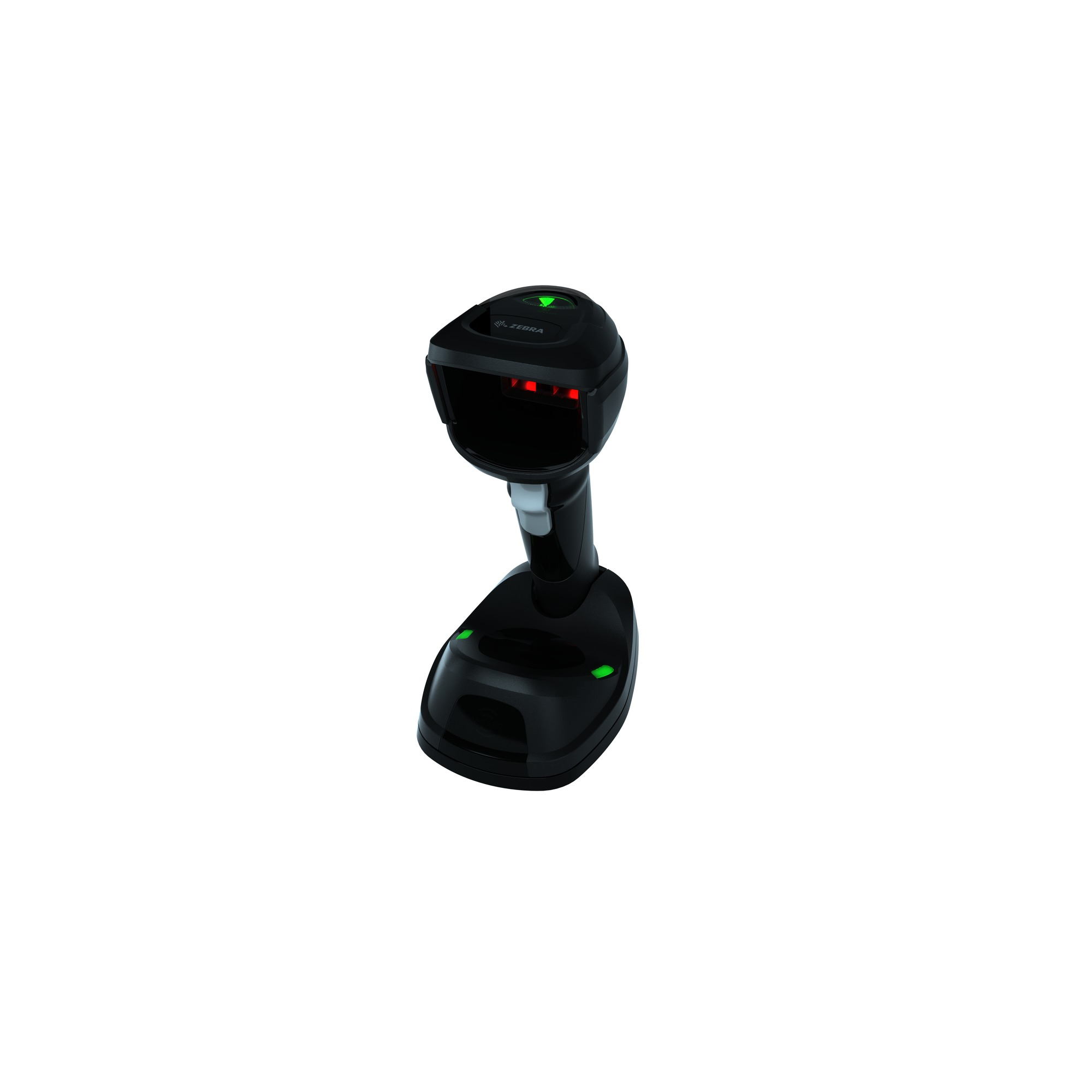

DS9908-DL Handheld bar code reader 1D/2D Black
Model DS9908-DLPart no. DS9908-DL4U210RAZU
27 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight330 g
- ColourBlack
- Power source typeDC
- Width94 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 330 g
- Colour
- Black
- Power source type
- DC
- Width
- 94 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS9908-DL
- Part numbers
- DS9908-DL4U210RAZU, DS9908-DL4U230RAZU
- Also known as
- Zebra DS9908-DL Handheld bar code reader 1D/2D Black
Specifications
27 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Code 39, GS1 DataBar, Code 93, Codabar, Code 11, Code 128, MSI-Plessey, U.P.C., Code 32 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 617 nm |
| Pitch reading angle | -60 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232, RS-485, USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Built-in display | No |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 5 V |
| Power consumption | 400 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 132 mm |
| Height | 203 mm |
| Weight | 330 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
