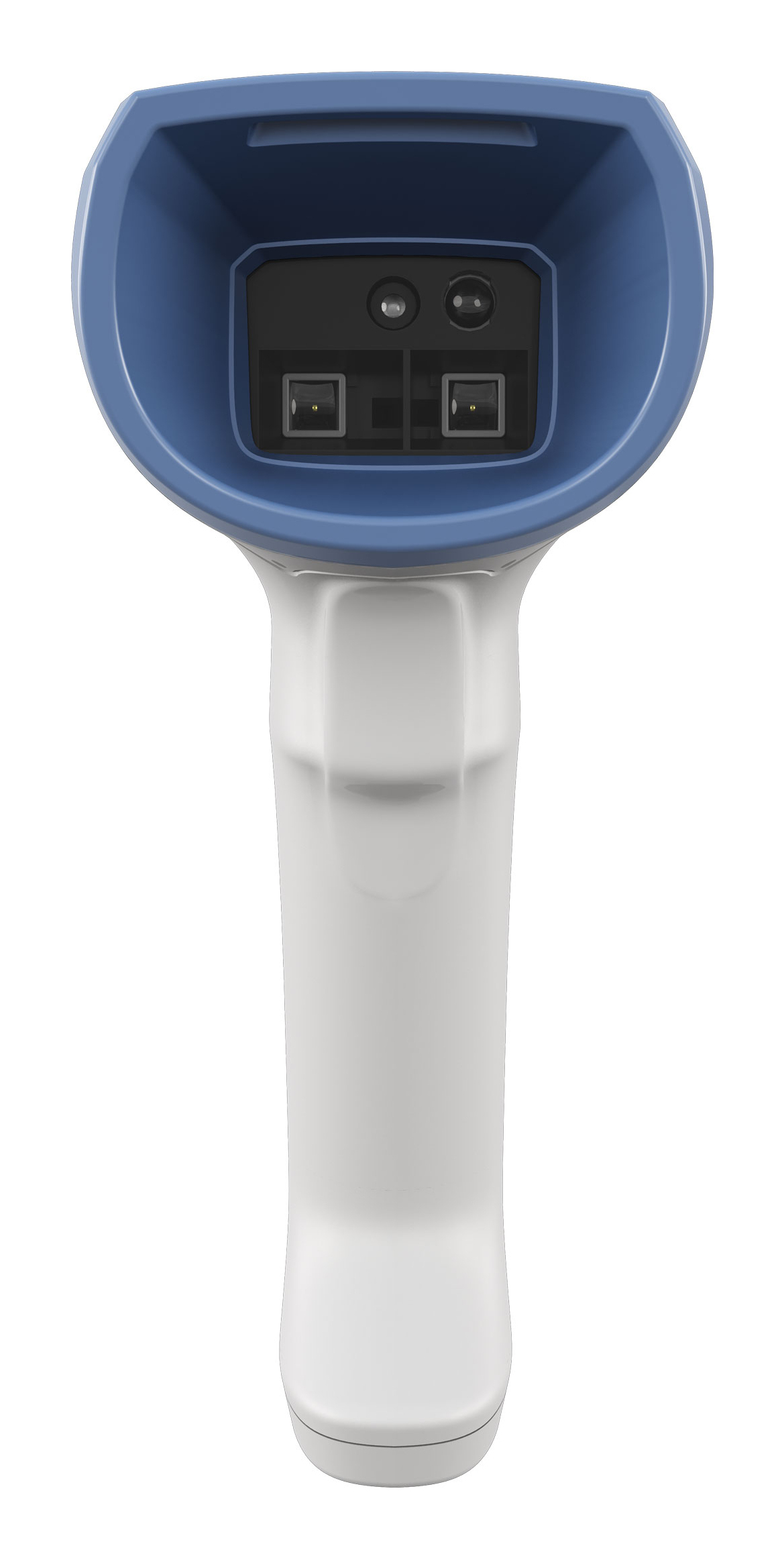

DS8288-HCBU210MPAW barcode reader Handheld bar code reader 1D/2D LED White
Model DS8288-HCBU210MPAW
29 specifications
- Battery3500 mAh
- ConnectivityWired & Wireless
- TypeHandheld bar code reader
- Weight185.5 g
- ColourWhite
- Power source typeDC
Overview
- Battery
- 3500 mAh
- Connectivity
- Wired & Wireless
- Type
- Handheld bar code reader
- Weight
- 185.5 g
- Colour
- White
- Power source type
- DC
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS8288-HCBU210MPAW
- Part number
- DS8288-HCBU210MPAW
- Also known as
- Zebra DS8288-HCBU210MPAW barcode reader Handheld bar code reader 1D/2D LED White
Specifications
29 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, SecurPharm, TLC-39 |
| Linear (1D) barcodes supported | AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, MSI, MSI-Plessey, Pha |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1600 x 1200 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 36° |
| Light levels (direct sunlight) | 0 - 107.6 lx |
| Pitch reading angle | 0 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.2 |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Ambient lighting | Yes |
| Print contrast | 16% |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Battery type | Built-in battery |
| Charging port type | USB Type-C |
| Battery life | 108 h |
| Charging time | 13 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 185.5 g |
Operational conditions
| Specification | Value |
|---|---|
| Drop resistance | 3 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3500 mAh |
