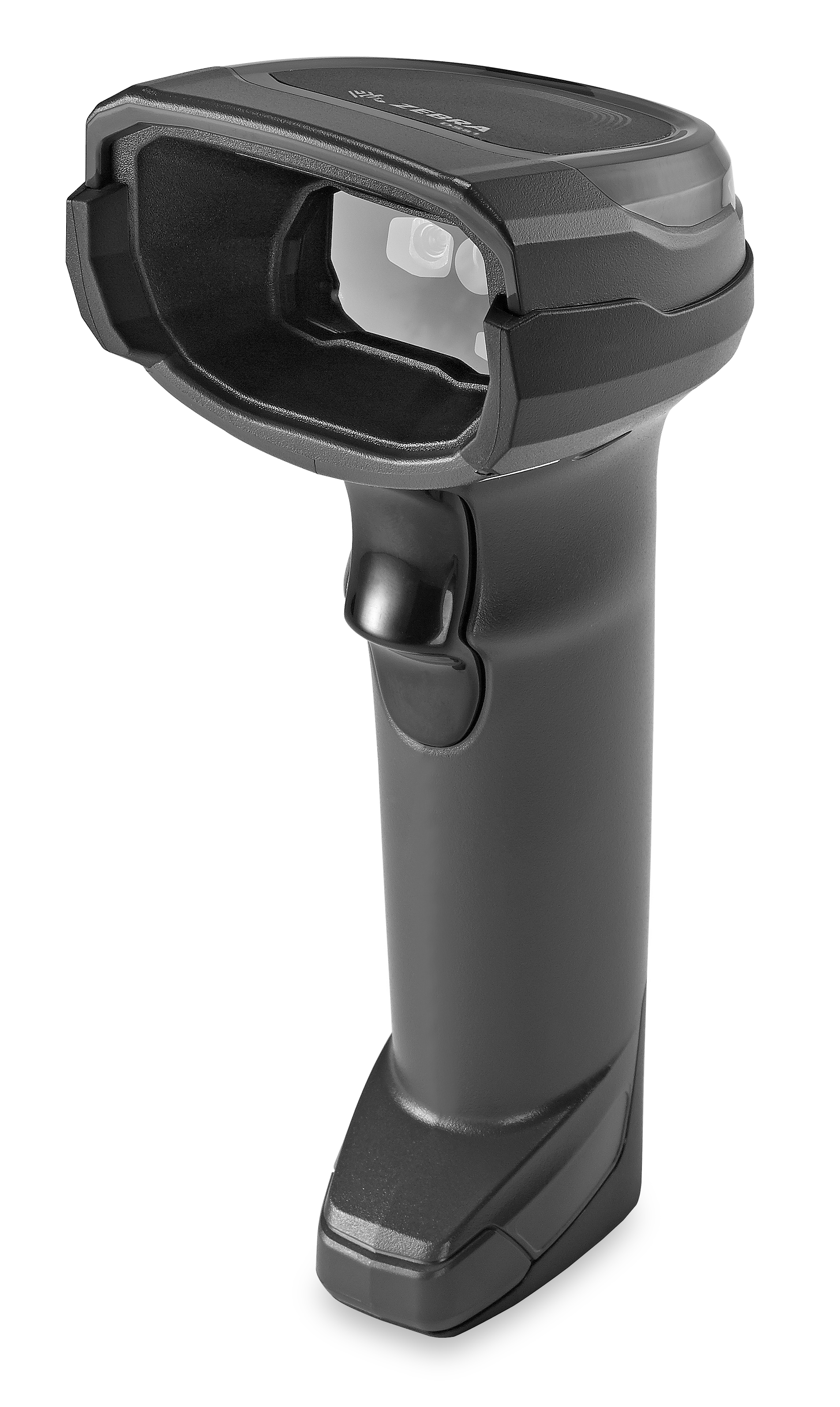

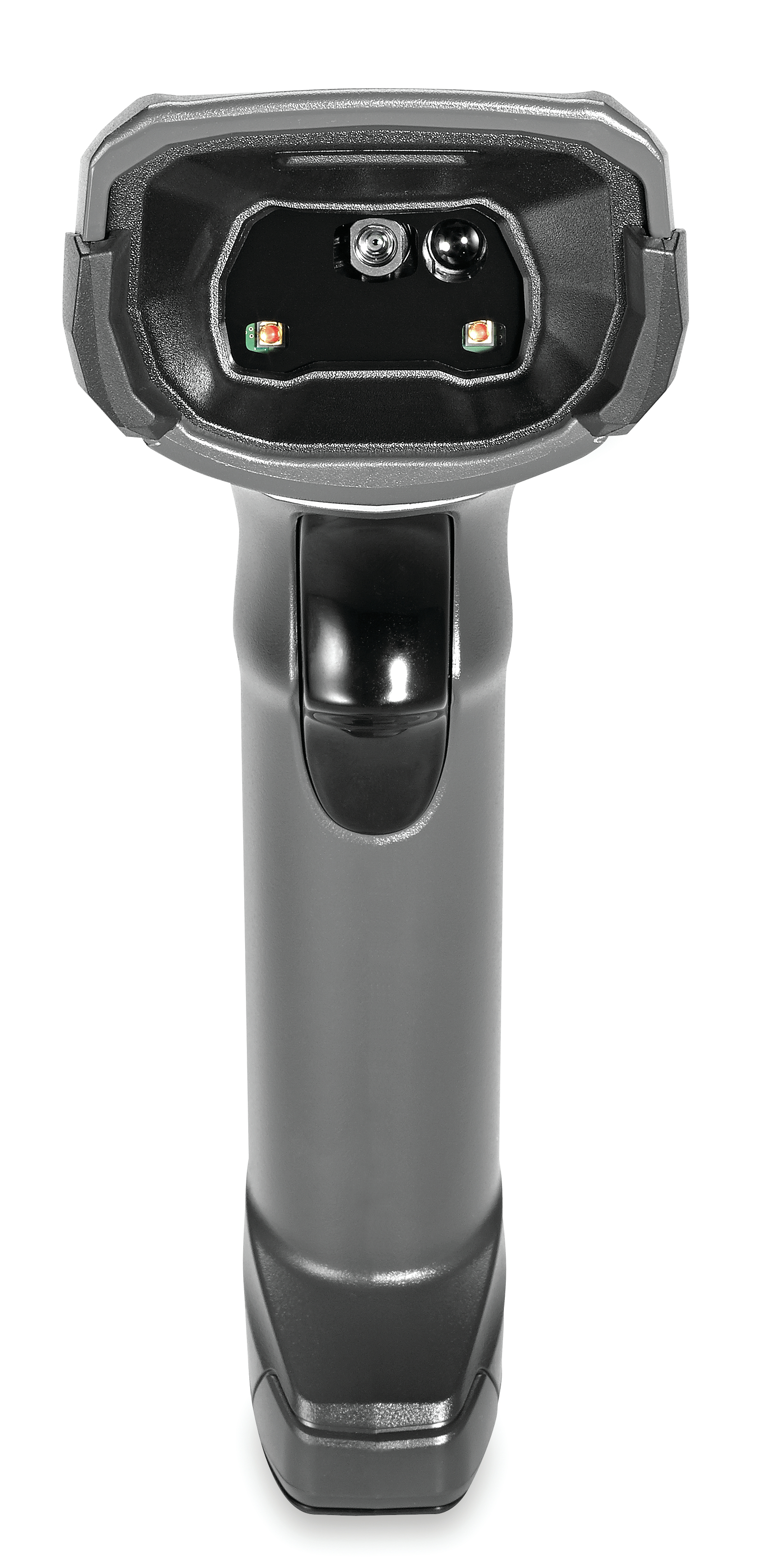

DS8178-SR Handheld bar code reader 1D/2D Photo diode Black
Model DS8178-SRPart no. DS8178-SRSF007ZZWWEAN 8596375197909
28 specifications
- Battery2500 mAh
- ConnectivityWired & Wireless
- TypeHandheld bar code reader
- Weight235.3 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 2500 mAh
- Connectivity
- Wired & Wireless
- Type
- Handheld bar code reader
- Weight
- 235.3 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS8178-SR
- Part numbers
- DS8178-SRSF007ZZWW, DS8178-SR0F007ZZWW, DS8178-7U21PC-HP, DS8178-SR7U210SPFW, DS8178-SR7U210SSFW
- EAN / UPC
- 8596375197909, 000090142321, 003746527138, 024606620929 +3 more
- Also known as
- Zebra DS8178-SR Handheld bar code reader 1D/2D Photo diode Black
Specifications
28 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Photo diode |
| Working distance | 61 cm |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Optical sensor resolution | 1280 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | USB, RS-232, Bluetooth |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| PC connection | RS-232/USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP42 |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery life | 83 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235.3 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
