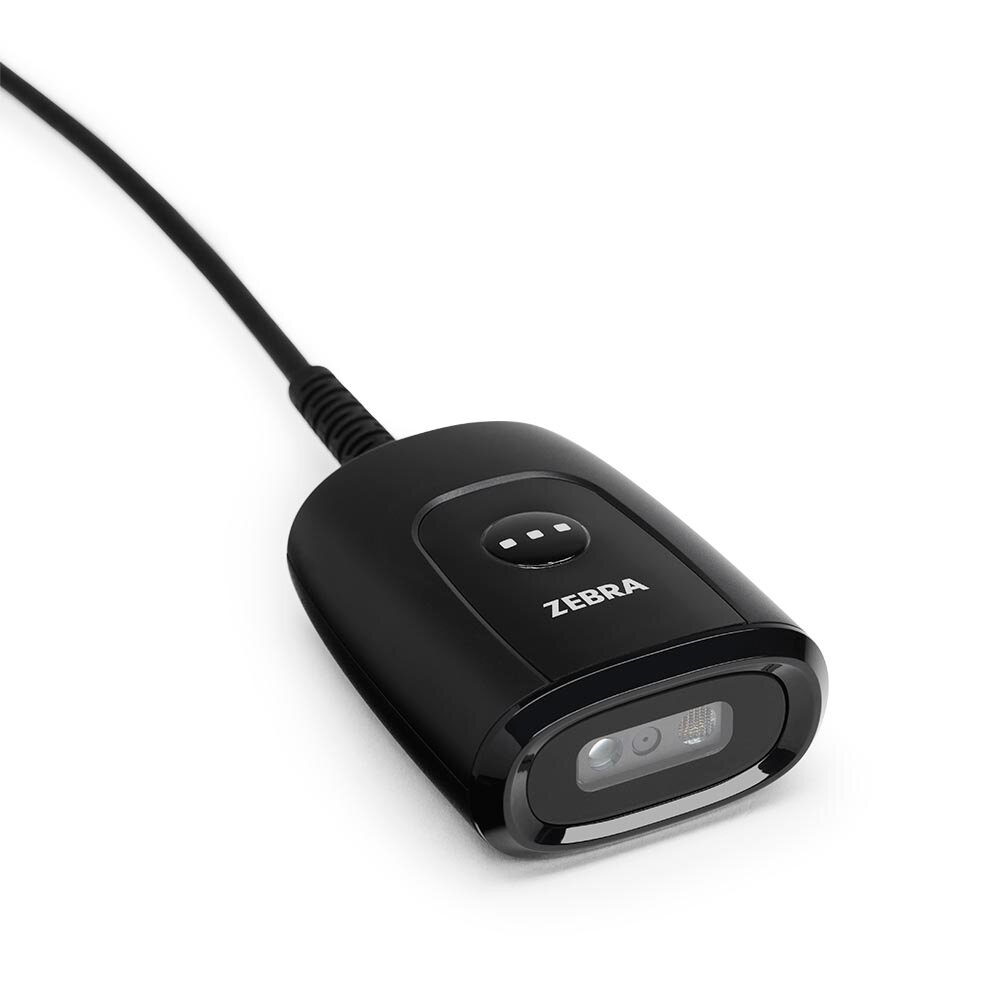

DS5502-SR Fixed bar code reader 1D/2D LED Black
Model DS5502-SRPart no. DS5502-SR4US70MMZW
27 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight65.2 g
- ColourBlack
- Power source typeDC
- Width72 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 65.2 g
- Colour
- Black
- Power source type
- DC
- Width
- 72 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS5502-SR
- Part number
- DS5502-SR4US70MMZW
- Also known as
- Zebra DS5502-SR Fixed bar code reader 1D/2D LED Black
Specifications
27 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar, MSI-Plessey, PDF417, U.P.C. |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 30° |
| Wavelength | 525 nm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Protection features | Electrostatic Discharge (ESD) protection |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 4.75 V |
| Power consumption | 360 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 30 mm |
| Height | 56 mm |
| Weight | 65.2 g |
Packaging data
| Specification | Value |
|---|---|
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | China RoHS, REACH, RoHS |
