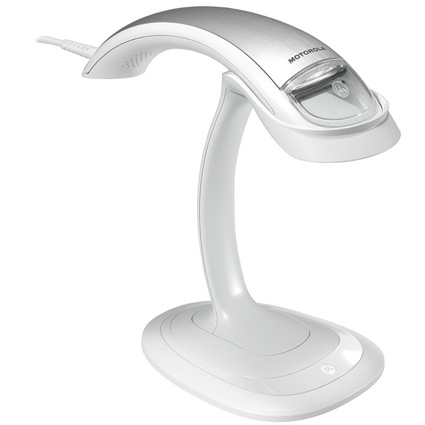

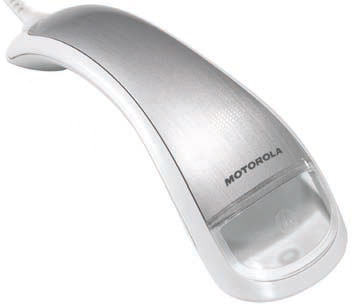

Motorola DS4801-SRWU0000SGW barcode reader Handheld bar code reader 1D/2D White
Model DS4801-SRWU0000SGWEAN 5712505118726
24 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight168 g
- ColourWhite
- Power source typeUSB
- Width66 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 168 g
- Colour
- White
- Power source type
- USB
- Width
- 66 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS4801-SRWU0000SGW
- Part number
- DS4801-SRWU0000SGW
- EAN / UPC
- 5712505118726
- Also known as
- Motorola DS4801-SRWU0000SGW barcode reader Handheld bar code reader 1D/2D White
Specifications
24 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 640 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 82° |
| Yaw reading angle | 0 - 86° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Cable length | 1.5 m |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Certification | FCC, ICES, EN, UL, IEC |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 360 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 190 mm |
| Height | 48 mm |
| Weight | 168 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
