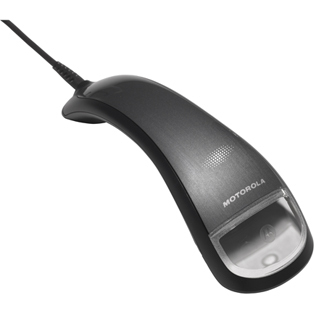

Zebra Motorola DS4801 Handheld bar code reader 1D/2D Black

Zebra Motorola DS4801 Handheld bar code reader 1D/2D Black

Model DS4801Part no. DS4801-SR00004ZZEUEAN 4016138960907

27 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight168 g
  • ColourBlack
  • Power source typeUSB
  • Width66 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
168 g
Colour
Black
Power source type
USB
Width
66 mm
Brand
Zebra
Model
DS4801
Part numbers
DS4801-SR00004ZZEU, DS4801-SRWU0000SGE, DS4801-SR0000WZZEU, DS4801-SR0000WZZWW, DS4801-DL4U0000SGW, DS4801-DLWU0000SGW +4 more
EAN / UPC
4016138960907, 5052184319381, 8596375046382, 4016138960914 +3 more
Also known as
Motorola DS4801 Handheld bar code reader 1D/2D Black

Specifications

27 specifications in 8 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCode 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN, Trioptic
Light levels (direct sunlight)0 - 108000 lx
Wavelength640 nm
Tilt reading angle0 - 360°
Pitch reading angle0 - 82°
Yaw reading angle0 - 86°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.5 m

Performance

Product colourBlack
International Protection (IP) codeIP40
CertificationFCC, ICES, EN, UL, IEC

Power

Power source typeUSB
Input voltage5 V
Power consumption360 mA

Weight & dimensions

Width66 mm
Depth190 mm
Height48 mm
Weight168 g

Packaging data

Cables includedUSB

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C

Technical details

Compliance certificatesRoHS
