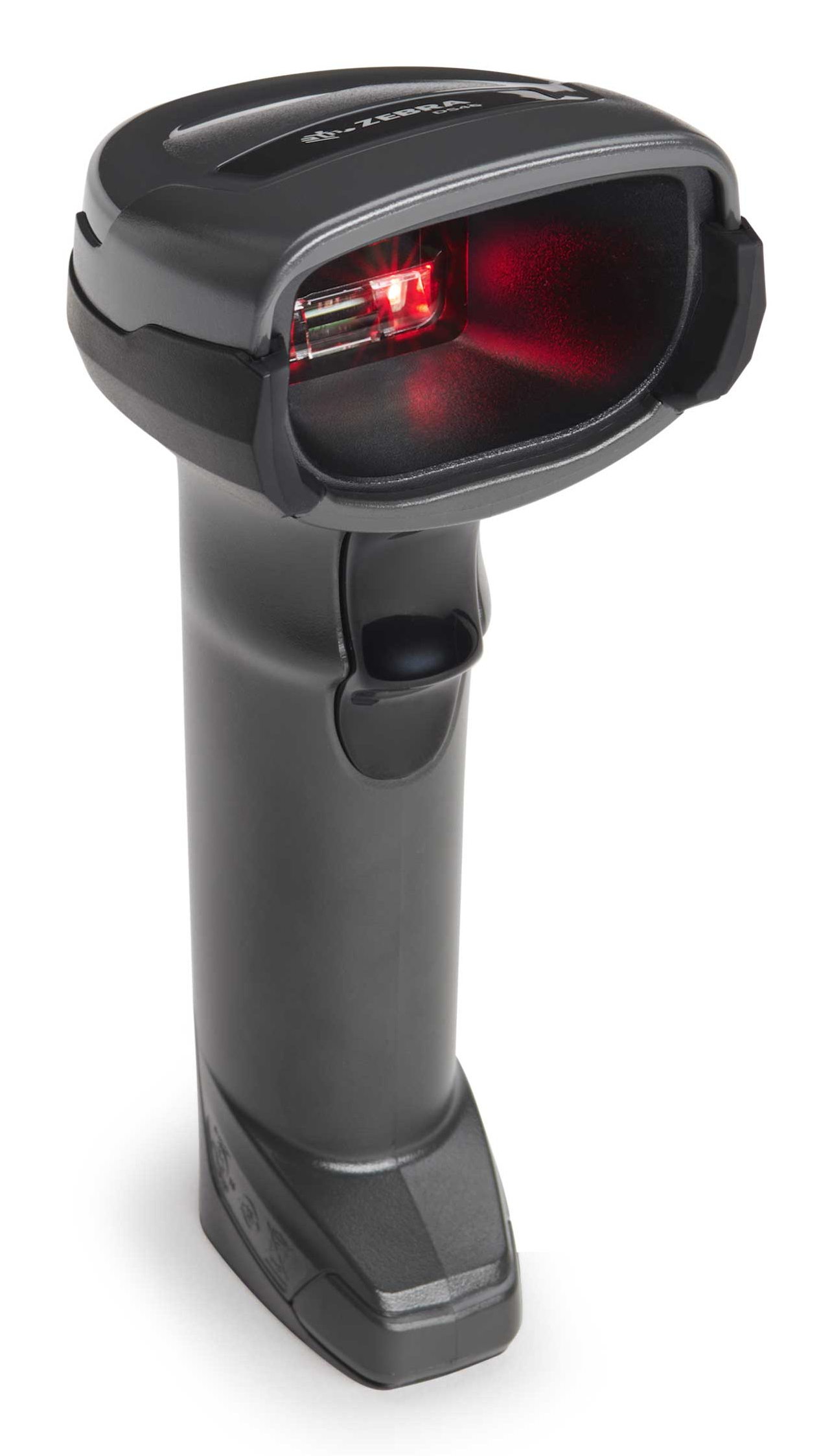

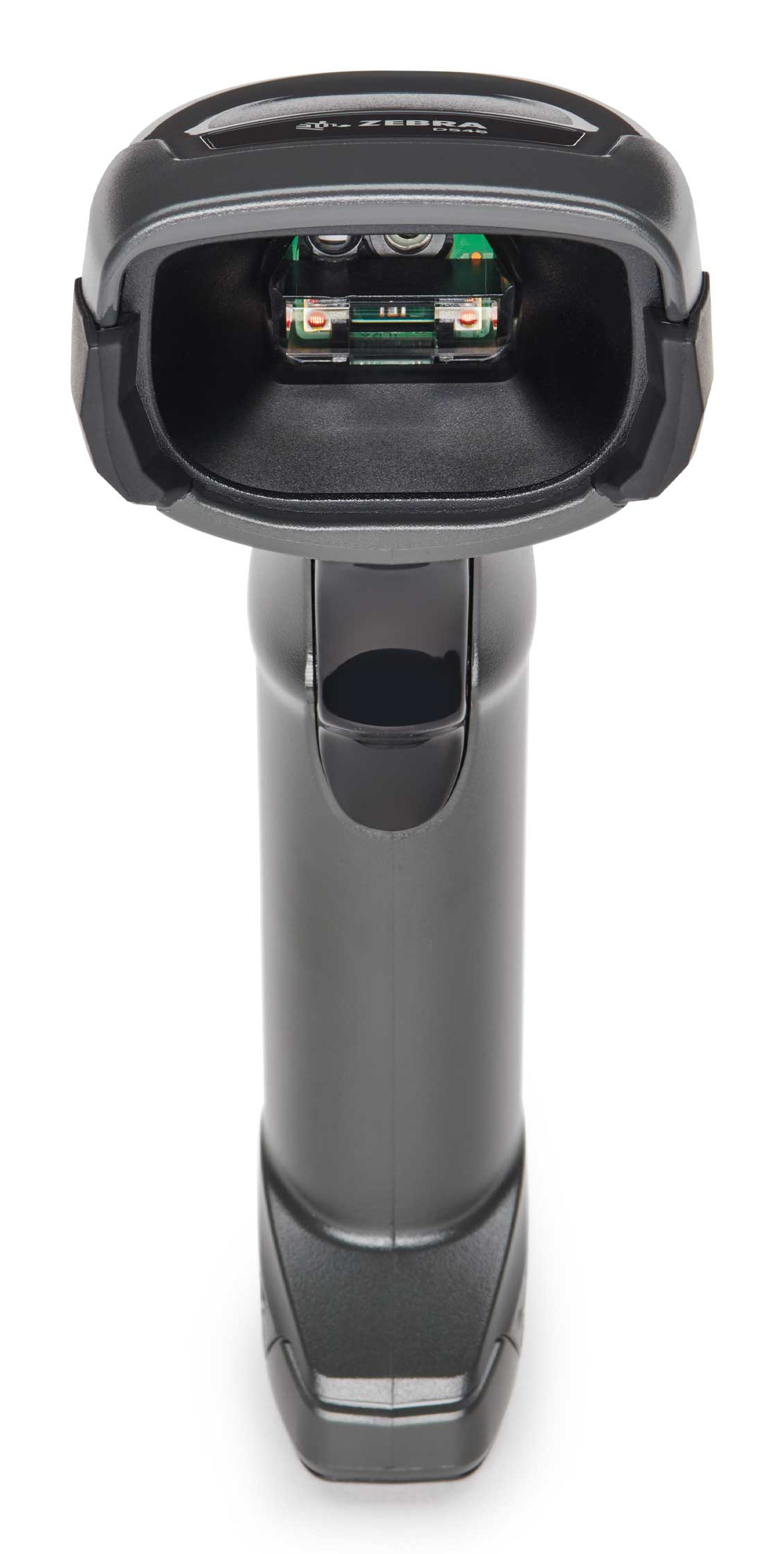

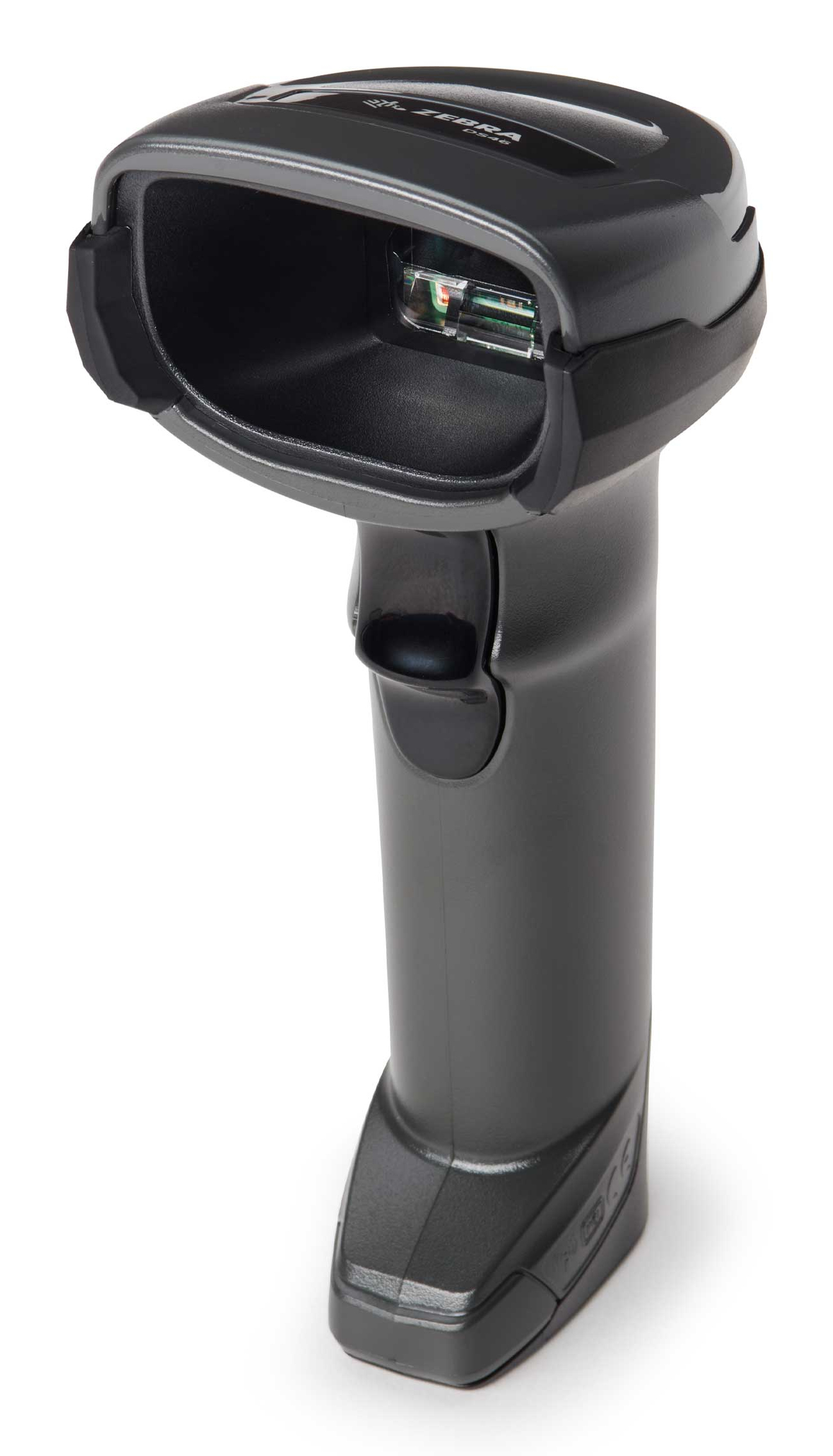

DS4678 Handheld Scanner
Model DS4678-SR00007ZZWWEAN 4805388883759
40 specifications
- Battery2500 mAh
- ConnectivityWireless
- TypeHandheld bar code reader
- Weight225 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 2500 mAh
- Connectivity
- Wireless
- Type
- Handheld bar code reader
- Weight
- 225 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS4678-SR00007ZZWW
- Part number
- DS4678-SR00007ZZWW
- EAN / UPC
- 4805388883759
- Also known as
- Zebra DS4678 Handheld Scanner
Specifications
40 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 31.6° |
| Vertical field of view | 22.6° |
| Light levels (direct sunlight) | 0 - 107000 lx |
| Wavelength | 660 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.2 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Vibration function | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Number of reads per charge | 50000 |
| Charging time | 2.25 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 225 g |
Operational conditions
| Specification | Value |
|---|---|
| Drop resistance | 1.8 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Warranty period | 3 year(s) |
