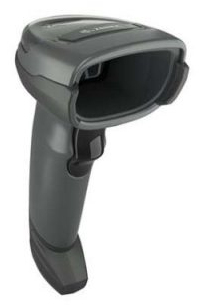

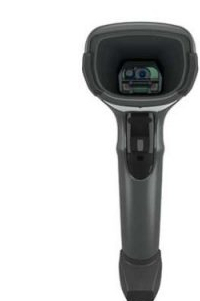

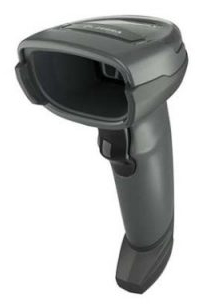

Zebra DS4608-DL Handheld bar code reader 1D/2D LED Black
Zebra

DS4608-DL Handheld bar code reader 1D/2D LED Black

Model DS4608-DLPart no. DS4608-DL00007ZZWWEAN 8596375197596

26 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight161.9 g
  • ColourBlack
  • Power source typeDC
  • Width67 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
161.9 g
Colour
Black
Power source type
DC
Width
67 mm
Brand
Zebra
Model
DS4608-DL
Part number
DS4608-DL00007ZZWW
EAN / UPC
8596375197596
Also known as
Zebra DS4608-DL Handheld bar code reader 1D/2D LED Black

Specifications

26 specifications in 7 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCodabar, Codabar 125, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Industrial 2 of 5, MSI, Plessey
Sensor typeLED
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength660 nm
Pitch reading angle-60 - 60°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Product colourBlack
International Protection (IP) codeIP52
LED indicatorsYes
Certification2011/65/EU, EN 50581:2012, EN IEC 63000:2018 UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 IEC 62471:2006 (Ed.1.0); EN 62471:2008 FCC: 47 CFR 15, B, B ICES-003 6, B, EN 55032, B, EN 55024, EN 55035, EN 60601-1-2:2015, I

Power

Power source typeDC
Input voltage4.5-5.5 V
Power consumption340 mA

Weight & dimensions

Width67 mm
Depth98 mm
Height165 mm
Weight161.9 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 70 °C

Logistics data

Harmonized System (HS) code84716070
