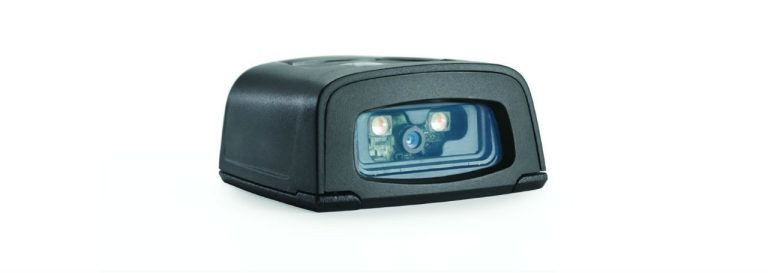

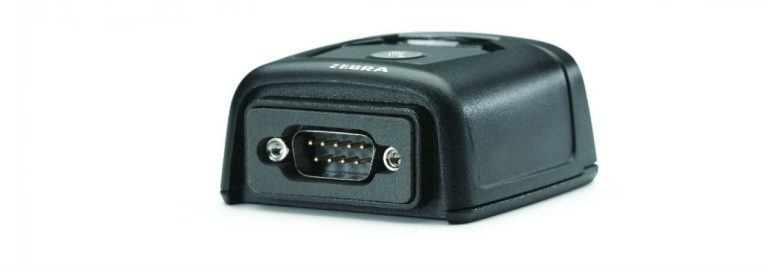

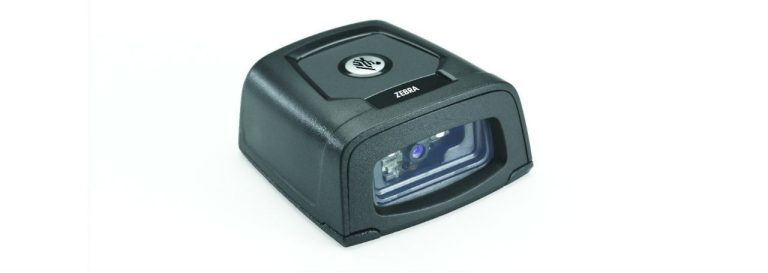

DS457-SR Fixed bar code reader 1D/2D Photo diode Black
Model DS457-SRPart no. DS457-SR4U6S02AZWEAN 8596375237063
25 specifications
- ConnectivityWired
- TypeFixed bar code reader
- Weight111 g
- ColourBlack
- Power source typeUSB, RS-232
- Width62 mm
Overview
- Connectivity
- Wired
- Type
- Fixed bar code reader
- Weight
- 111 g
- Colour
- Black
- Power source type
- USB, RS-232
- Width
- 62 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS457-SR
- Part number
- DS457-SR4U6S02AZW
- EAN / UPC
- 8596375237063
- Also known as
- Zebra DS457-SR Fixed bar code reader 1D/2D Photo diode Black
Specifications
25 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Composite Codes, Aztec Code, Data Matrix, PDF417, QR Code, MaxiCode |
| Linear (1D) barcodes supported | Code 39, U.P.C., UPC-A, Planet, UPC-E, POSTNET |
| Sensor type | Photo diode |
| Optical sensor resolution (W x H) | 752 x 480 pixels |
| Light levels (direct sunlight) | 0 - 96900 lx |
| Wavelength | 655 nm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Built-in processor | Yes |
| Processor frequency | 624 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | USB, RS-232 |
| Input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 58.4 mm |
| Height | 29.2 mm |
| Weight | 111 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
