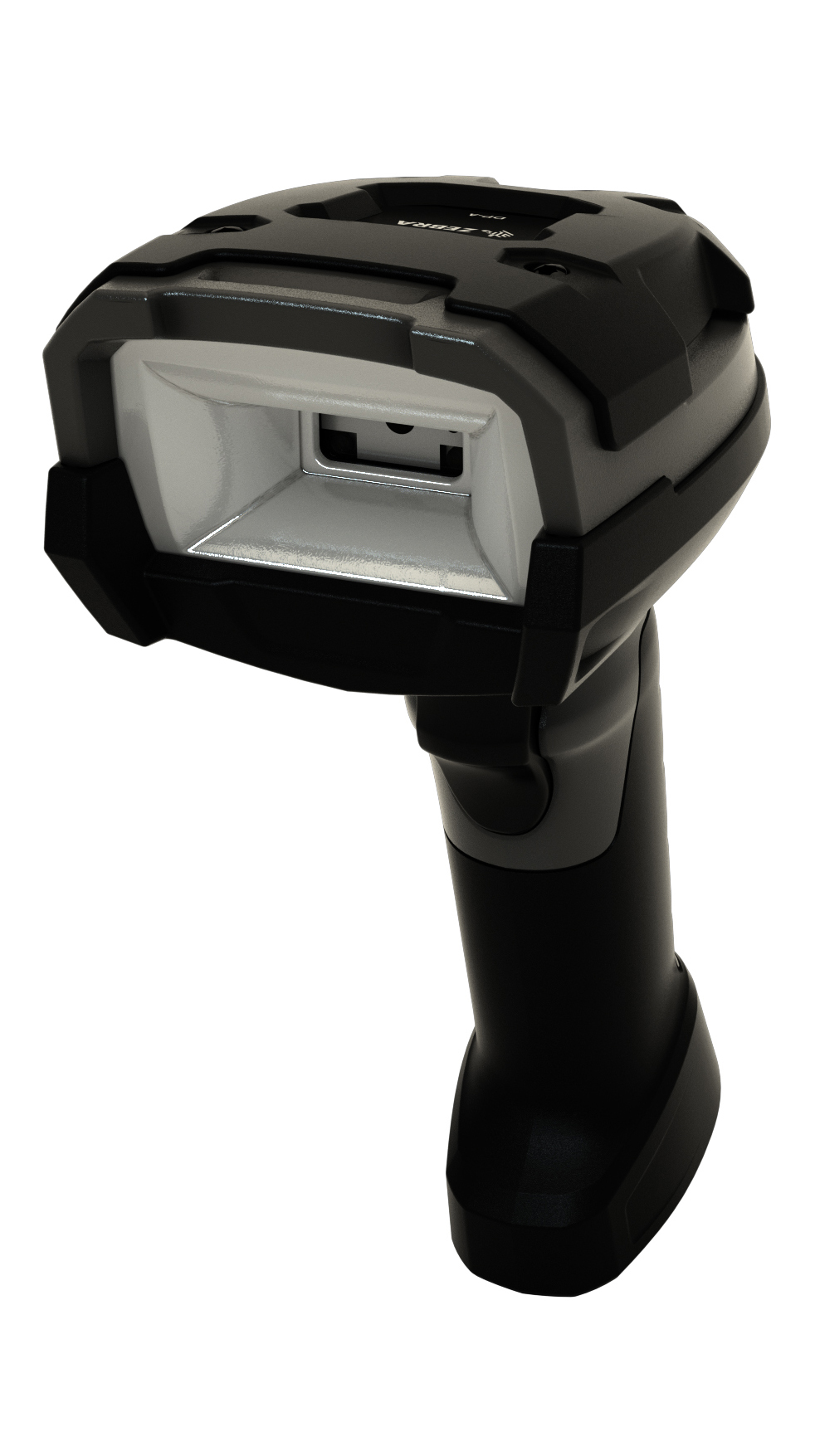

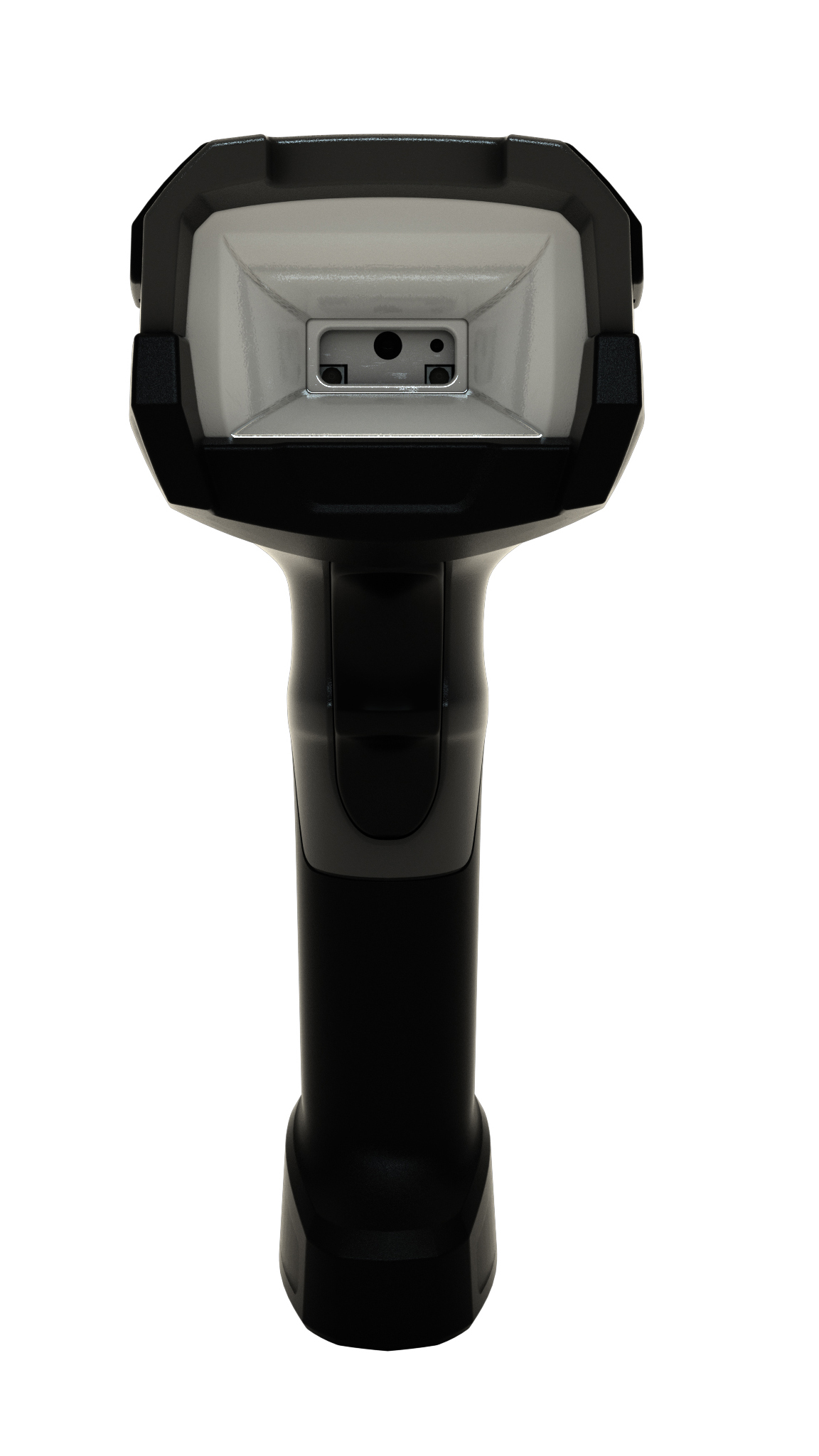

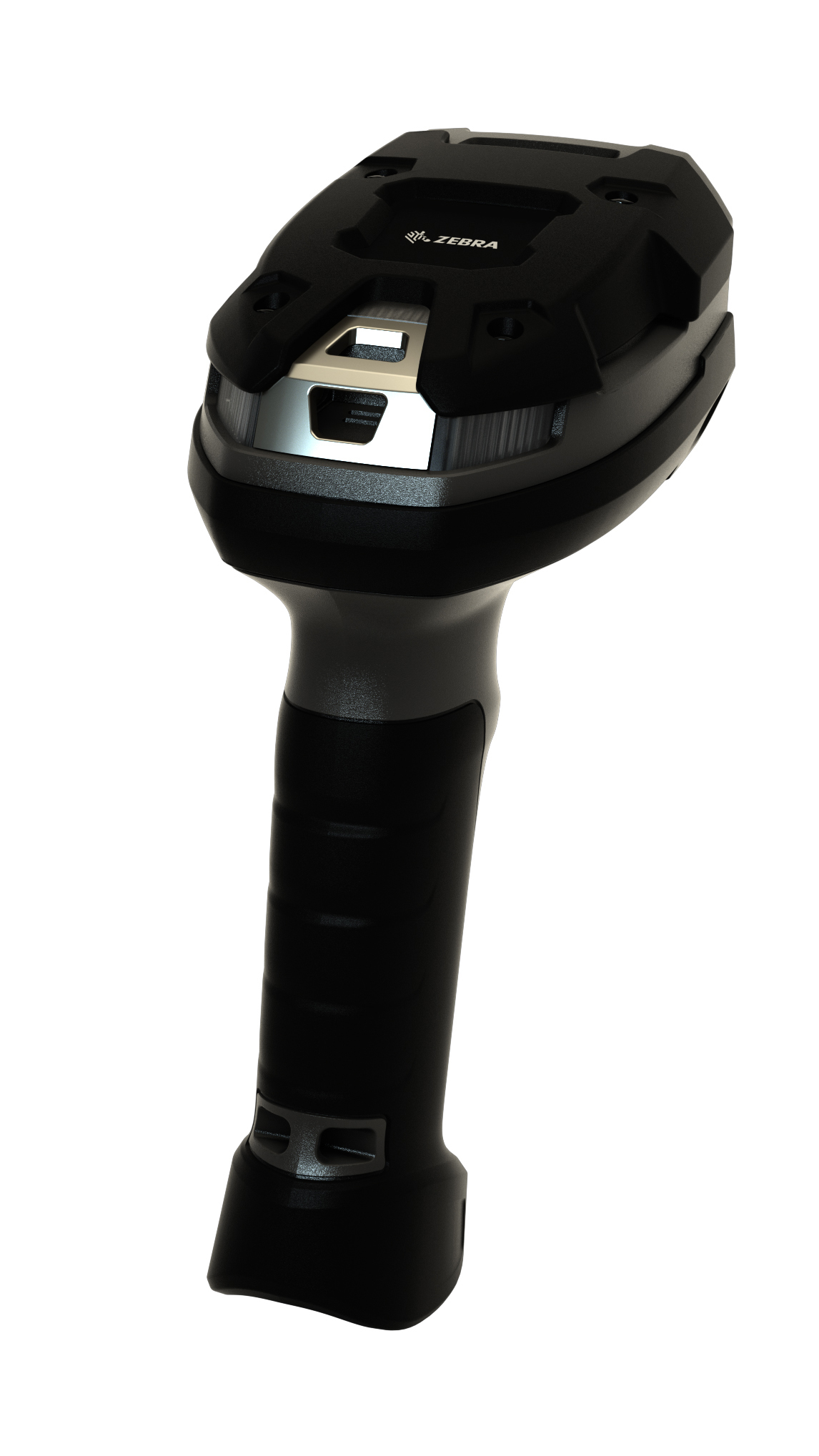

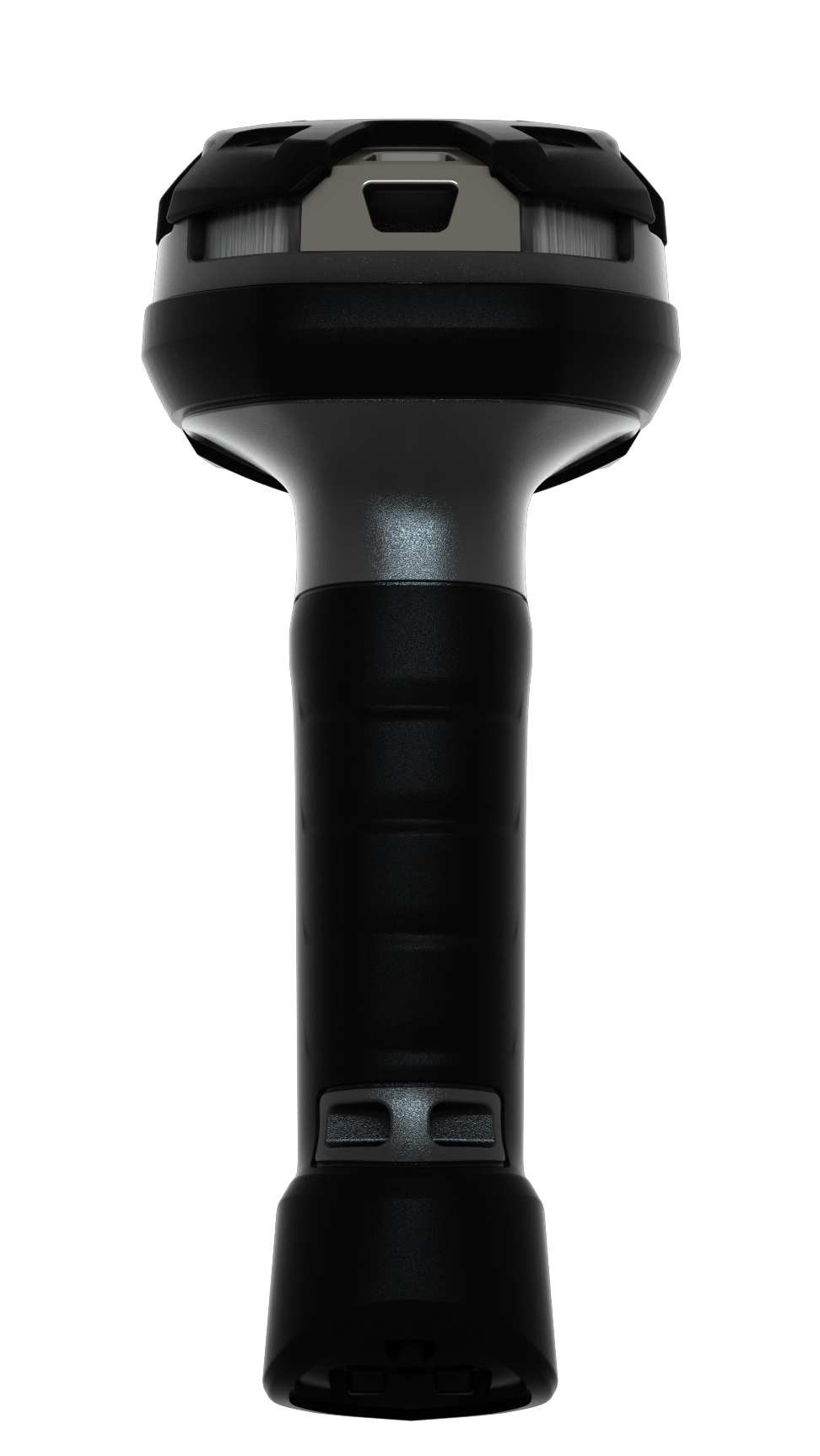

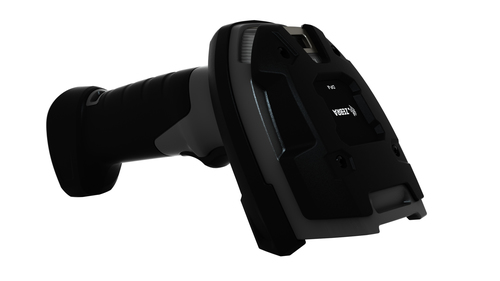

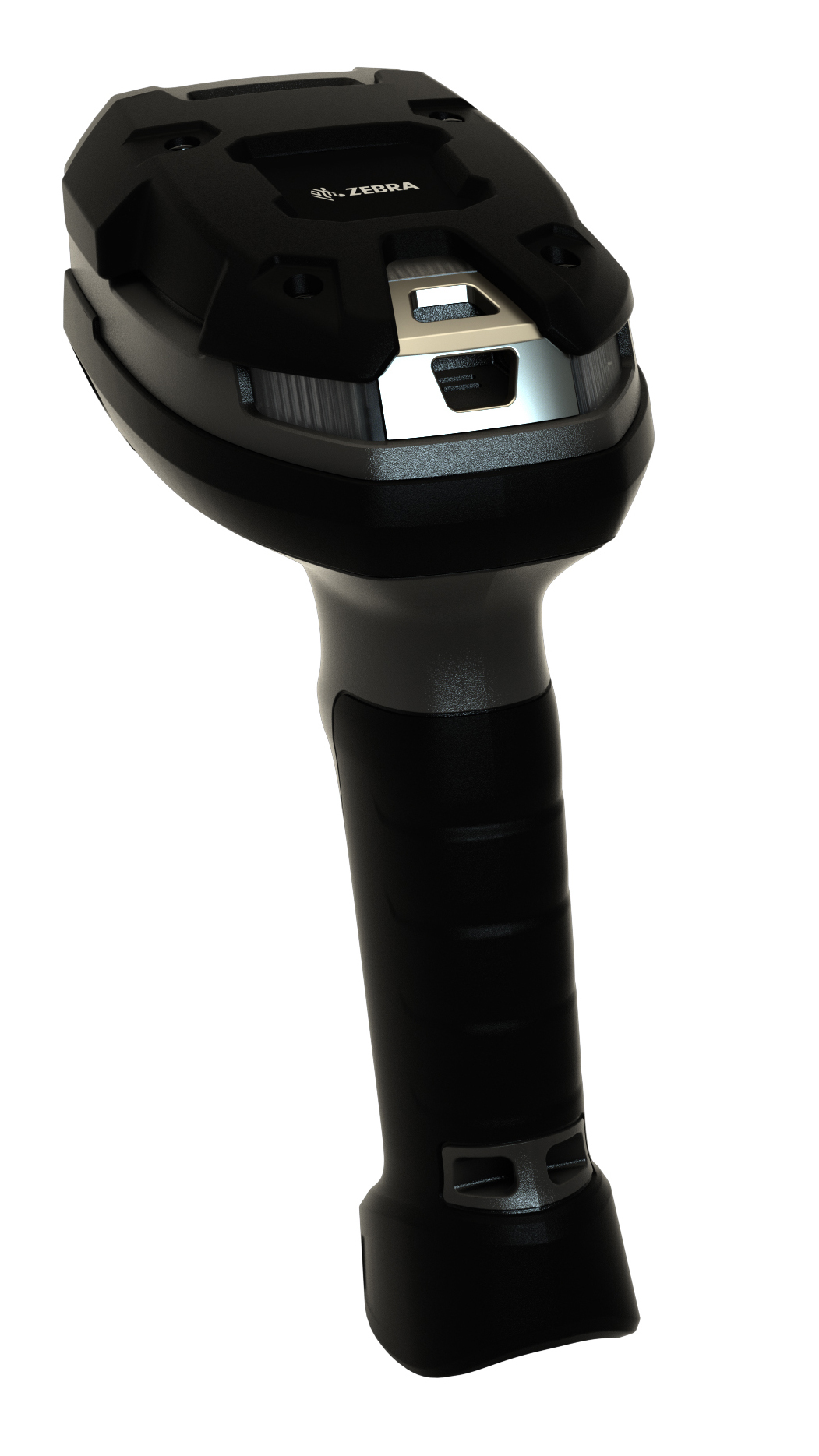

DS3608-DPA Handheld bar code reader 1D/2D Laser Black, Grey
Model DS3608-DPAPart no. DS3608-DPA0002VZWWEAN 8596375197503
28 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight304 g
- ColourBlack, Grey
- Power source typeRS-232, USB
- Width77 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 304 g
- Colour
- Black, Grey
- Power source type
- RS-232, USB
- Width
- 77 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS3608-DPA
- Part number
- DS3608-DPA0002VZWW
- EAN / UPC
- 8596375197503
- Also known as
- Zebra DS3608-DPA Handheld bar code reader 1D/2D Laser Black, Grey
Specifications
28 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E |
| Sensor type | Laser |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 655 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 65° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Buzzer | Yes |
| Certification | RoHS EN 50581: 2012 |
Power
| Specification | Value |
|---|---|
| Power source type | RS-232, USB |
| Input voltage | 4.5 - 5.5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 77 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 304 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
