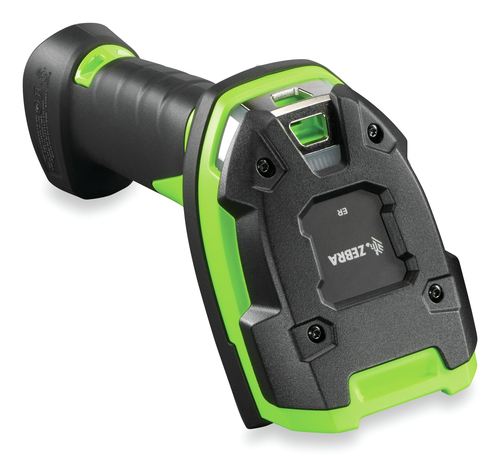

DS3608-DL Handheld bar code reader 1D/2D Laser Black, Green
Model DS3608-DLPart no. DS3608-DL00003VZWWEAN 5715063717110
32 specifications
- Battery3100 mAh
- ConnectivityWired
- TypeHandheld bar code reader
- Weight334 g
- ColourBlack, Green
- Power source typeBattery
Overview
- Battery
- 3100 mAh
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 334 g
- Colour
- Black, Green
- Power source type
- Battery
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS3608-DL
- Part number
- DS3608-DL00003VZWW
- EAN / UPC
- 5715063717110
- Also known as
- Zebra DS3608-DL Handheld bar code reader 1D/2D Laser Black, Green
Specifications
32 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Sensor type | Laser |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Optical sensor resolution | 1280 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Ethernet LAN | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Programming function | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Number of reads per charge | 70000 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 334 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
