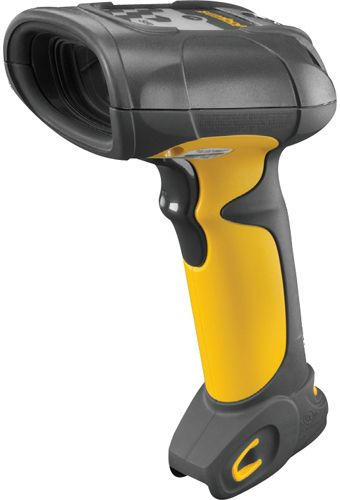

Motorola DS3578 2D Black, Yellow
Model DS3578Part no. DS3578-ERFU2100IREAN 5711045965302
23 specifications
- Battery2200 mAh
- Weight414 g
- ColourBlack, Yellow
- Scanner type2D
- BluetoothYes
- Input voltage5 V
Overview
- Battery
- 2200 mAh
- Weight
- 414 g
- Colour
- Black, Yellow
- Scanner type
- 2D
- Bluetooth
- Yes
- Input voltage
- 5 V
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- DS3578
- Part numbers
- DS3578-ERFU2100IR, DS3578-SRBU0100IR, DS3578-HDBU0100IR, DS3578-DP2F005WR, DS3578-SRBU0100UR, DS3578-SR2F005WR +6 more
- EAN / UPC
- 5711045965302, 4054318744176, 5712505002735, 3609740038846 +19 more
- Also known as
- Motorola DS3578 2D Black, Yellow
Specifications
23 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Scanner type | 2D |
| Wavelength | 650 nm |
| Tilt reading angle | -360 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Decoding standards | 1D/2D/PDF417 |
| Optical sensor resolution | 640 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RS-485, USB, Keyboard wedge, RS-232 |
| Bluetooth | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| International Protection (IP) code | IP65 |
| Built-in processor | Yes |
| Processor frequency | 624 MHz |
| Certification | FCC, VCCI |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 414 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2200 mAh |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 122.5 x 74.3 x 186.5 mm |
| Safety | UL60950-1, CSA C22.2 No. 60950-1, EN 60950-1 / IE C 60950-1, EN 60825-1, IE C 60825-1, 21CFR1040.10, CDRH Class II, IE C Class 2 |
