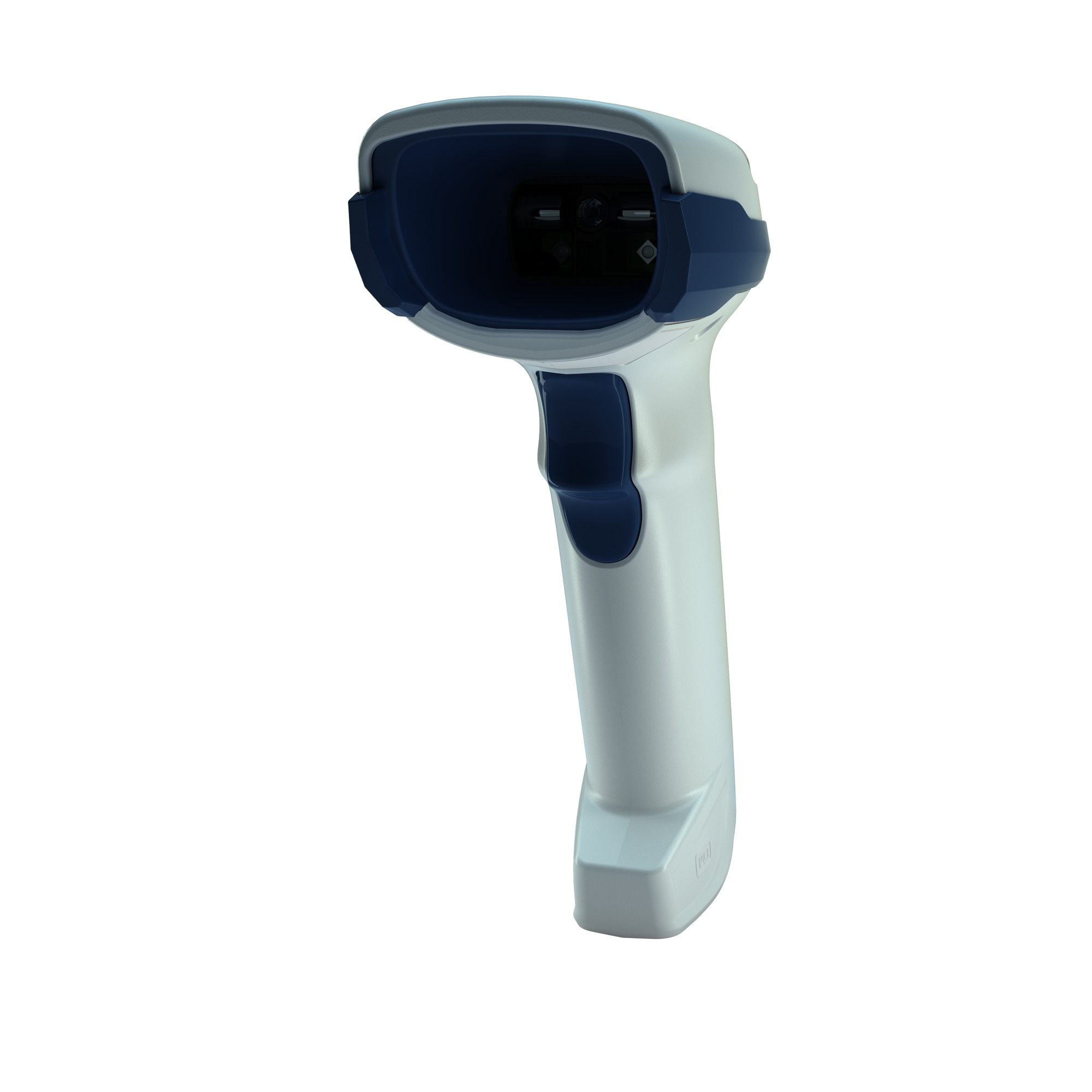

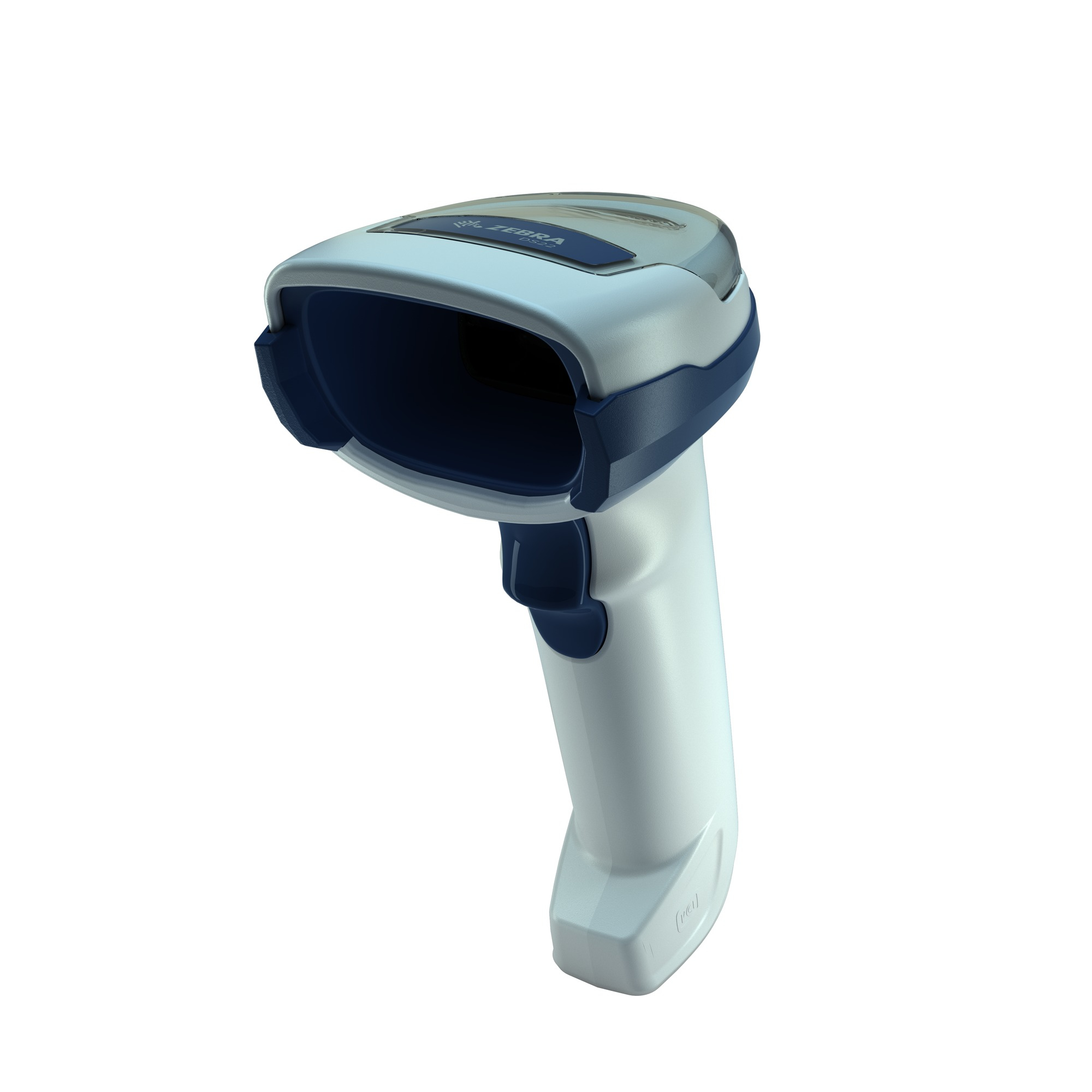

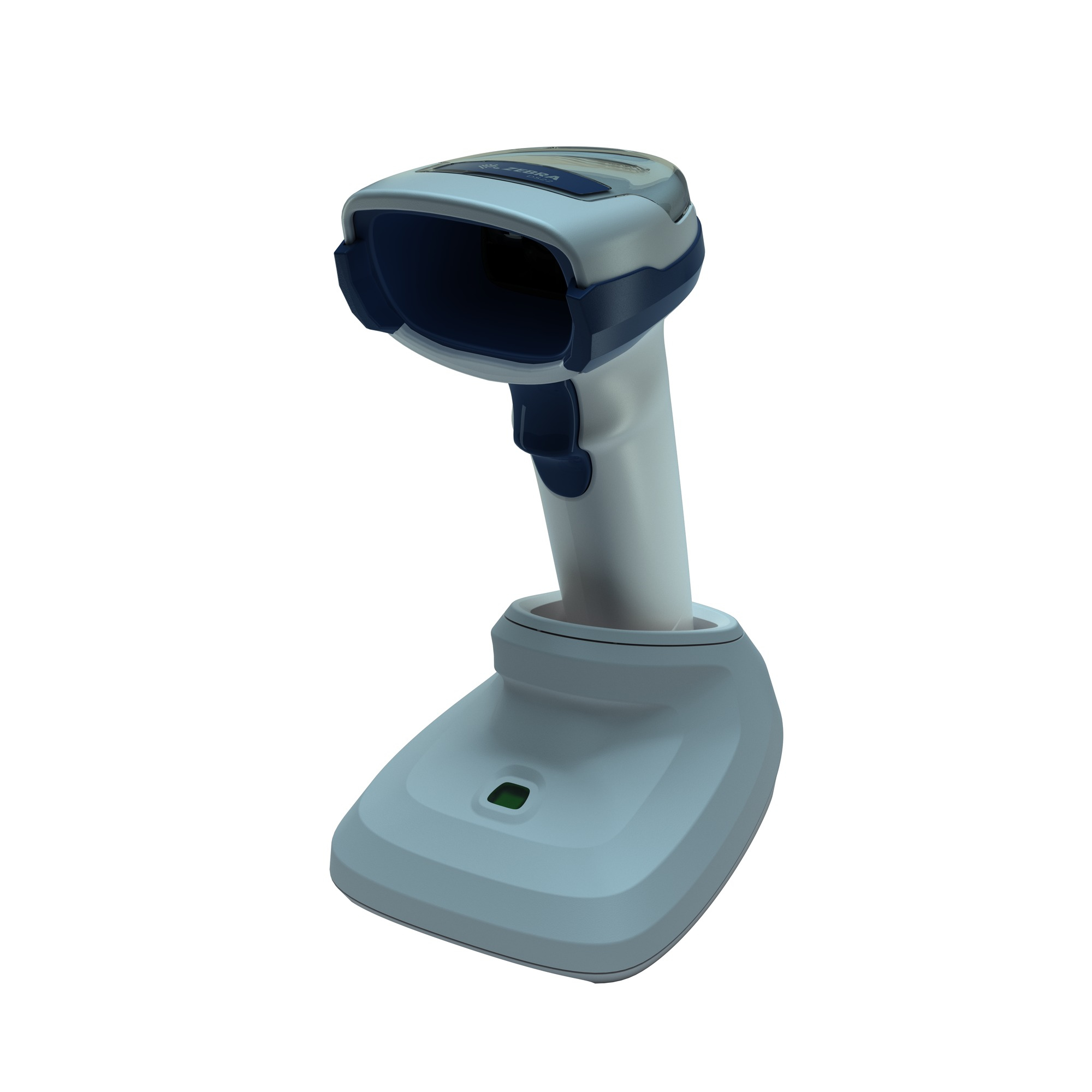

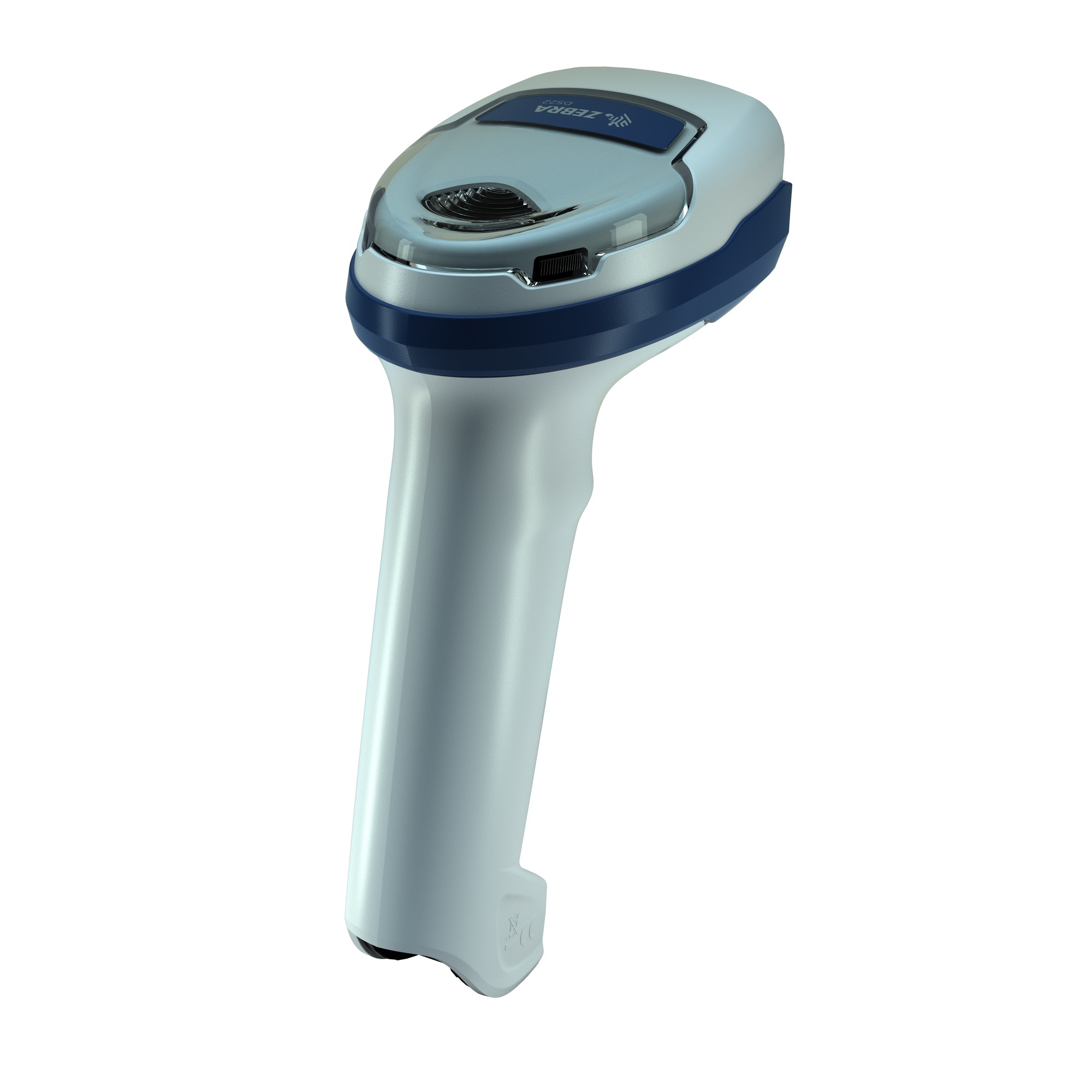

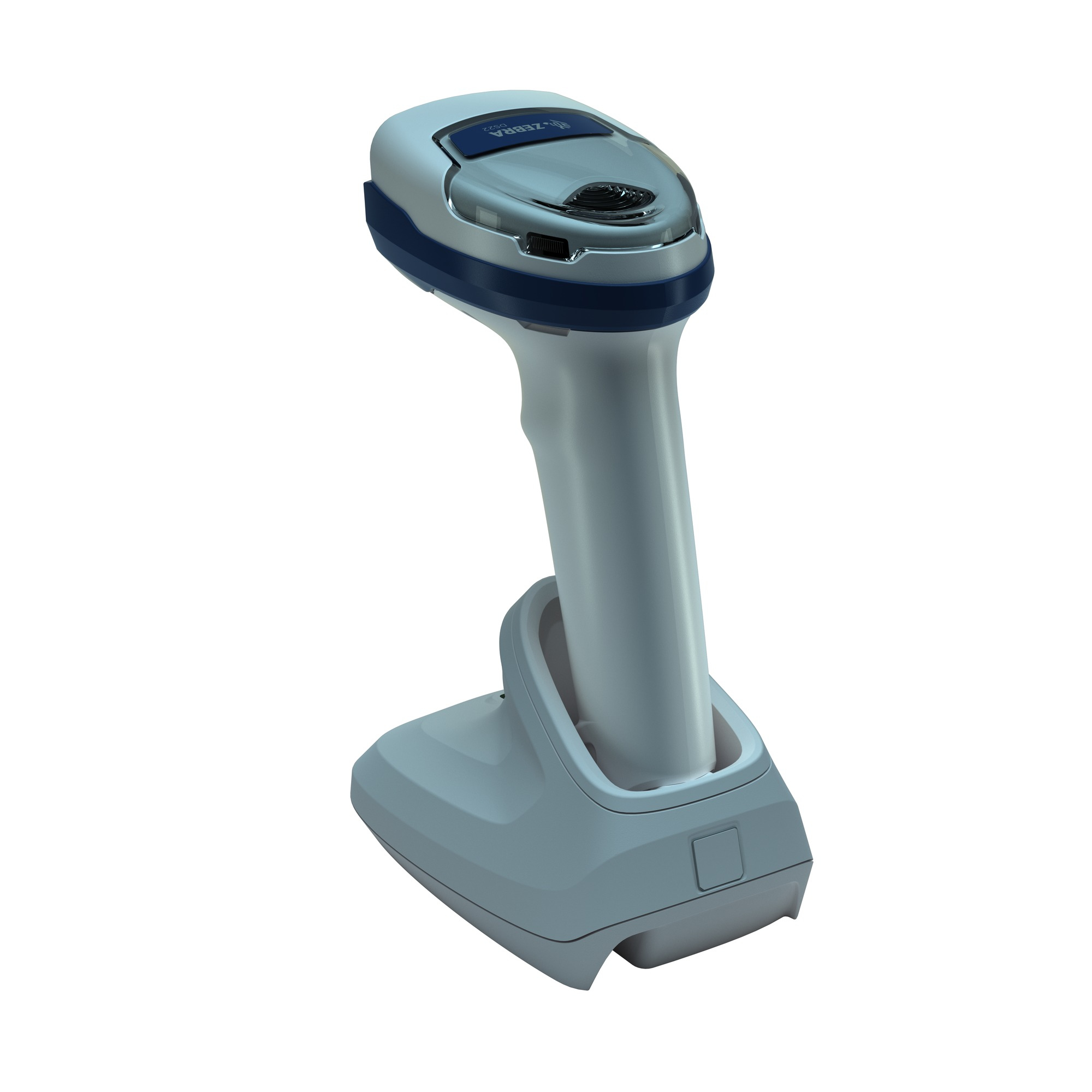

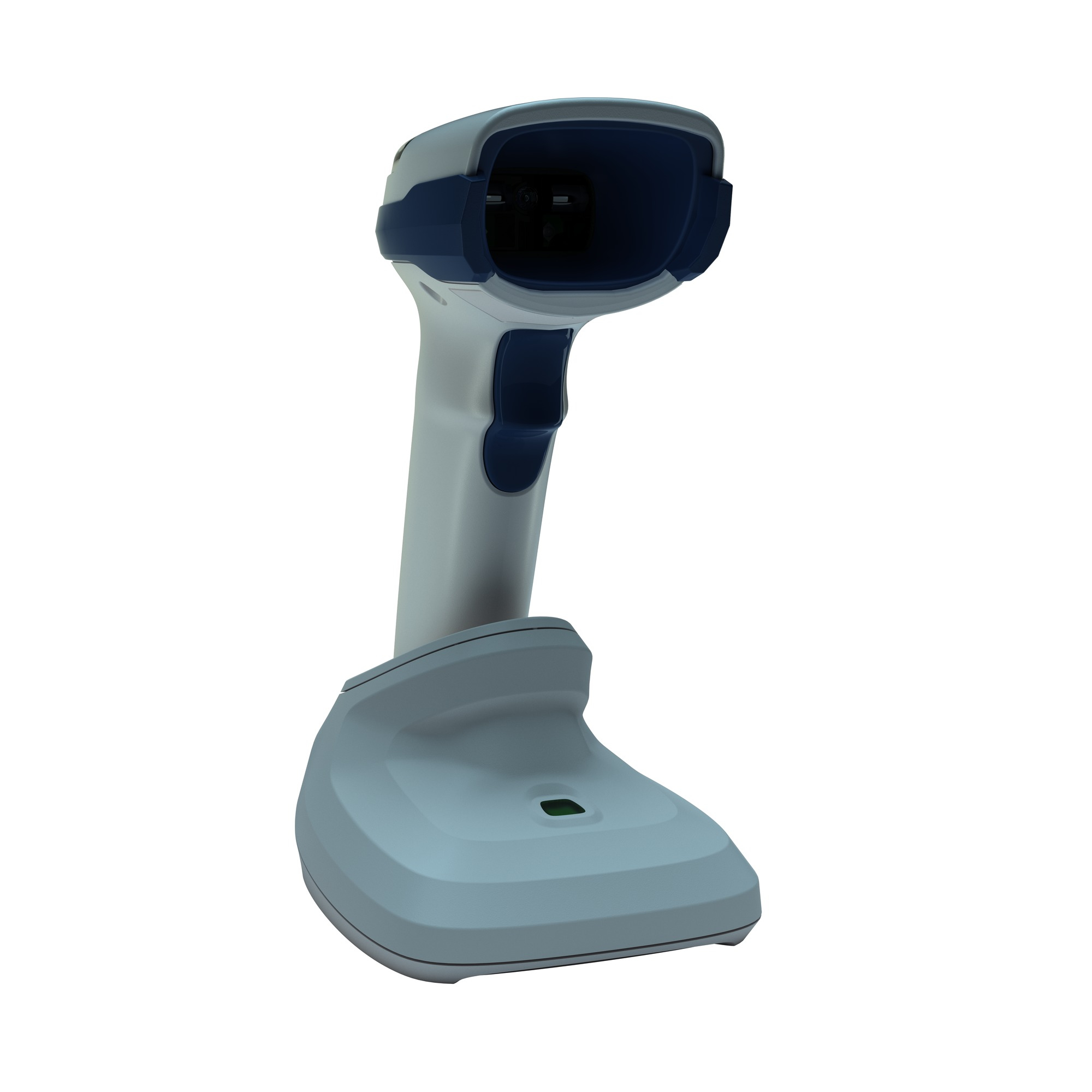

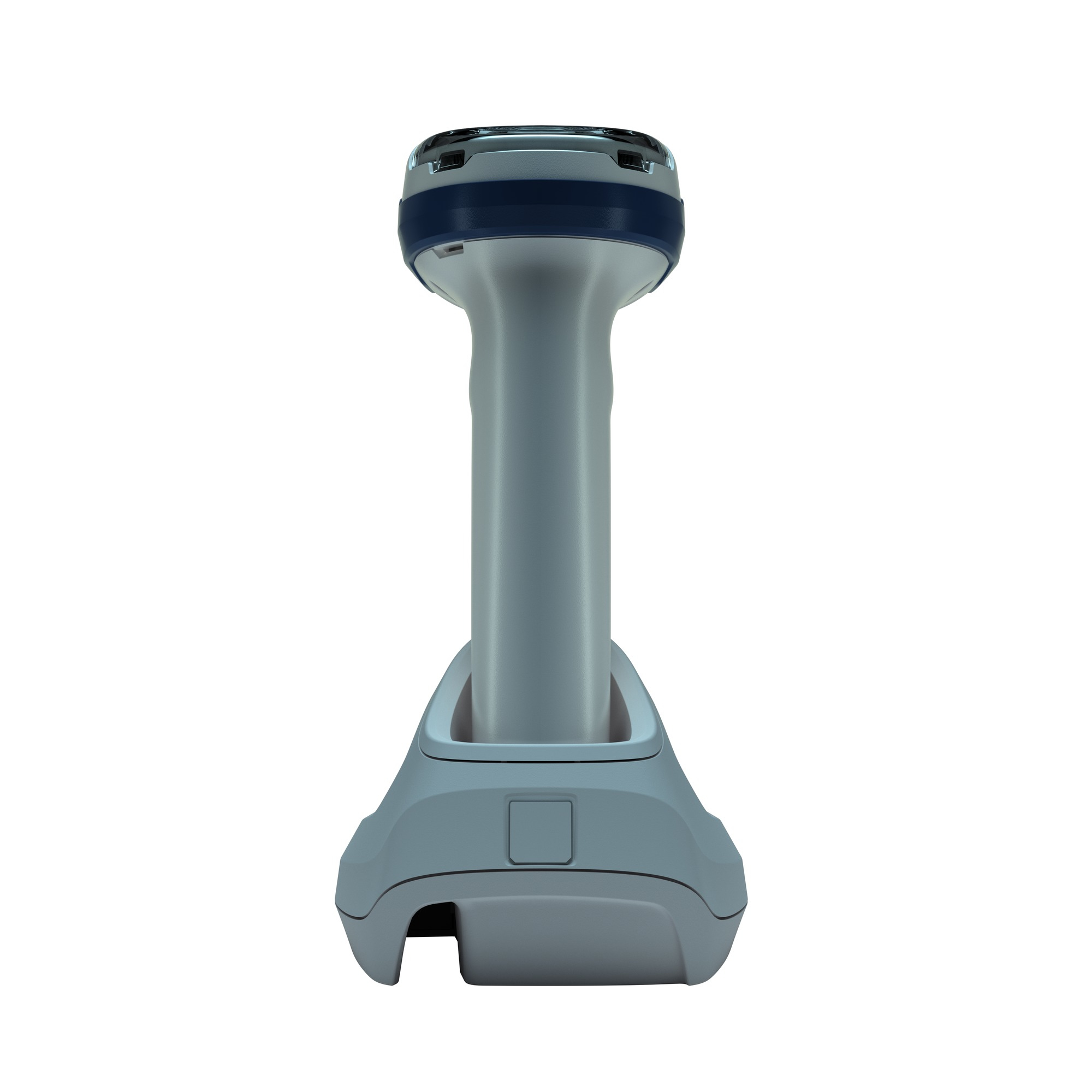

Zebra DS2278-HC Handheld bar code reader 1D/2D LED White
Zebra

DS2278-HC Handheld bar code reader 1D/2D LED White

Model DS2278-HCPart no. DS2278-HCBU2100PRREAN 5706998950420

35 specifications
  • Battery2400 mAh
  • ConnectivityWired & Wireless
  • TypeHandheld bar code reader
  • Weight214 g
  • ColourWhite
  • Power source typeBattery, DC
See all specifications

Overview

Battery
2400 mAh
Connectivity
Wired & Wireless
Type
Handheld bar code reader
Weight
214 g
Colour
White
Power source type
Battery, DC
Brand
Zebra
Model
DS2278-HC
Part number
DS2278-HCBU2100PRR
EAN / UPC
5706998950420, 9999999999994
Also known as
Zebra DS2278-HC Handheld bar code reader 1D/2D LED White

Specifications

35 specifications in 10 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
Sensor typeLED
Optical sensor resolution (W x H)640 x 480 pixels
Wavelength645 nm
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Motion tolerance (cm/s)13

Ports & interfaces

Connectivity technologyWired & Wireless
Standard interfacesBluetooth, USB
USB version2.0
Bluetooth Low Energy (BLE)Yes
Bluetooth version4.0

Performance

Product colourWhite
International Protection (IP) codeIP42
LED indicatorsYes
Built-in displayNo

Power

Power source typeBattery, DC
Number of batteries supported1
Battery life84 h
Input voltage4.5 - 5.5 V

Weight & dimensions

Width66 mm
Depth90 mm
Height175 mm
Weight214 g

Packaging data

Charging baseYes

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity2400 mAh

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84716070
