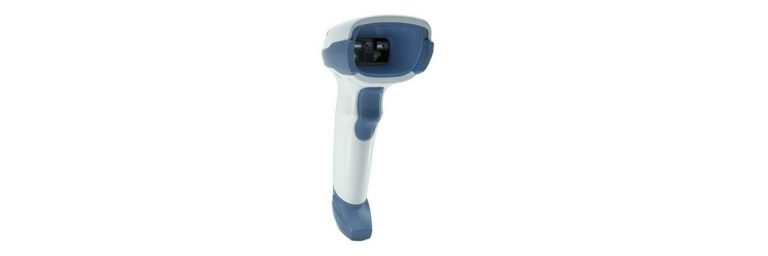

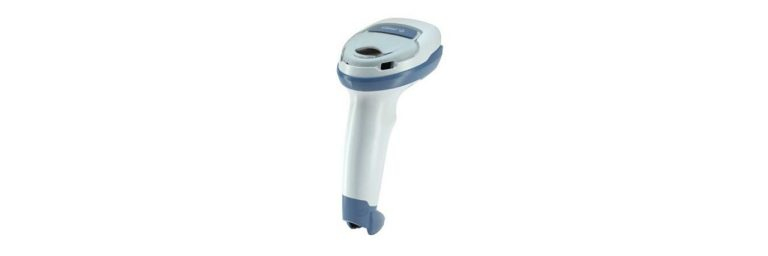

Zebra DS2208-HC Handheld bar code reader 1D/2D LED White
Zebra

DS2208-HC Handheld bar code reader 1D/2D LED White

Model DS2208-HCPart no. DS2208-HC0000BZZRWEAN 8596375197411

27 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight161.6 g
  • ColourWhite
  • Power source typeRS-232, USB
  • Width66 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
161.6 g
Colour
White
Power source type
RS-232, USB
Width
66 mm
Brand
Zebra
Model
DS2208-HC
Part numbers
DS2208-HC0000BZZRW, DS2208-HCBU2100AZR
EAN / UPC
8596375197411, 5704174461500, 8596375197428
Also known as
Zebra DS2208-HC Handheld bar code reader 1D/2D LED White

Specifications

27 specifications in 7 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, MSI, U.P.C., UPC-A, UPC-E
Sensor typeLED
Optical sensor resolution (W x H)640 x 480 pixels
Light levels (direct sunlight)0 - 107600 lx
Wavelength624 nm
Tilt reading angle0 - 360°
Pitch reading angle0 - 65°
Yaw reading angle0 - 65°

Ports & interfaces

Connectivity technologyWired
Standard interfacesKeyboard wedge, RS-232, USB

Performance

Product colourWhite
International Protection (IP) codeIP52
LED indicatorsYes
BuzzerYes
CertificationRoHS EN 50581, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B

Power

Power source typeRS-232, USB
Input voltage4.5 - 5.5 V

Weight & dimensions

Width66 mm
Depth99 mm
Height165 mm
Weight161.6 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C

Logistics data

Harmonized System (HS) code84716070
