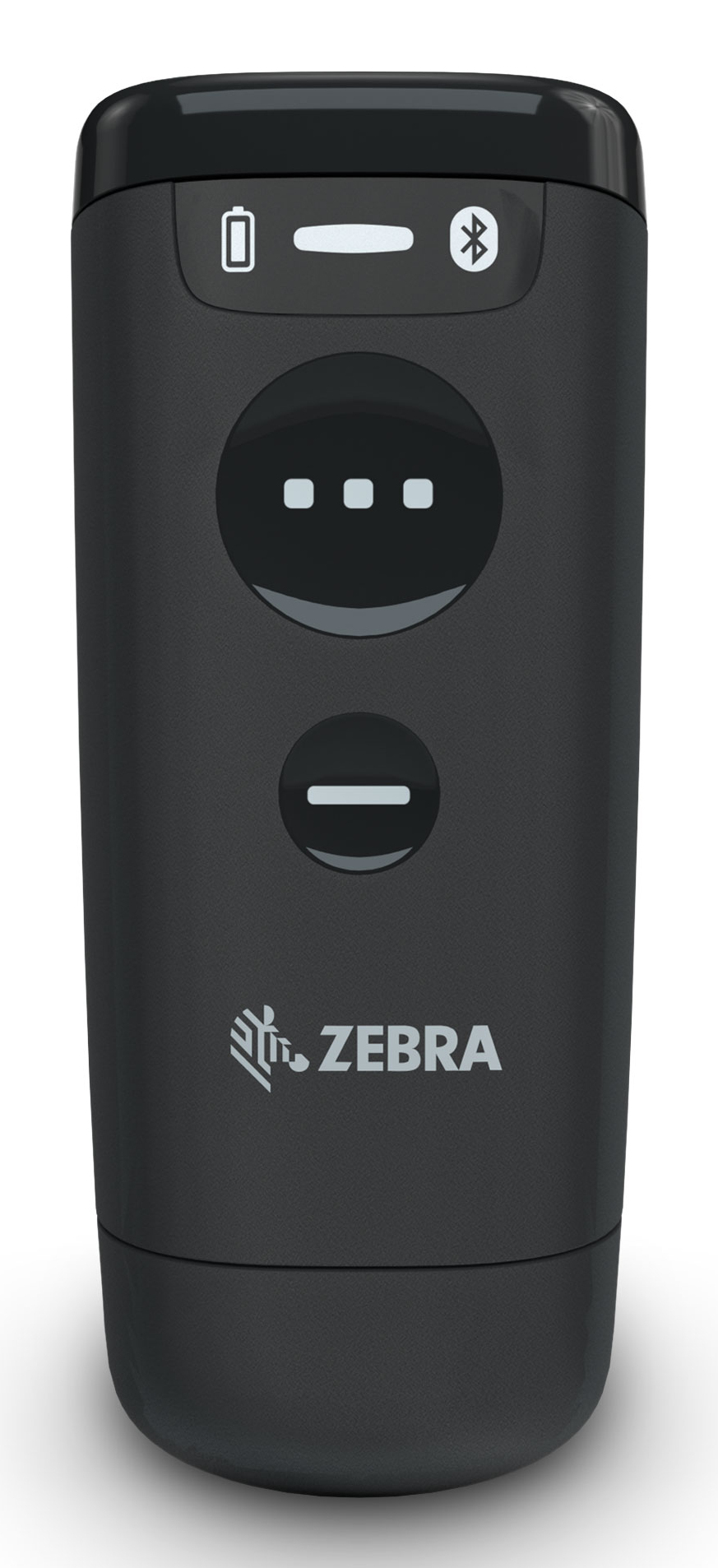

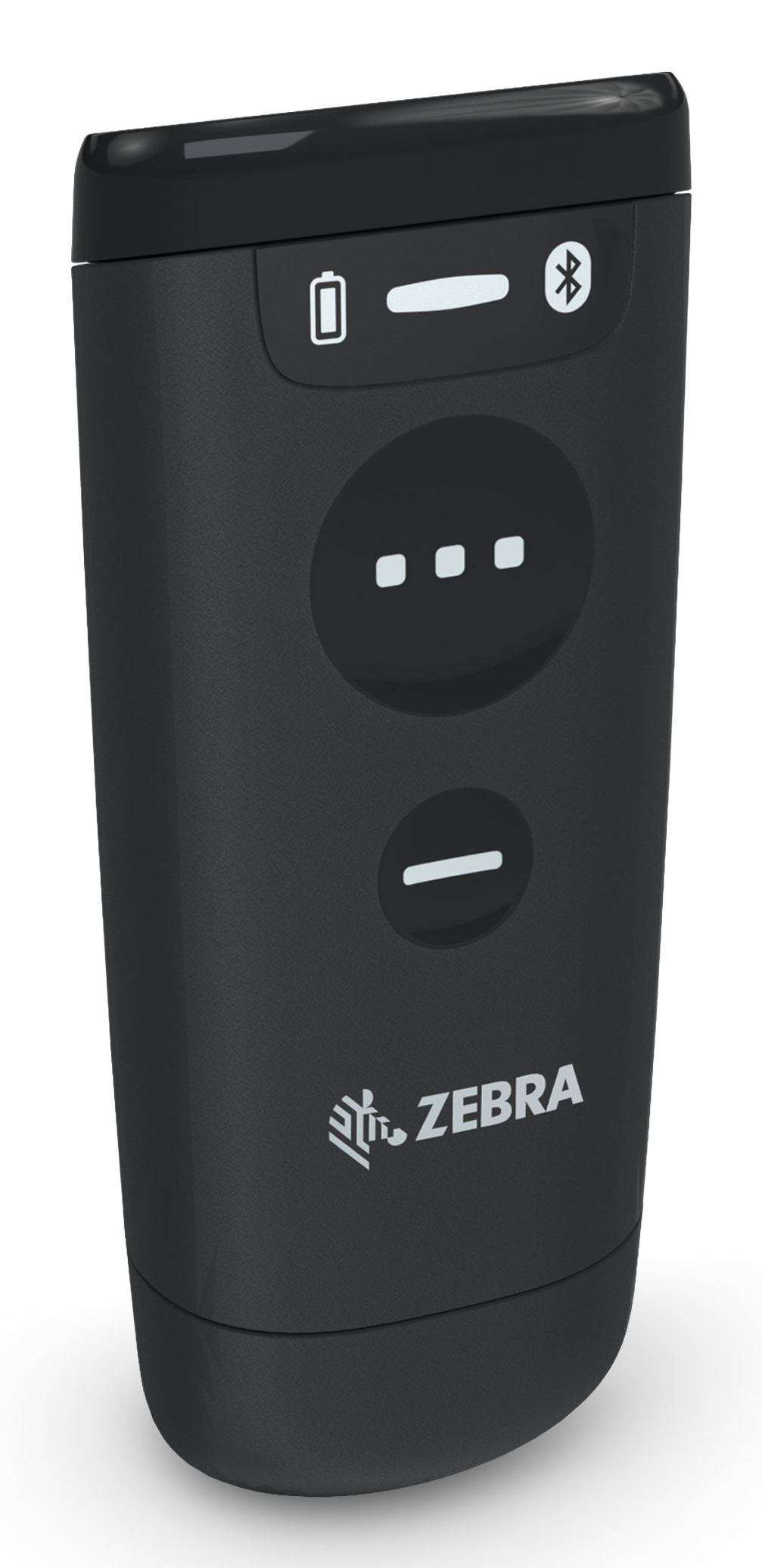

CS60 Companion scanner
Model CS6080-SR400004QVW
41 specifications
- Battery745 mAh
- ConnectivityWireless
- TypeHandheld bar code reader
- Weight83 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 745 mAh
- Connectivity
- Wireless
- Type
- Handheld bar code reader
- Weight
- 83 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- CS6080-SR400004QVW
- Part number
- CS6080-SR400004QVW
- Also known as
- Zebra CS60 Companion scanner
Specifications
41 specifications in 9 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Horizontal field of view | 45° |
| Vertical field of view | 34° |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Wireless range | 100 m |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Buzzer | Yes |
| Ambient lighting | Yes |
| Vibration function | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Number of reads per charge | 13000 |
| Battery life | 18 h |
| Charging time | 3 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 43 mm |
| Height | 9 mm |
| Weight | 83 g |
Packaging data
| Specification | Value |
|---|---|

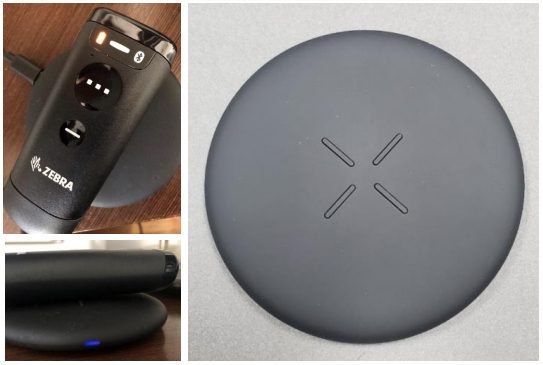

| Charging base | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Drop resistance | 1.8 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 745 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Mfi, REACH, RoHS, Trade Agreements Act (TAA) |
| Warranty period | 3 year(s) |
