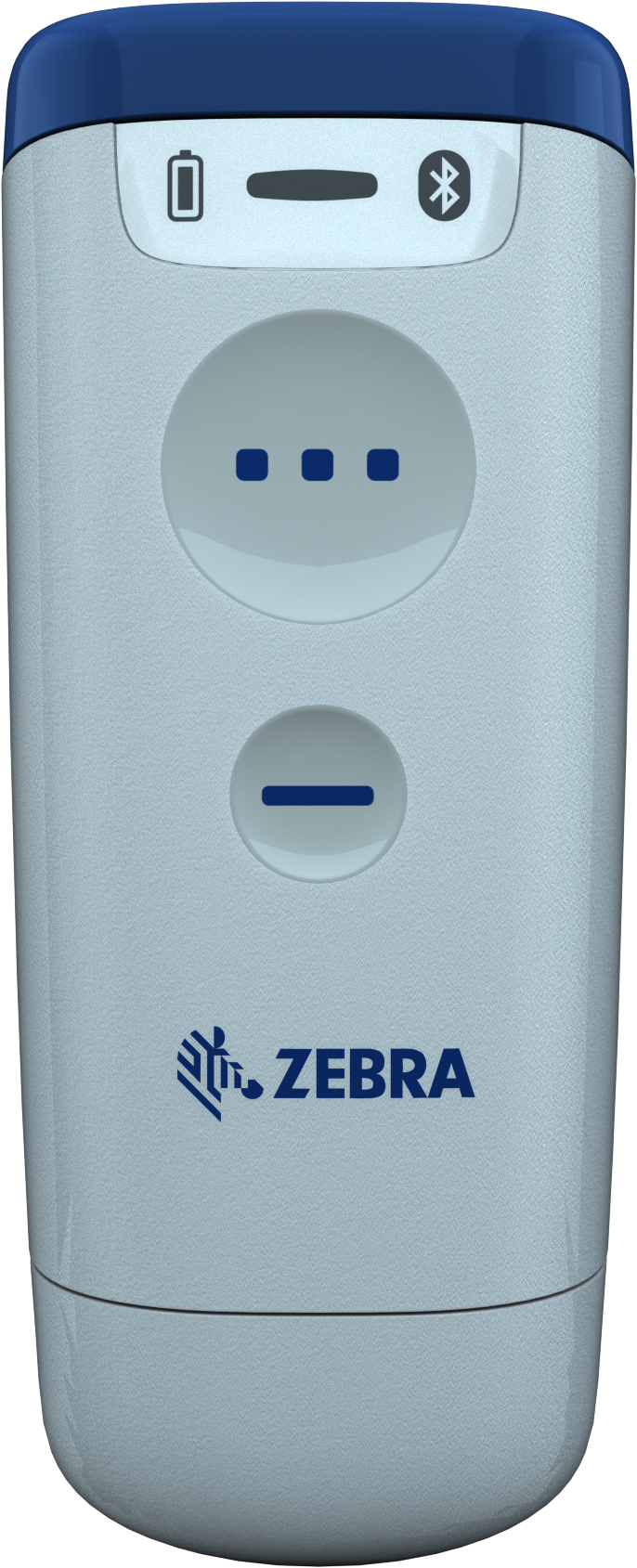

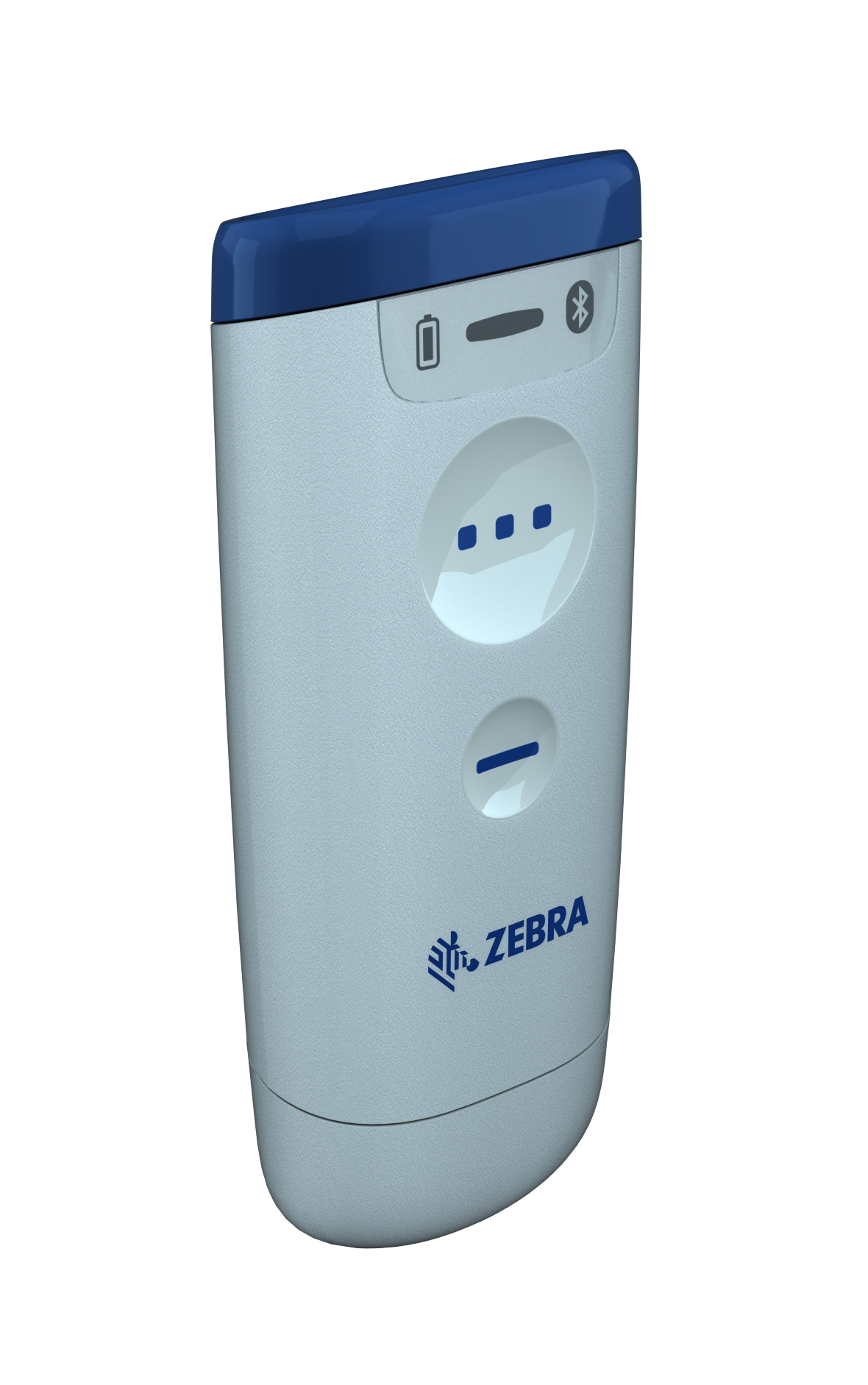

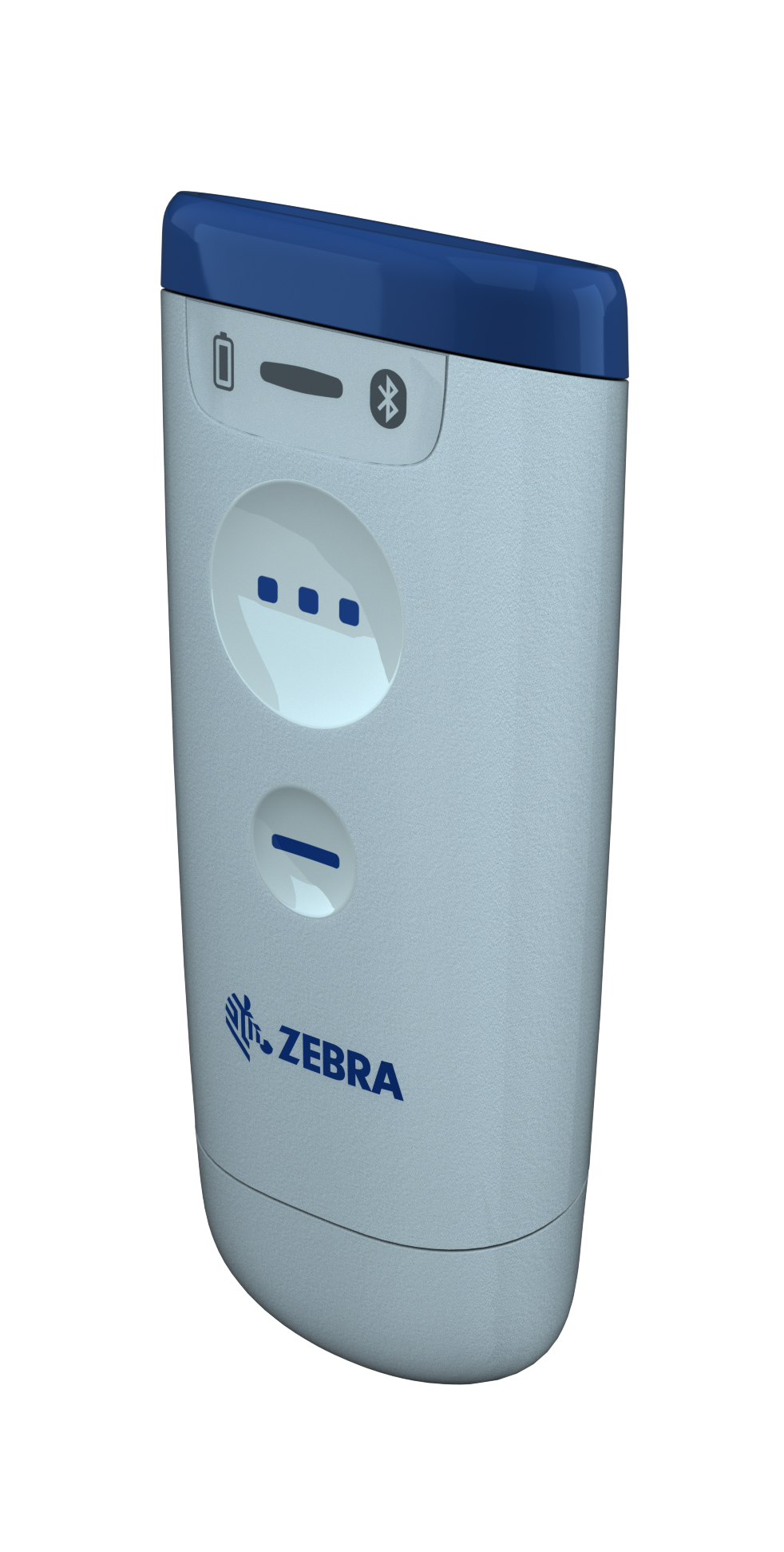

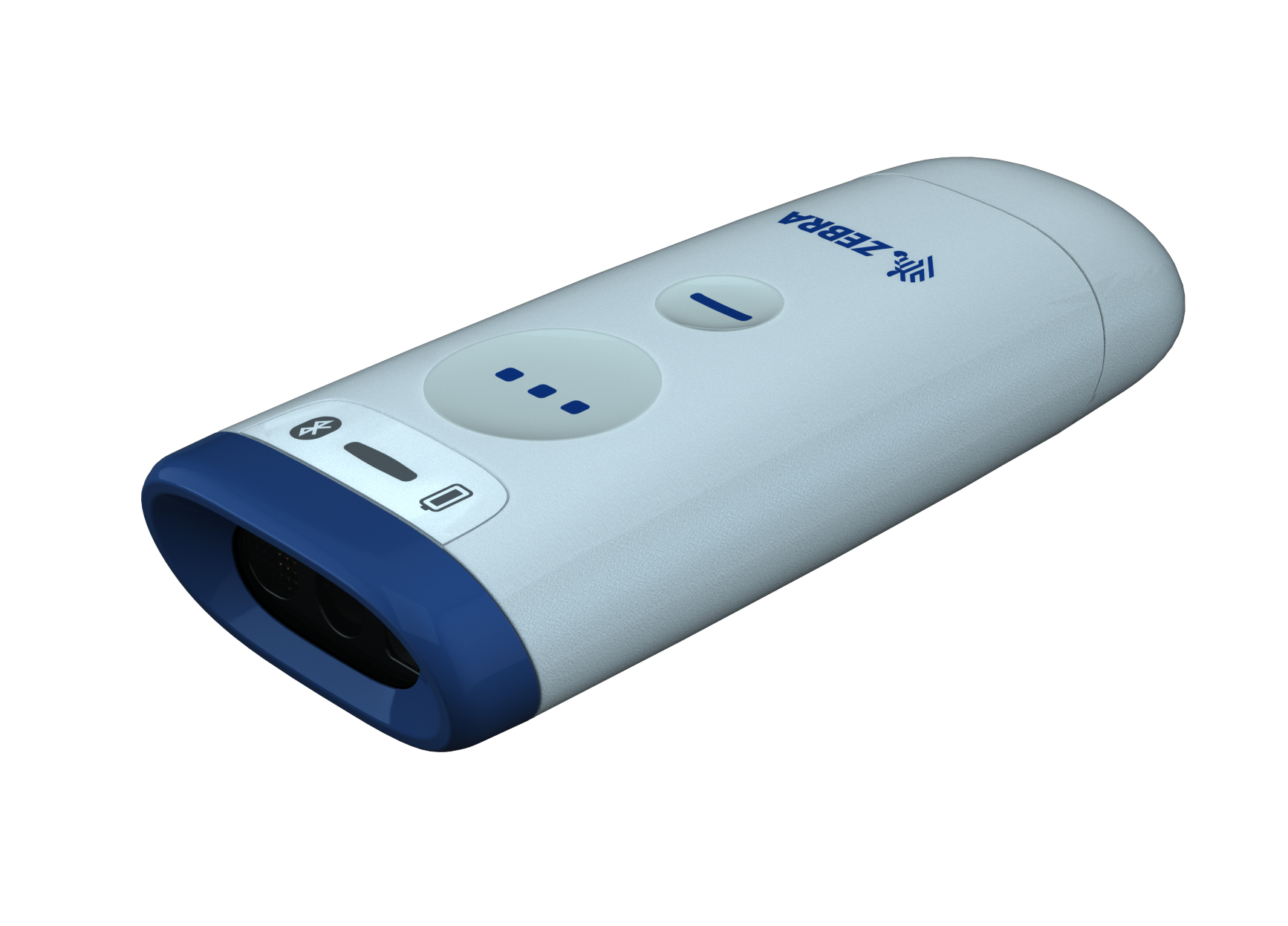

Zebra CS60-HC Handheld bar code reader 1D/2D LED White
Zebra

CS60-HC Handheld bar code reader 1D/2D LED White

Model CS60-HCPart no. CS6080-HCKF00BVZWWEAN 8596375236585

38 specifications
  • Battery735 mAh
  • ConnectivityWireless
  • TypeHandheld bar code reader
  • Weight87 g
  • ColourWhite
  • Power source typeAC, Battery, DC, USB
See all specifications

Overview

Battery
735 mAh
Connectivity
Wireless
Type
Handheld bar code reader
Weight
87 g
Colour
White
Power source type
AC, Battery, DC, USB
Brand
Zebra
Model
CS60-HC
Part numbers
CS6080-HCKF00BVZWW, CS6080-HC4F00BVTWW, CS6080-HCKF00BVTWW, CS6080-HCB0000TP1W, CS6080-HCB0000TZVW, CS6080-HC4F00BVZWW +3 more
EAN / UPC
8596375236585, 5704174955221, 8596375236561, 8596375236578 +6 more
Also known as
Zebra CS60-HC Handheld bar code reader 1D/2D LED White

Specifications

38 specifications in 9 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
Sensor typeLED
Optical sensor resolution (W x H)1280 x 960 pixels
Light levels (direct sunlight)0 - 108000 lx
Wavelength525 nm
Tilt reading angle-60 - 60°
Pitch reading angle-60 - 60°
Yaw reading angle0 - 360°

Ports & interfaces

Connectivity technologyWireless
Standard interfacesBluetooth, USB
Wireless range100 m
Bluetooth Low Energy (BLE)Yes
Bluetooth version5.0

Performance

Product colourWhite
International Protection (IP) codeIP65
LED indicatorsYes
CertificationFIPS 140-2

Power

Power source typeAC, Battery, DC, USB
Battery typeBuilt-in battery
Number of reads per charge13000
Battery life18 h
Charging time6 h
Power consumption400 mA

Weight & dimensions

Width46 mm
Depth109 mm
Height23 mm
Weight87 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 70 °C

Battery

Battery technologyLithium Polymer (LiPo)
Battery capacity735 mAh

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84716070
