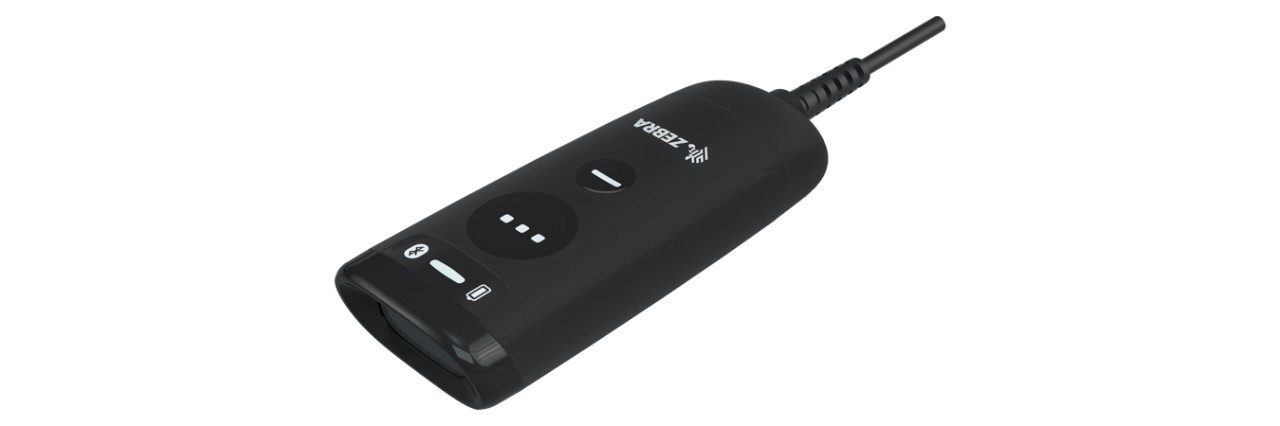

CS60 Handheld bar code reader 1D/2D LED Black
Model CS60Part no. CS6080-SR40000KSVWEAN 8596375236608
32 specifications
- ConnectivityWireless
- TypeHandheld bar code reader
- Weight56 g
- ColourBlack
- Power source typeAC, DC, USB
- Width46 mm
Overview
- Connectivity
- Wireless
- Type
- Handheld bar code reader
- Weight
- 56 g
- Colour
- Black
- Power source type
- AC, DC, USB
- Width
- 46 mm
- Brand
- Zebra
- Category
- Barcode Reader
- Model
- CS60
- Part numbers
- CS6080-SR40000KSVW, CS6080-SRK0004VZWW, CS6080-SR400004SVW, CS6080-SR40000TSVW, CS6080-SR40004VZWW, CS6080-SR40004VMWW +1 more
- EAN / UPC
- 8596375236608, 5715063028827, 8596375236653, 5704174395737 +9 more
- Also known as
- Zebra CS60 Handheld bar code reader 1D/2D LED Black
Specifications
32 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 525 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, USB |
| Number of reads per charge | 13000 |
| Power consumption | 400 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 46 mm |
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 56 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
