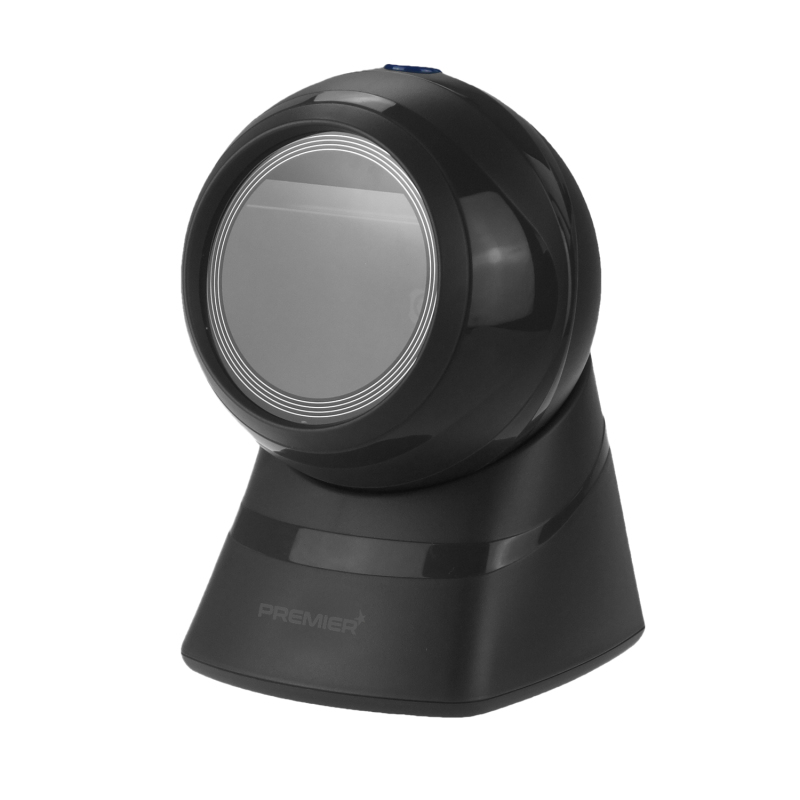

Premier MS3-2D Desktop
Premier

MS3-2D Desktop

Model MS3-2D DesktopPart no. ILM2DUSBBDKEAN 8437019184834

29 specifications
  • ConnectivityWired
  • TypeFixed bar code reader
  • Weight230 g
  • ColourBlack
  • Power source typeAC
  • Width107.8 mm
See all specifications

Overview

Connectivity
Wired
Type
Fixed bar code reader
Weight
230 g
Colour
Black
Power source type
AC
Width
107.8 mm
Brand
Premier
Model
MS3-2D Desktop
Part number
ILM2DUSBBDK
EAN / UPC
8437019184834
Also known as
Premier MS3-2D Desktop Fixed bar code reader CMOS Black

Specifications

29 specifications in 7 groups

Scanning

TypeFixed bar code reader
Scanner type2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
Sensor typeCMOS
Optical sensor resolution (W x H)640 x 480 pixels
Tilt reading angle0 - 360°
Pitch reading angle0 - 45°
Yaw reading angle0 - 60°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) codeIP52
Protection featuresShock resistant
Print contrast30%

Power

Power source typeAC
Power consumption (typical)1 W
Power consumption (standby)0.45 W
Power consumption200 mA

Weight & dimensions

Width107.8 mm
Depth114.1 mm
Height156.3 mm
Weight230 g

Operational conditions

Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C

Other features

Compatible operating systemsLinux, Android, Windows XP, 7, 8, 10, MAC
