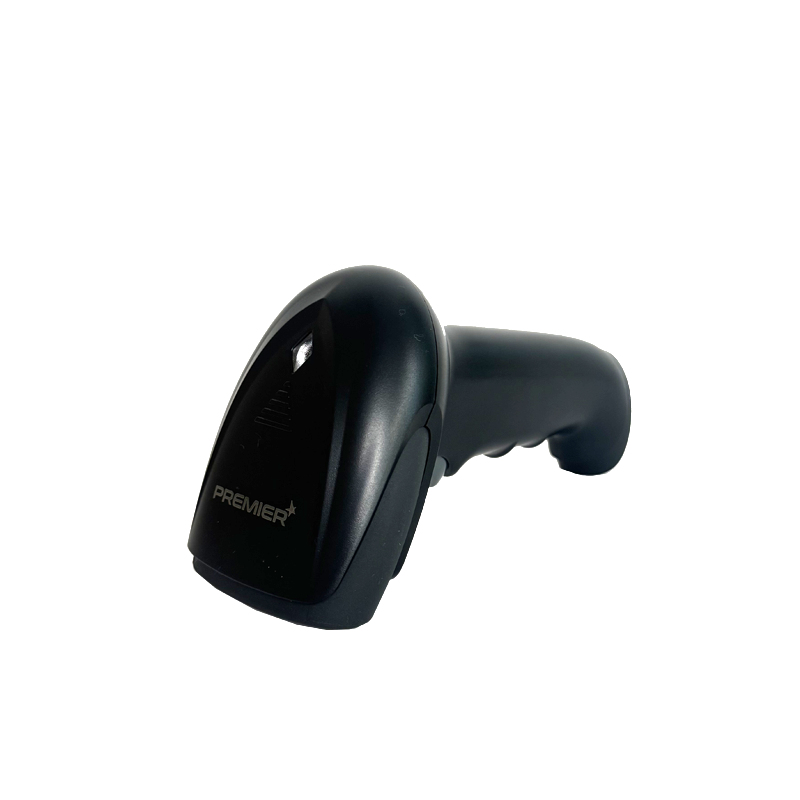

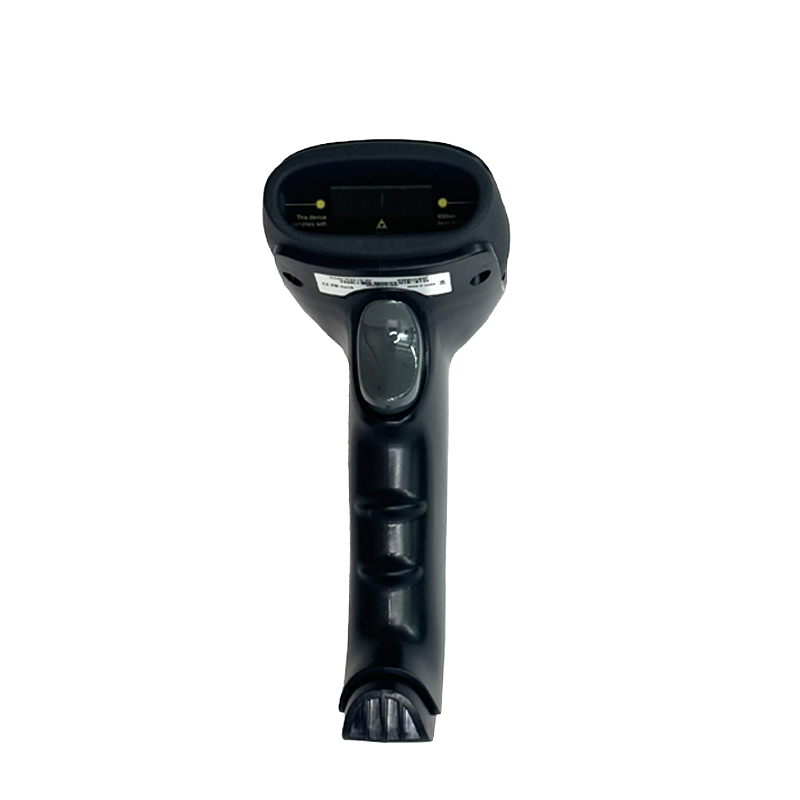

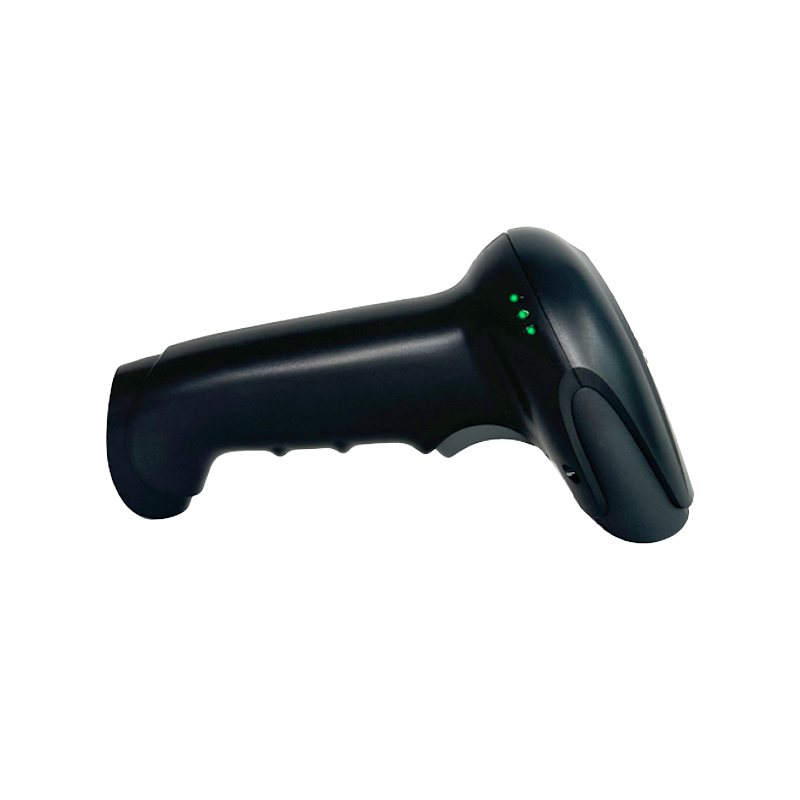

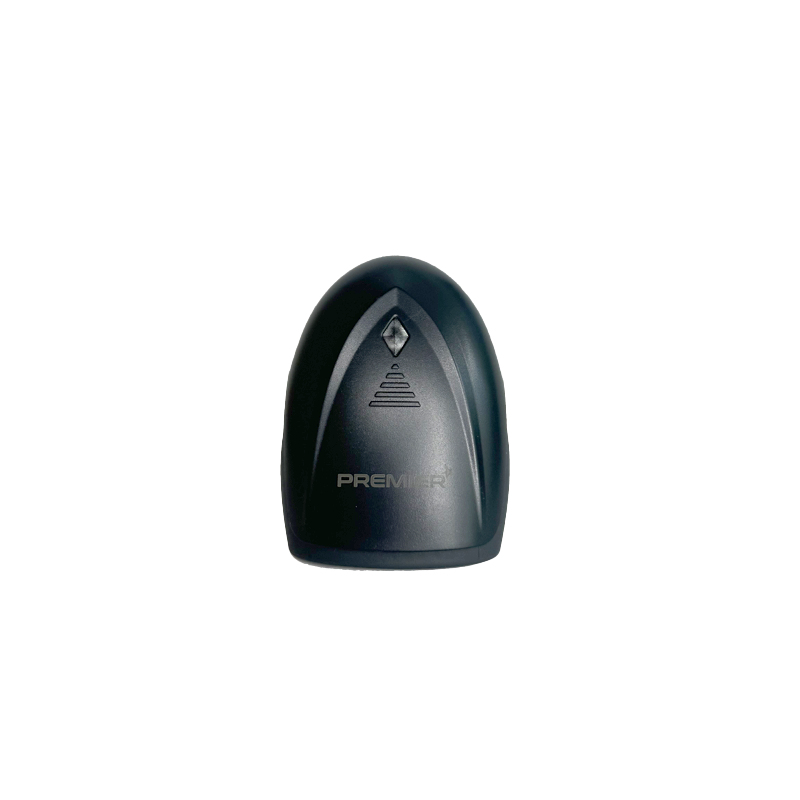

MS3-1D RF
Model MS3-1D RFPart no. ILM1DUSBRFBEAN 8437019184858
33 specifications
- Battery1500 mAh
- ConnectivityWired & Wireless
- TypeHandheld bar code reader
- Weight165 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 1500 mAh
- Connectivity
- Wired & Wireless
- Type
- Handheld bar code reader
- Weight
- 165 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Premier
- Category
- Barcode Reader
- Model
- MS3-1D RF
- Part number
- ILM1DUSBRFB
- EAN / UPC
- 8437019184858
- Also known as
- Premier MS3-1D RF Handheld bar code reader Laser Black
Specifications
33 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 32, Code 39, Code 93, EAN 128, EAN-13, GS1-128 (UCC/EAN-128), JAN, MSI, UPC-A, UPC-E |
| Sensor type | Laser |
| Scanner resolution | 4 mm |
| Working distance | 60 cm |
| Read rate (max) | 120 reads/s |
| Tilt reading angle | 0 - 35° |
| Pitch reading angle | 0 - 65° |
| Yaw reading angle | 0 - 65° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RF Wireless, USB |
| Wireless range | 50 m |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polyvinyl chloride (PVC) |
| International Protection (IP) code | IP54 |
| Protection features | Shock resistant |
| Built-in display | No |
| Print contrast | 35% |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 3.7 V |
| Charging time | 7 h |
| Power consumption | 50 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79.5 mm |
| Depth | 170 mm |
| Height | 87.8 mm |
| Weight | 165 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | 0 - 50 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium |
| Battery capacity | 1500 mAh |
