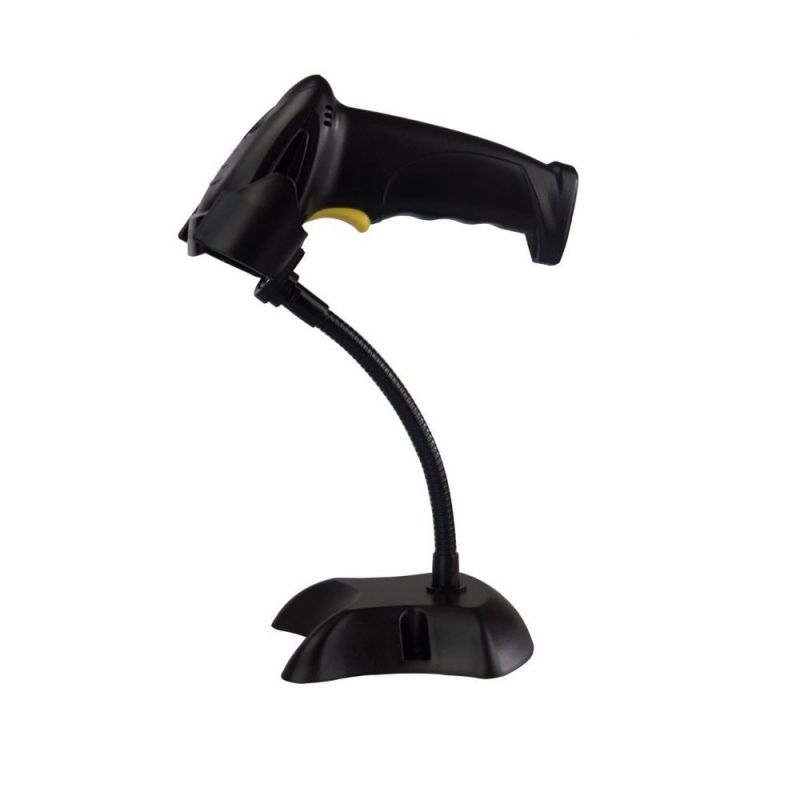

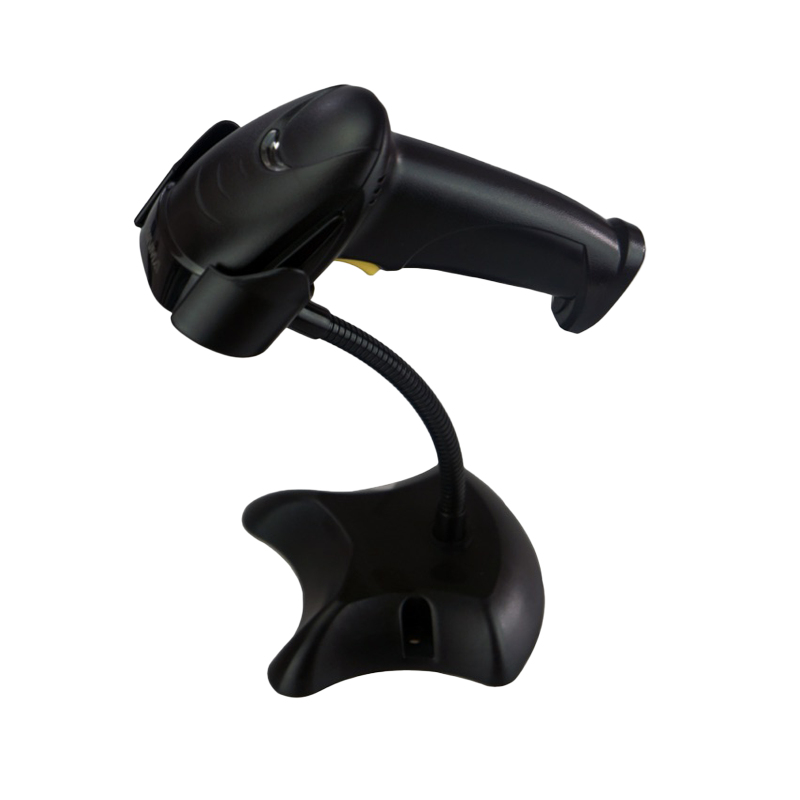

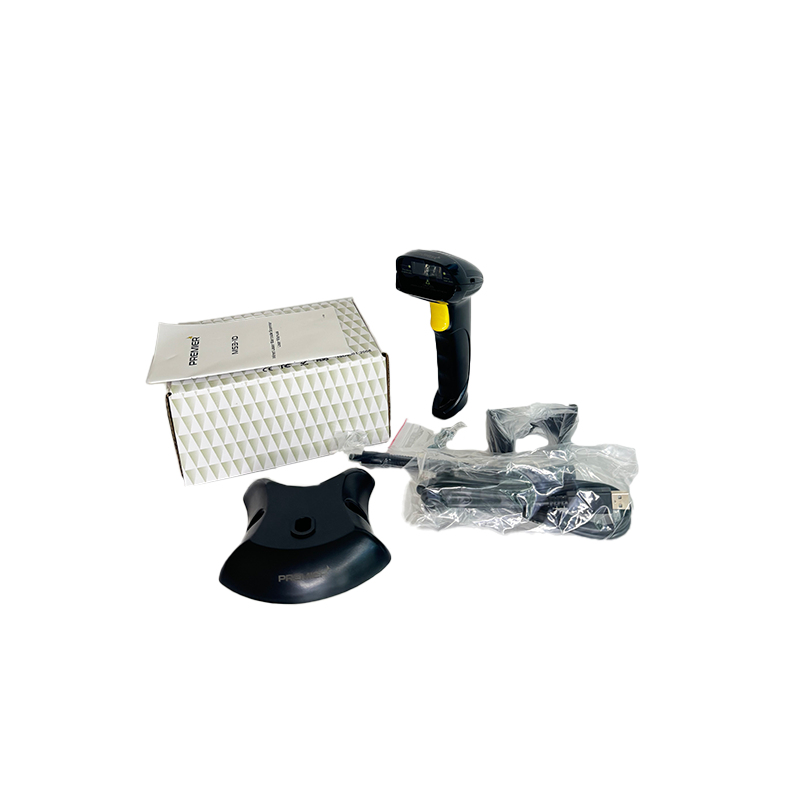

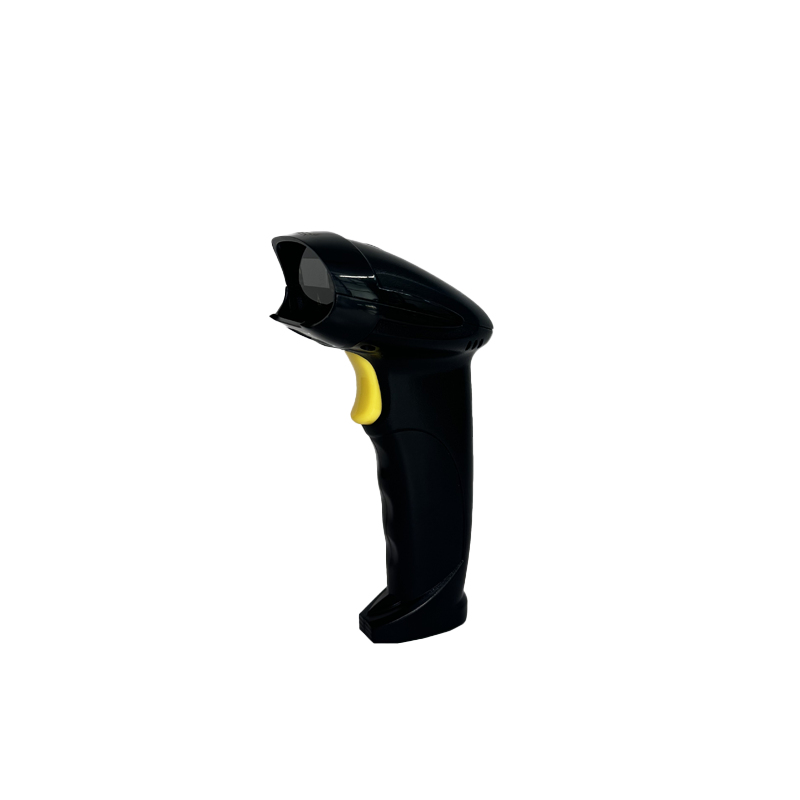

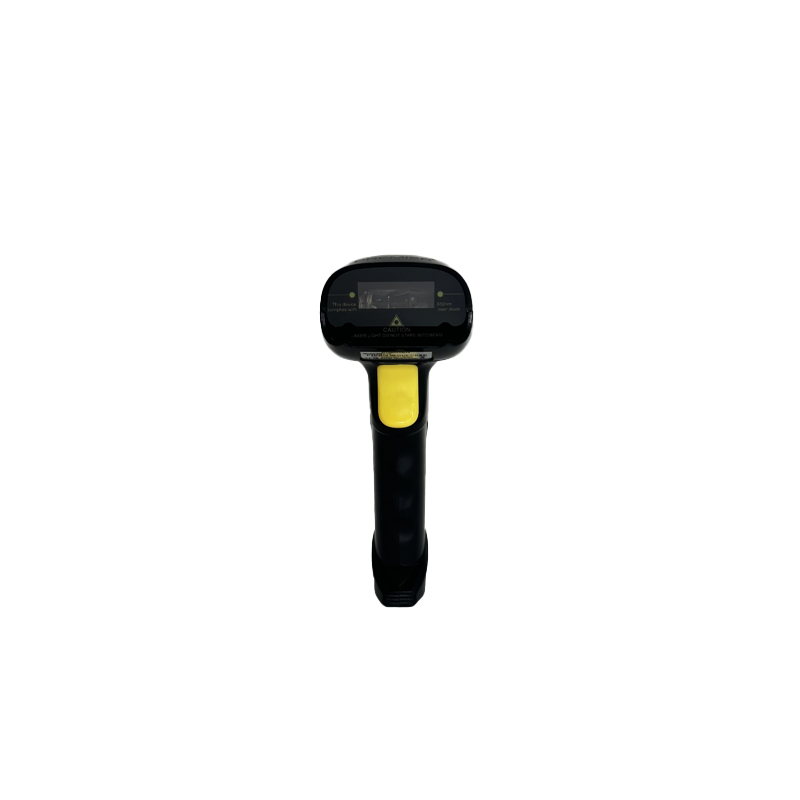

MS3-1D Handheld bar code reader CMOS Black
Model MS3-1DPart no. ILM1DUSBBSTEAN 8437019184254
30 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight110 g
- ColourBlack
- Power source typeDC
- Width67 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 110 g
- Colour
- Black
- Power source type
- DC
- Width
- 67 mm
- Brand
- Premier
- Category
- Barcode Reader
- Model
- MS3-1D
- Part number
- ILM1DUSBBST
- EAN / UPC
- 8437019184254
- Also known as
- Premier MS3-1D Handheld bar code reader CMOS Black
Specifications
30 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISBN, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, UPC-A, UPC-E |
| Sensor type | CMOS |
| Working distance | 15 cm |
| Read rate (max) | 150 reads/s |
| Tilt reading angle | 0 - 30° |
| Pitch reading angle | 0 - 75° |
| Yaw reading angle | 0 - 65° |
| Maximum scan area | 500 x 300 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Buzzer | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Battery voltage | 5 V |
| Power consumption | 50 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 185 mm |
| Height | 54 mm |
| Weight | 110 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | 0 - 50 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Alkaline |
