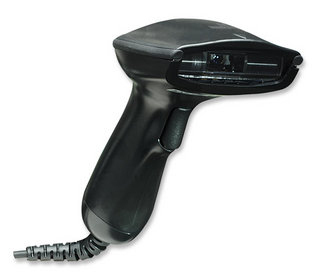

Short Range Laser
Model Short Range LaserPart no. 460910EAN 766623460910
26 specifications
- Weight150 g
- ColourBlack
- Scanner resolution0.1 mm
- Standard interfacesUSB
- Input voltage5 V
- Operating relative humidity (H-H)20 - 85%
Overview
- Weight
- 150 g
- Colour
- Black
- Scanner resolution
- 0.1 mm
- Standard interfaces
- USB
- Input voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 85%
- Brand
- Manhattan
- Category
- Barcode Reader
- Model
- Short Range Laser
- Part number
- 460910
- EAN / UPC
- 766623460910
- Also known as
- Manhattan Short Range Laser Black
Specifications
26 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Scanner resolution | 0.1 mm |
| Working distance | 20 cm |
| Light levels (direct sunlight) | 0 - 2000 lx |
| Wavelength | 680 nm |
| Maximum scan width | 7.62 cm |
| Decoding standards | UPC/EAN/JAN, Code 39, Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, China Postage, Code 32/IPTD |
| Scan speed | 50 sec/page |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | USB |
| Cable length | 1.5 m |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Rubber |
| Keys quantity | 1 keys |
| LED indicators | Power |
| Certification | - FCC - CE - USB |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption | 130 mA |
| Power requirements | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 193 x 90 x 85 mm |
| Display | No |
| Light source | LED |
| Maximum operating distance | 0.2 m |
