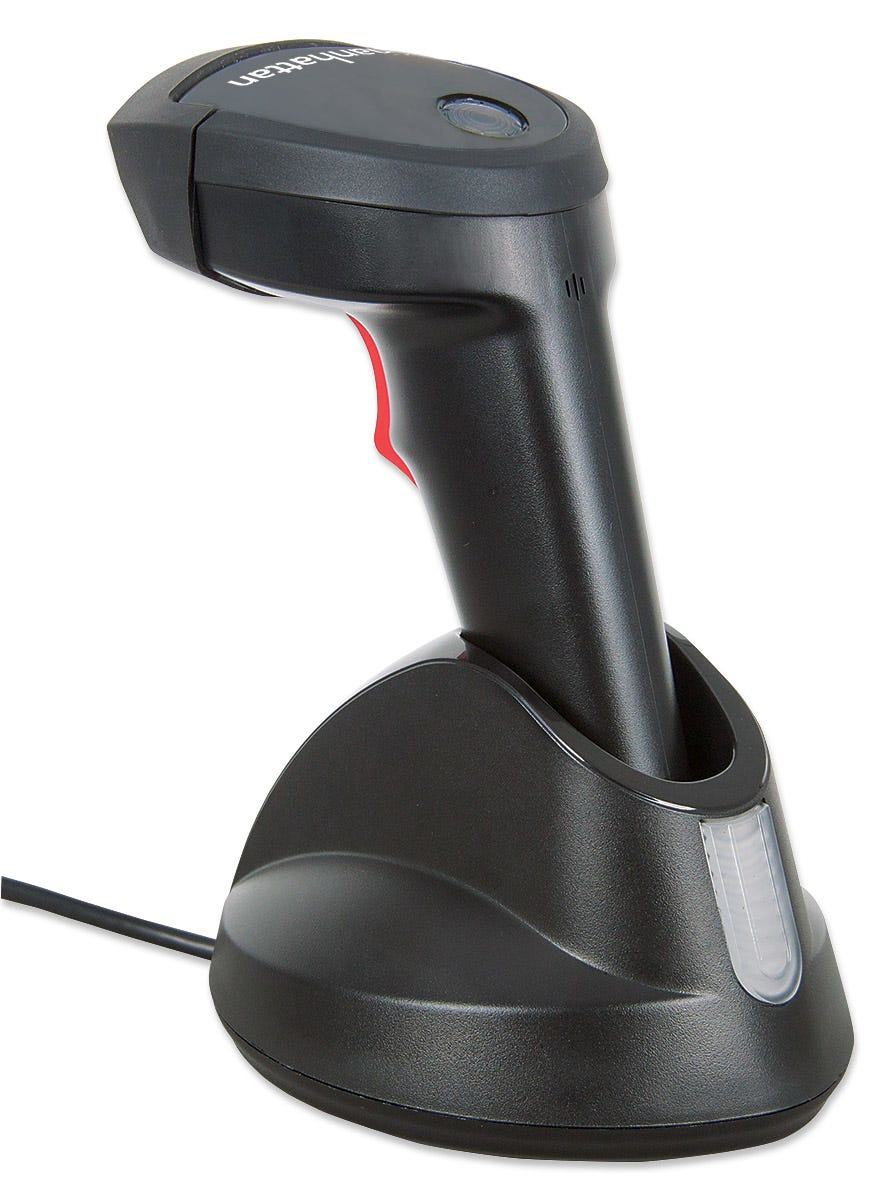

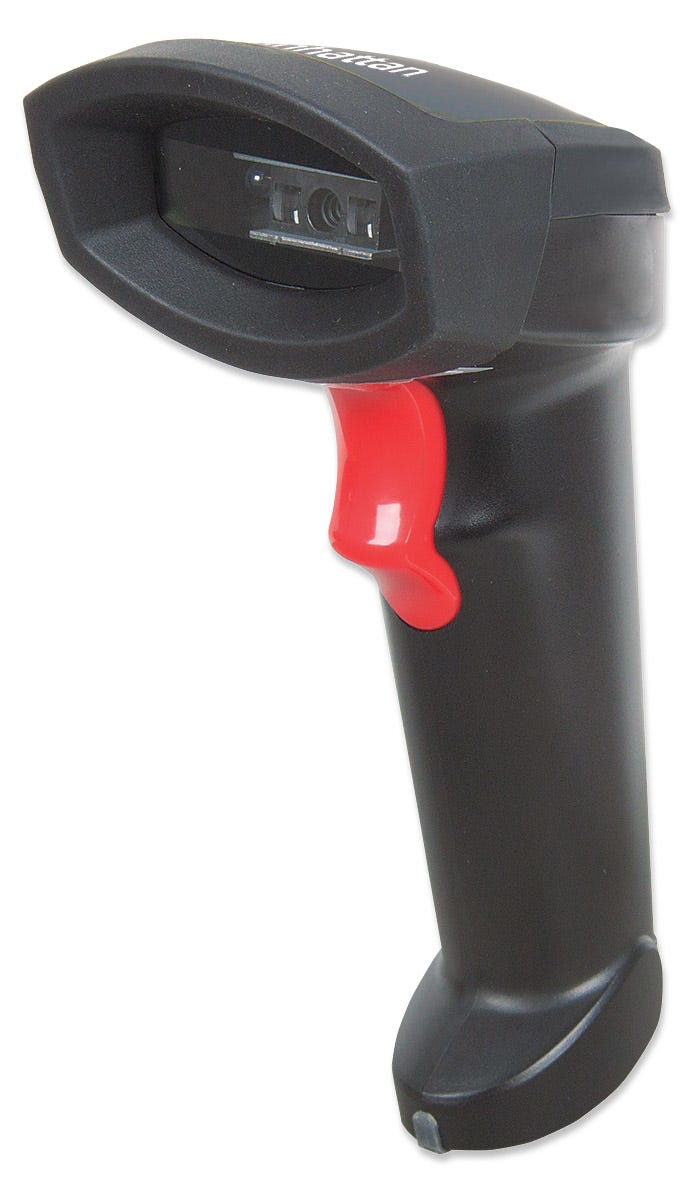

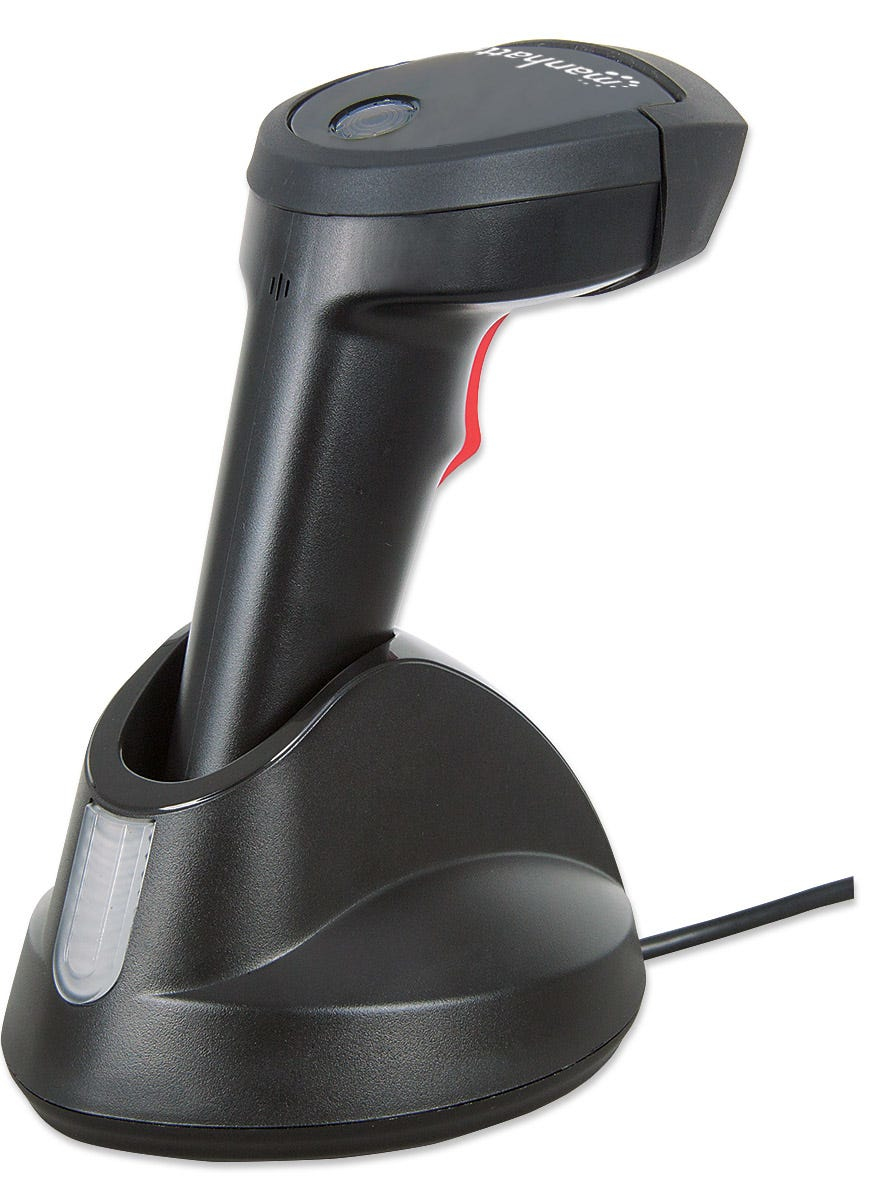

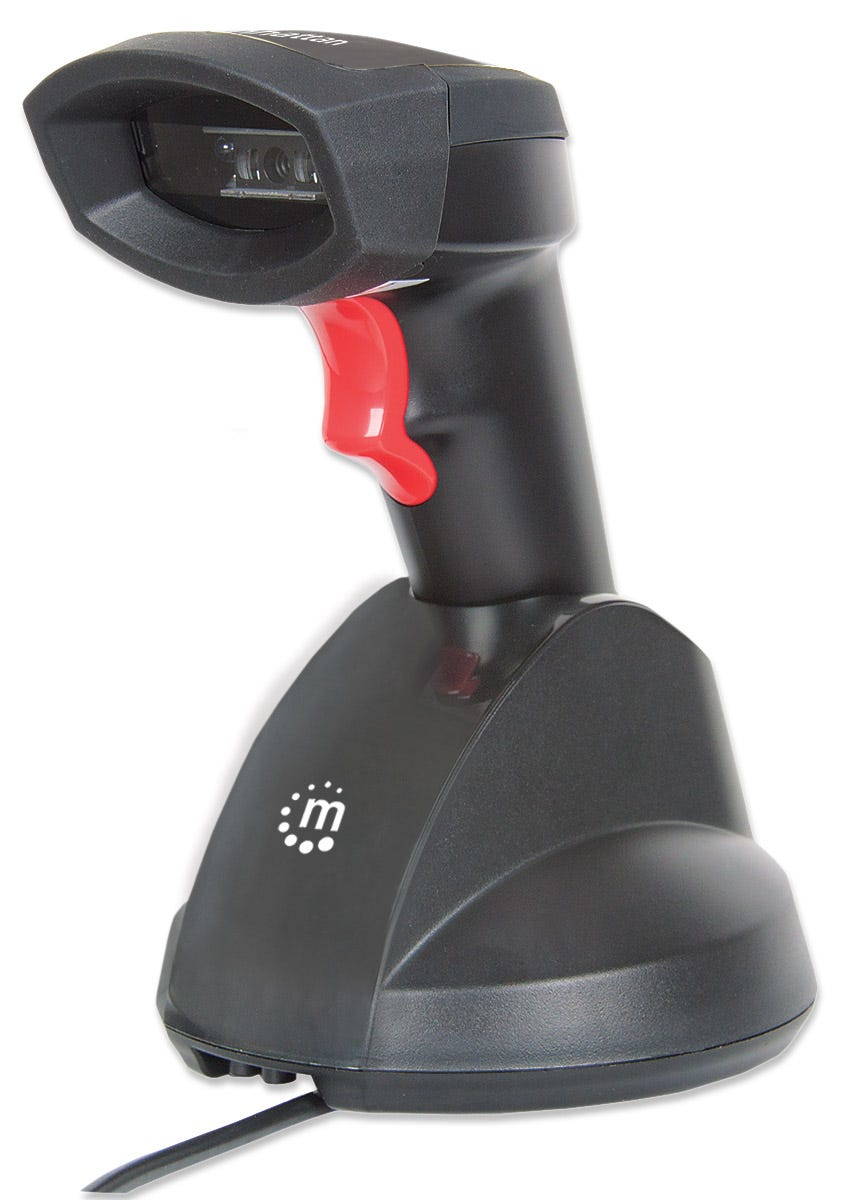

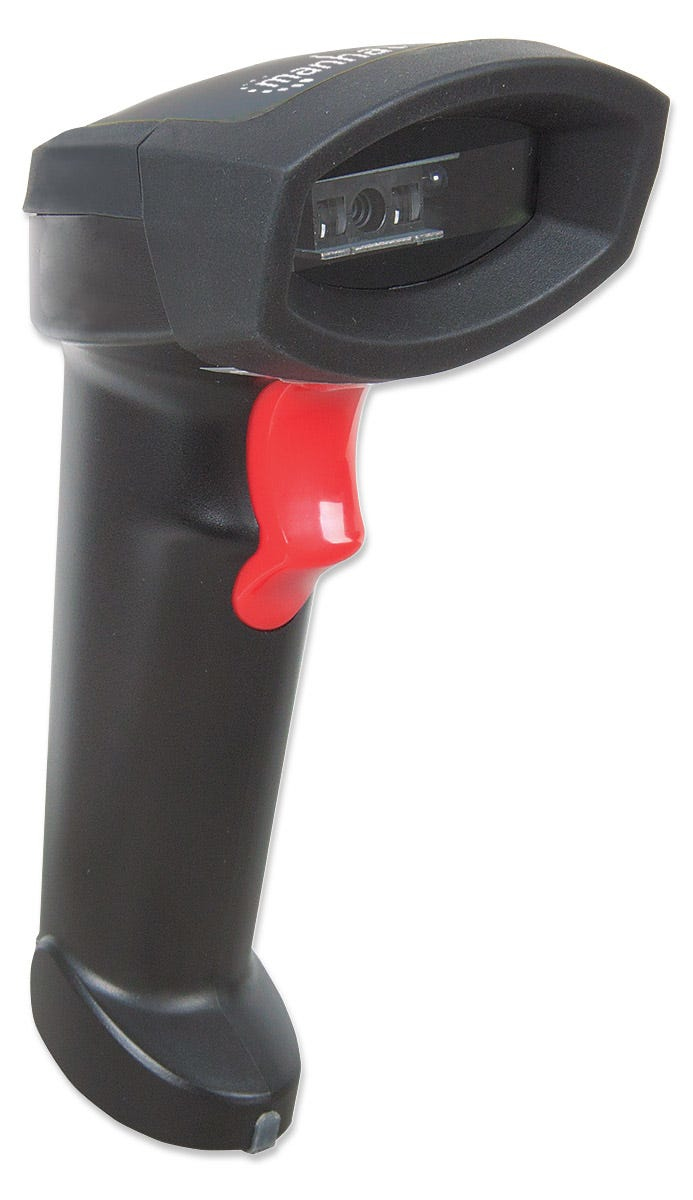

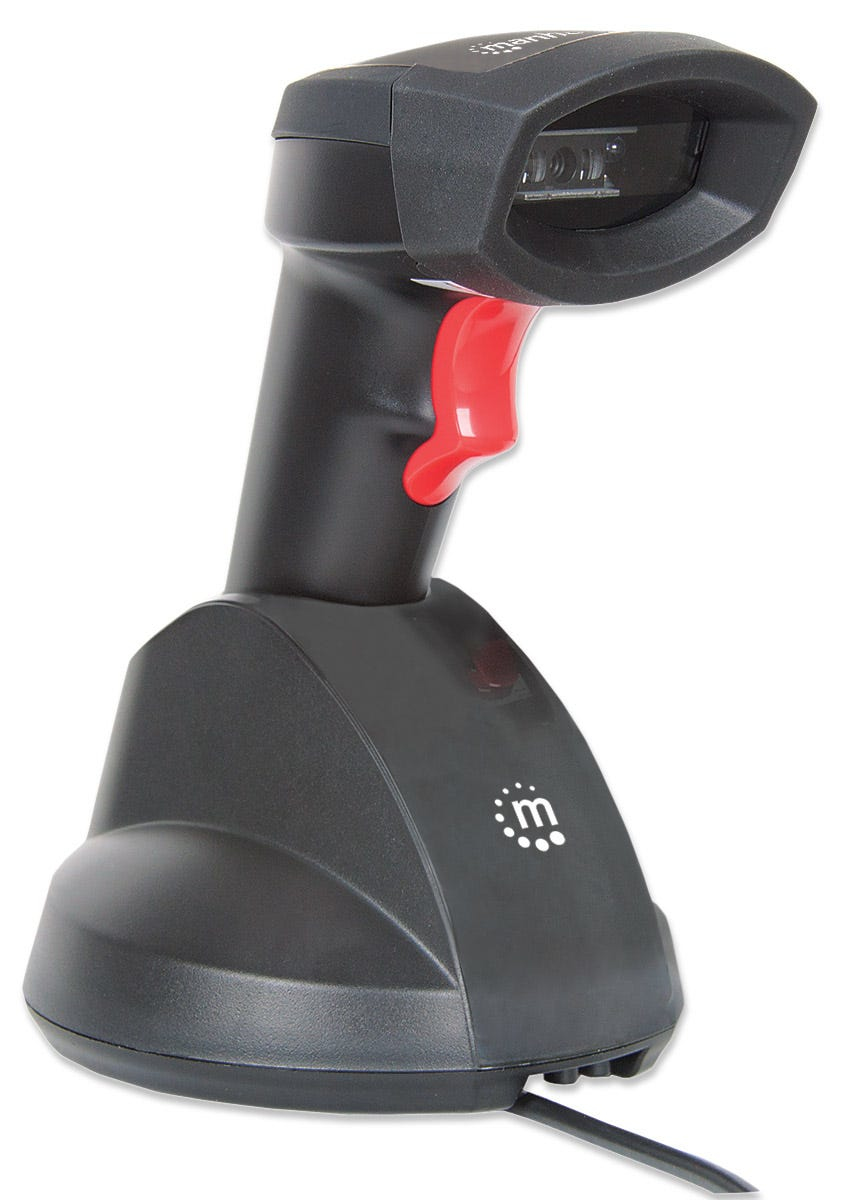

Rugged Wireless Linear CCD Handheld Barcode Scanner, Bluetooth
500mm Scan Depth, up to 80m effective range (line of sight), Rugged Housing, Max Ambie
Model 178617EAN 766623178617
37 specifications
- Battery2600 mAh
- ConnectivityWired & Wireless
- TypeHandheld bar code reader
- Weight160 g
- ColourBlack
- Power source typeBattery
Overview
- Battery
- 2600 mAh
- Connectivity
- Wired & Wireless
- Type
- Handheld bar code reader
- Weight
- 160 g
- Colour
- Black
- Power source type
- Battery
- Brand
- Manhattan
- Category
- Barcode Reader
- Model
- 178617
- Part number
- 178617
- EAN / UPC
- 766623178617, 5054533509801, 7666231786170
- Also known as
- Manhattan Rugged Wireless Linear CCD Handheld Barcode Scanner, Bluetooth, 500mm Scan Depth, up to 80m effective range (line of sight), Rugged Housing, Max Ambie
Specifications
37 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN |
| Sensor type | CCD |
| Scanner resolution | 0.1 mm |
| Working distance | 50 cm |
| Read rate (max) | 500 reads/s |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 632 nm |
| Maximum scan width | 50 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Bluetooth, Keyboard wedge, RS-232, USB |
| Wireless range | 80 m |
| Bluetooth version | 2.1+EDR |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| International Protection (IP) code | IP42 |
| Certification | FCC CE |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 3.7 V |
| Charging time | 5 h |
| Power consumption | 70 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 180 mm |
| Height | 70 mm |
| Base dimensions (WxDxH) | 110 x 80 x 130 mm |
| Base weight | 150 g |
| Weight | 160 g |
Packaging data
| Specification | Value |
|---|---|

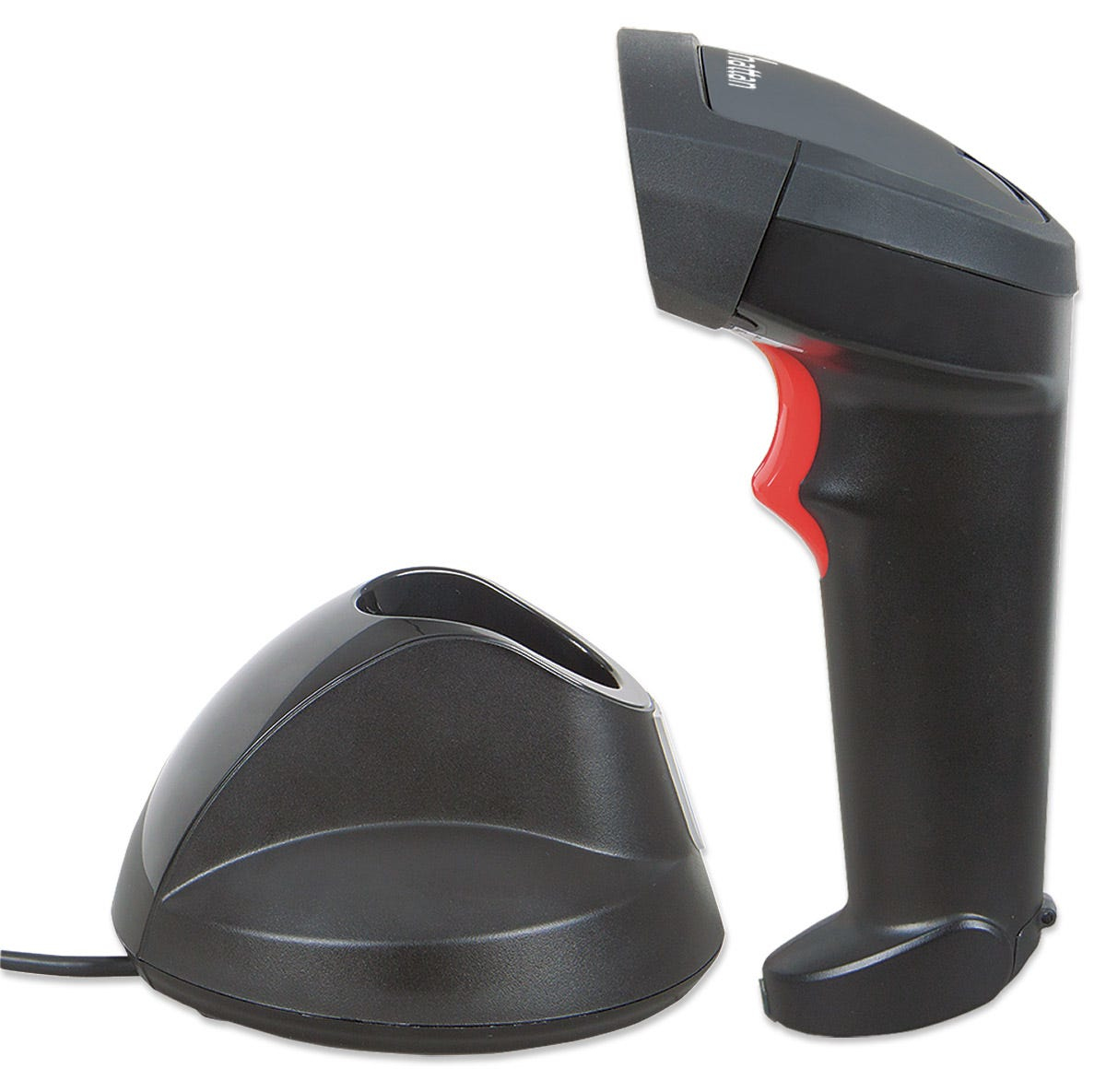

| Charging base | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2600 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
