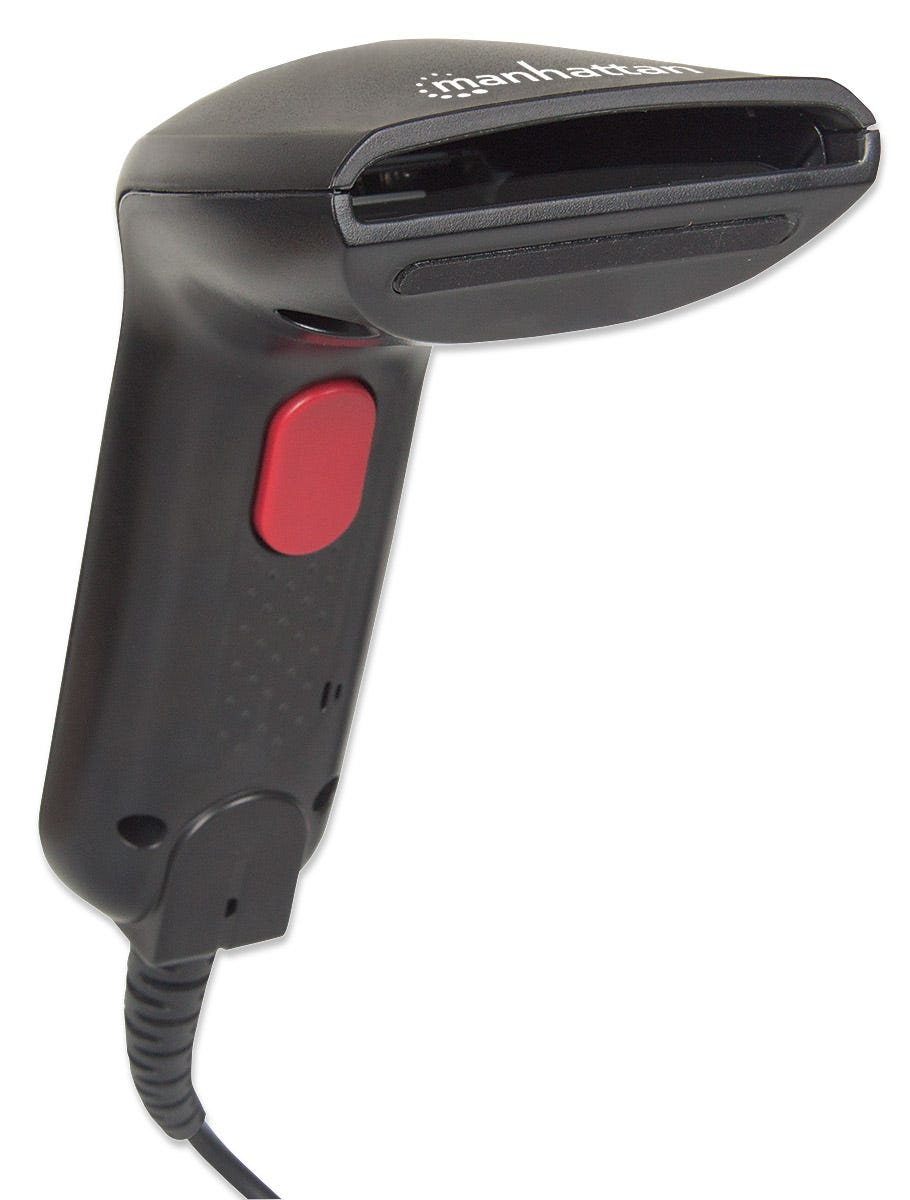

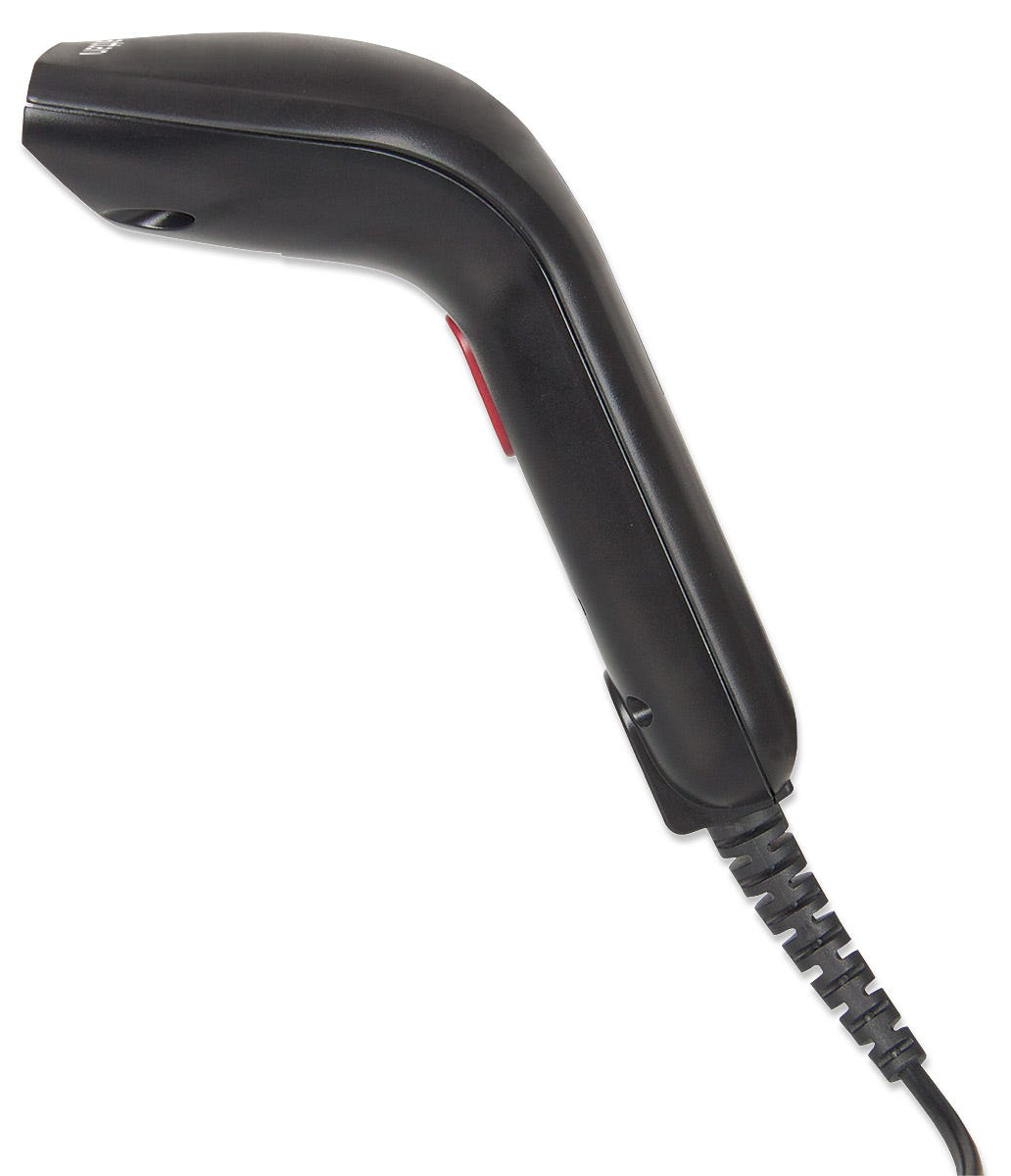

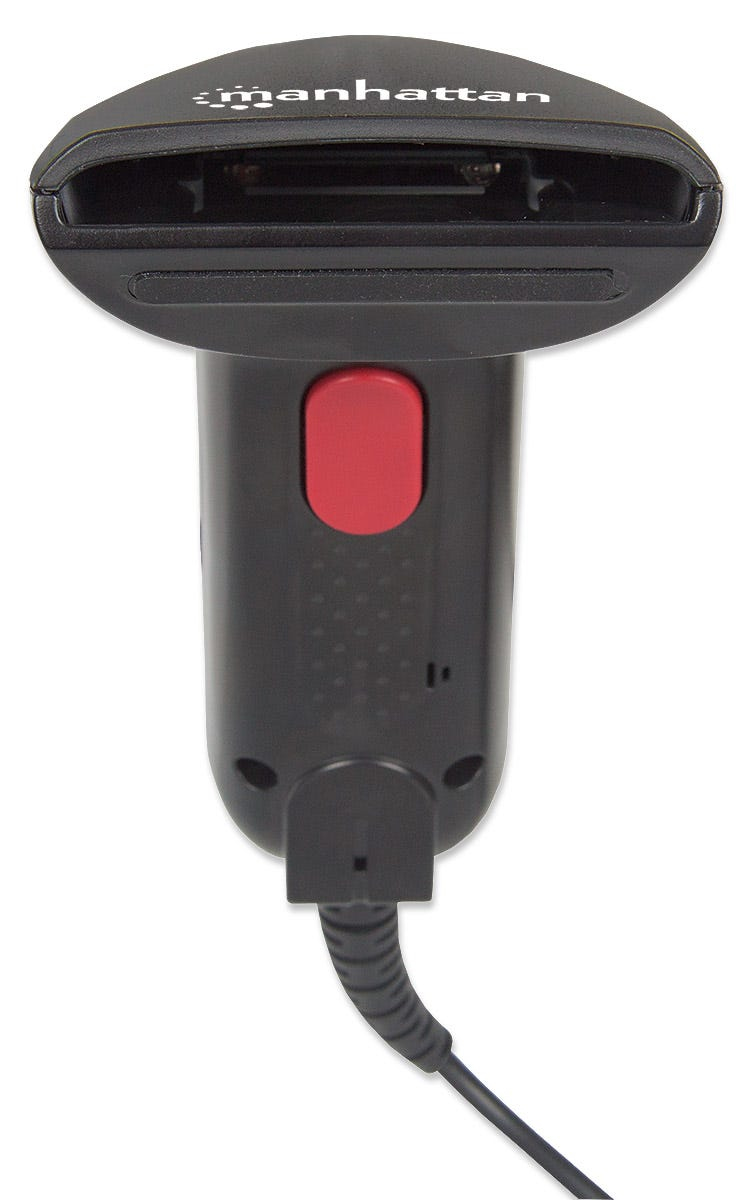

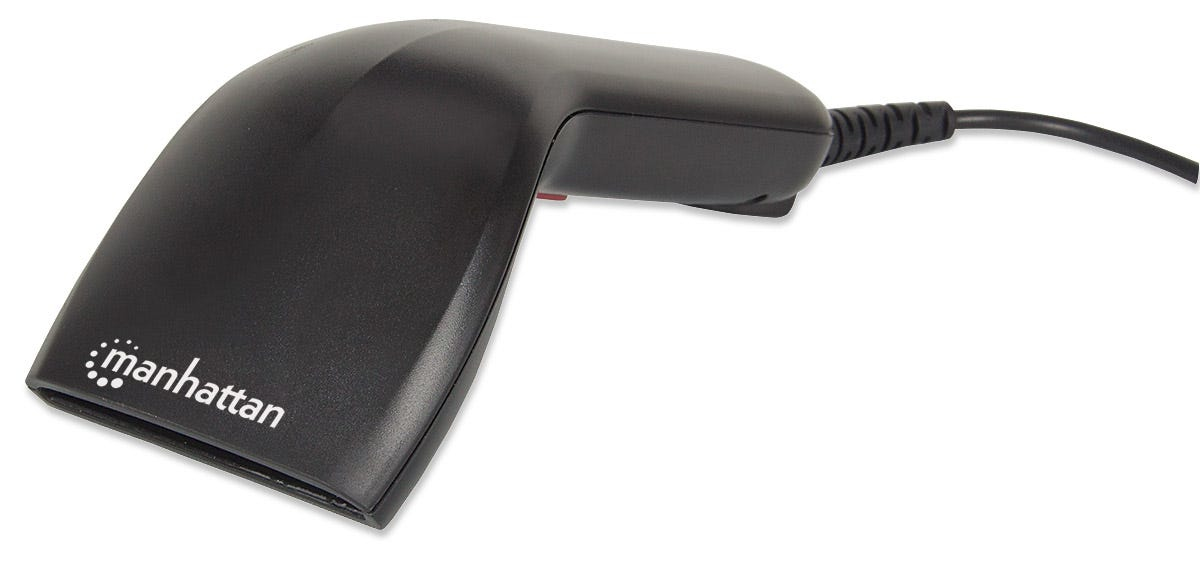

Manhattan Contact CCD Handheld Barcode Scanner, USB

Manhattan Contact CCD Handheld Barcode Scanner, USB

60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Model 178488EAN 766623178488

28 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight180 g
  • ColourBlack
  • Input voltage5 V
  • Width80 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
180 g
Colour
Black
Input voltage
5 V
Width
80 mm
Brand
Manhattan
Model
178488
Part number
178488
EAN / UPC
766623178488, 5054533617063, 7666231784886
Also known as
Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Specifications

28 specifications in 8 groups

Scanning

TypeHandheld bar code reader
Scanner type1D
2D (matrix & stacked) barcodes supportedNot supported
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C.
Sensor typeCCD
Scanner resolution0.127 mm
Working distance6 cm
Read rate (max)100 reads/s
Light levels (direct sunlight)0 - 5000 lx
Wavelength632 nm
Maximum scan width6 cm

Ports & interfaces

Connectivity technologyWired
Standard interfacesKeyboard wedge, RS-232, USB
Cable length1.524 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Certification• FCC • CE • RoHS

Power

Input voltage5 V
Power consumption80 mA

Weight & dimensions

Width80 mm
Depth180 mm
Height63.5 mm
Weight180 g

Operational conditions

Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84716070
