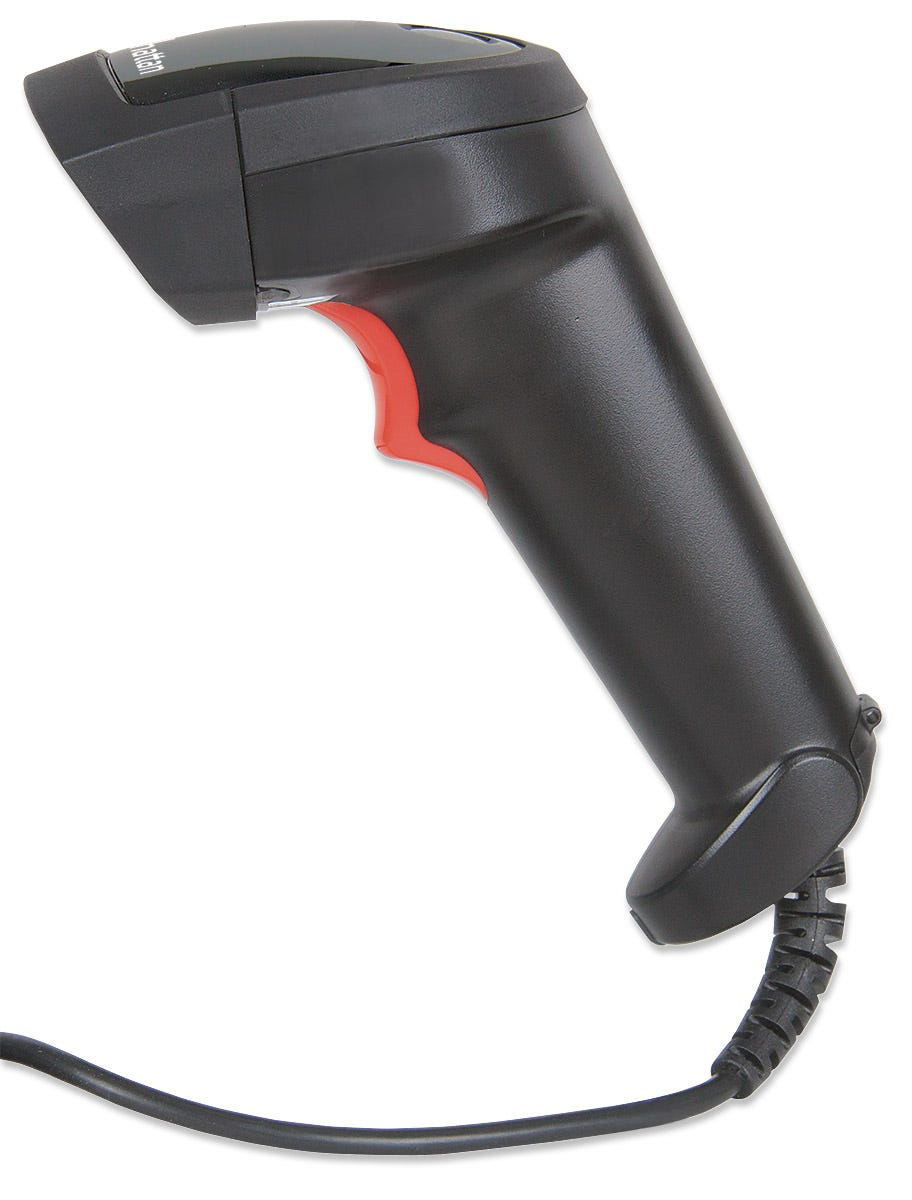

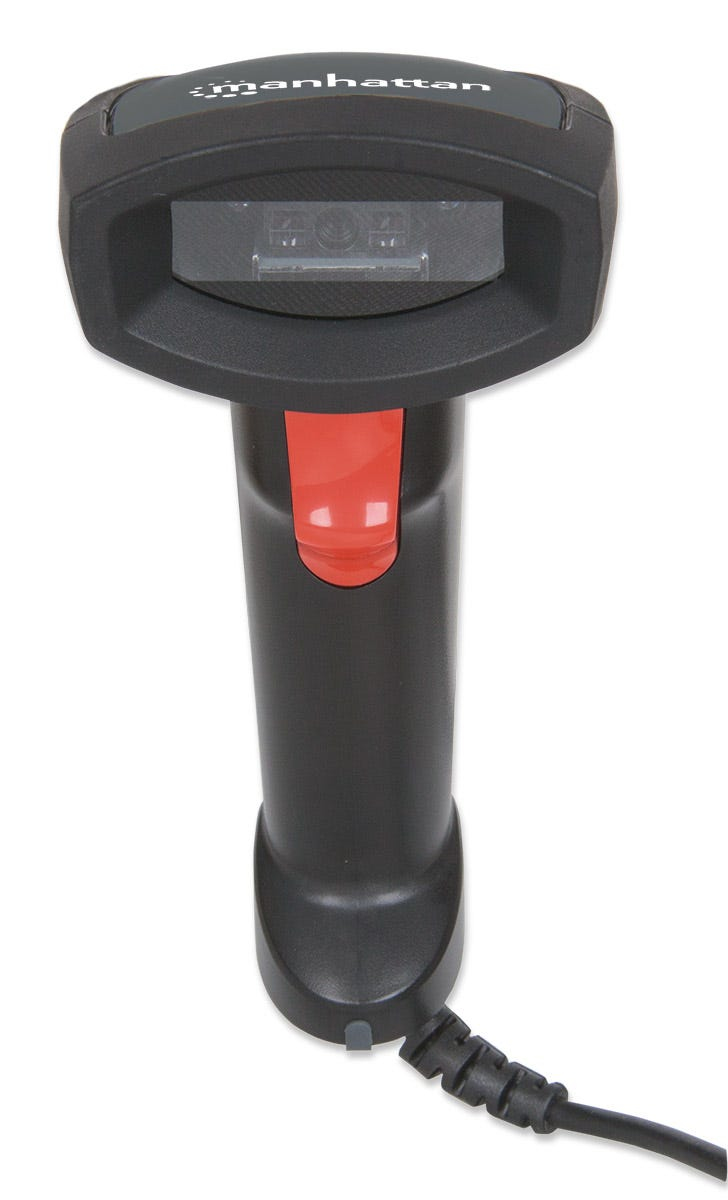

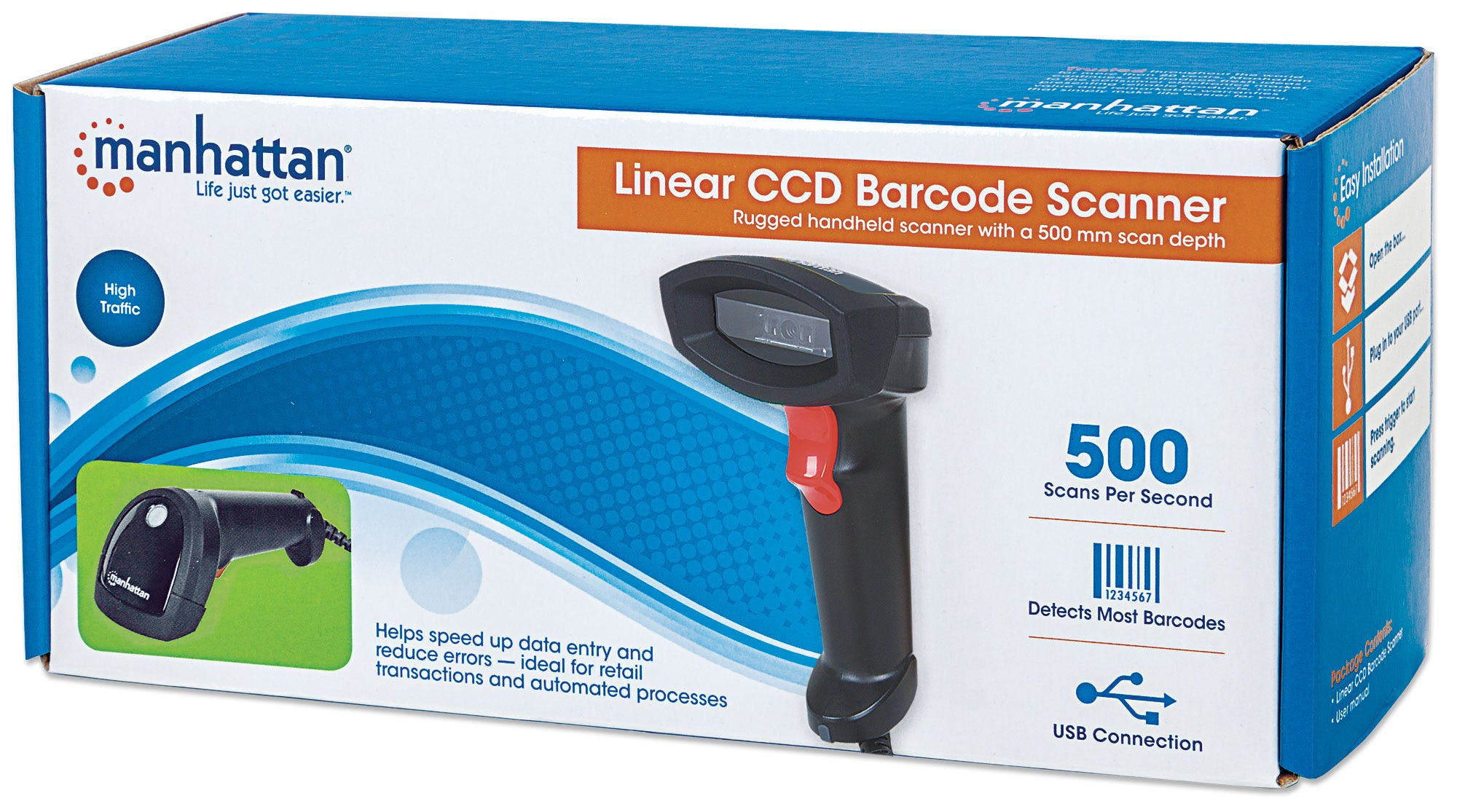

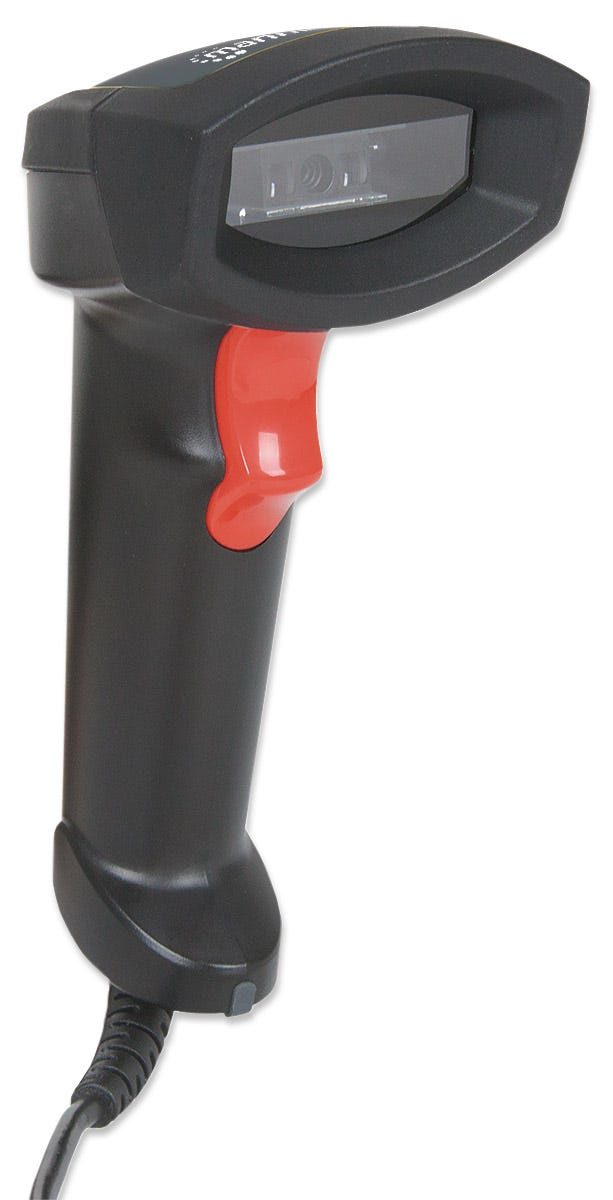

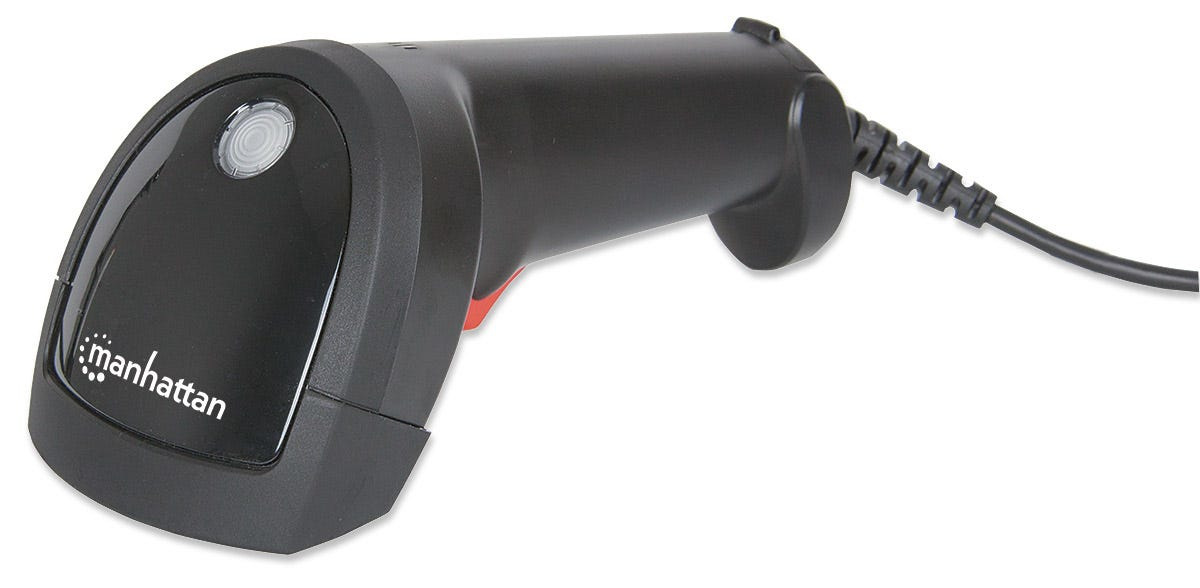

Linear CCD Handheld Barcode Scanner, USB
500mm Scan Depth, IP54 rating, Cable length 1.5m, Max Ambient Light 100,000 lux (sunlight), Black, Three Yea
Model 178433EAN 766623178433
27 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight150 g
- ColourBlack
- Input voltage5 V
- Width70 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 150 g
- Colour
- Black
- Input voltage
- 5 V
- Width
- 70 mm
- Brand
- Manhattan
- Category
- Barcode Reader
- Model
- 178433
- Part number
- 178433
- EAN / UPC
- 766623178433, 5054337301564
- Also known as
- Manhattan Linear CCD Handheld Barcode Scanner, USB, 500mm Scan Depth, IP54 rating, Cable length 1.5m, Max Ambient Light 100,000 lux (sunlight), Black, Three Yea
Specifications
27 specifications in 7 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN |
| Sensor type | CCD |
| Working distance | 50 cm |
| Read rate (max) | 500 reads/s |
| Light levels (direct sunlight) | 0 - 10000 lx |
| Wavelength | 632 nm |
| Maximum scan width | 50 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption | 70 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 180 mm |
| Height | 70 mm |
| Weight | 150 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
