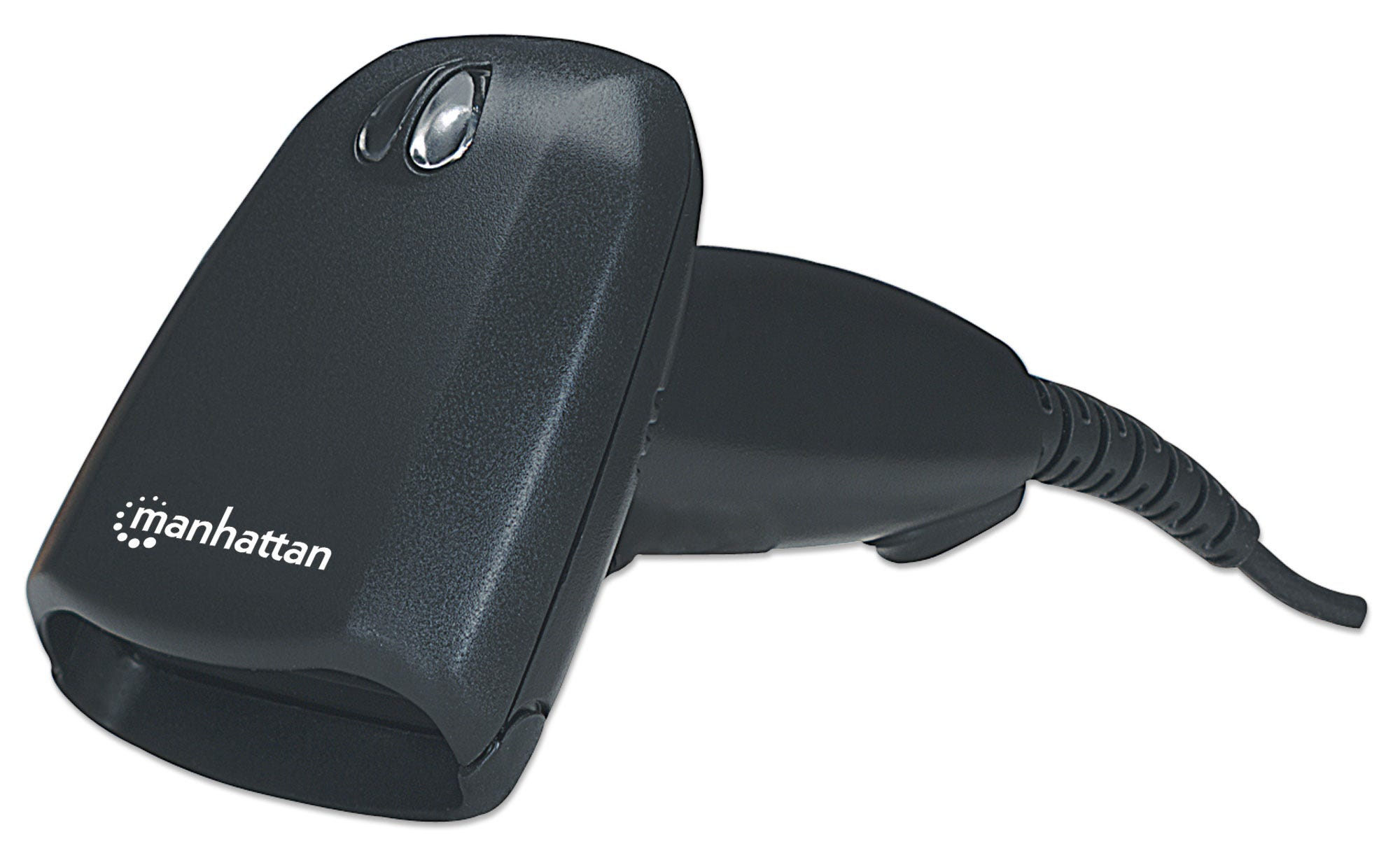

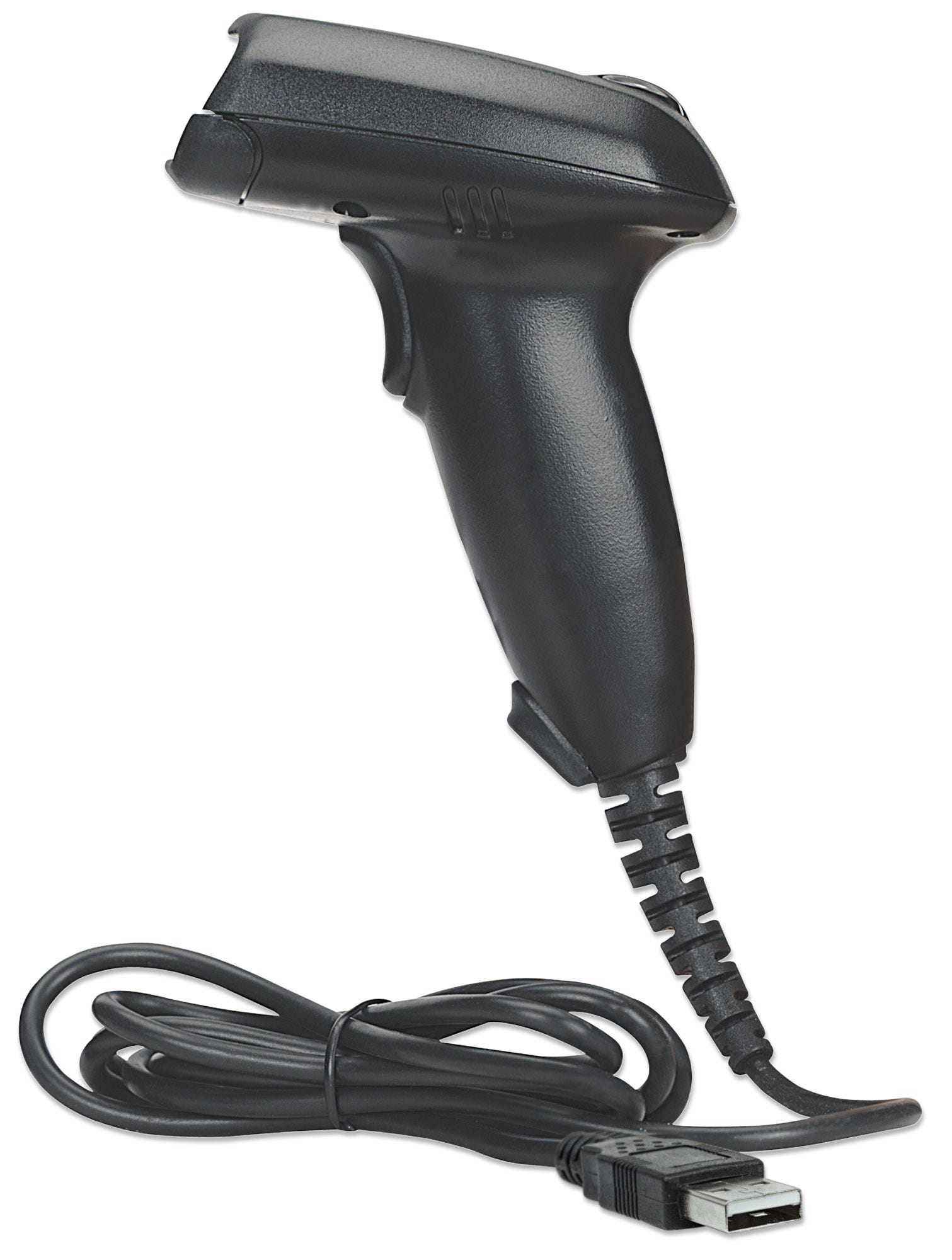

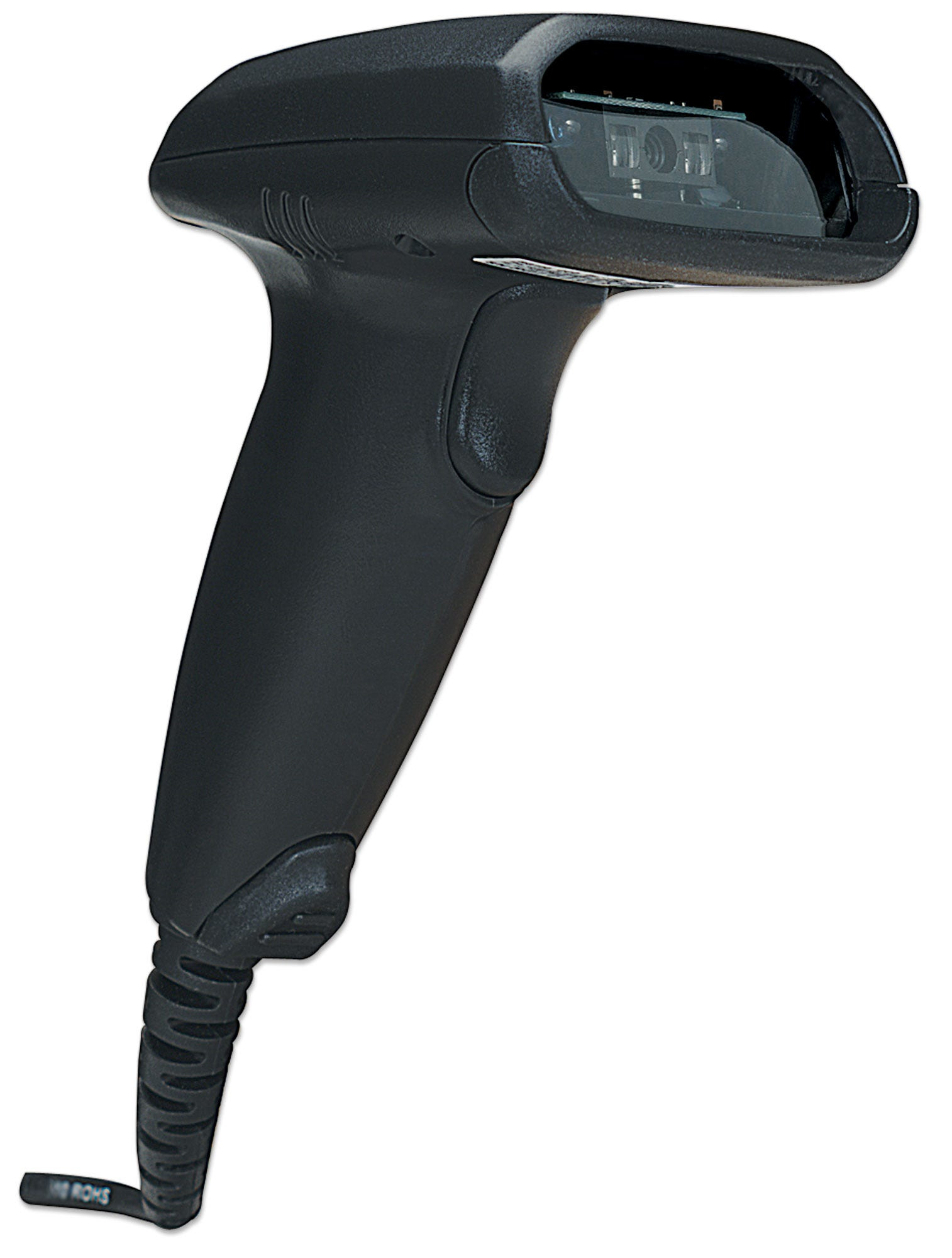

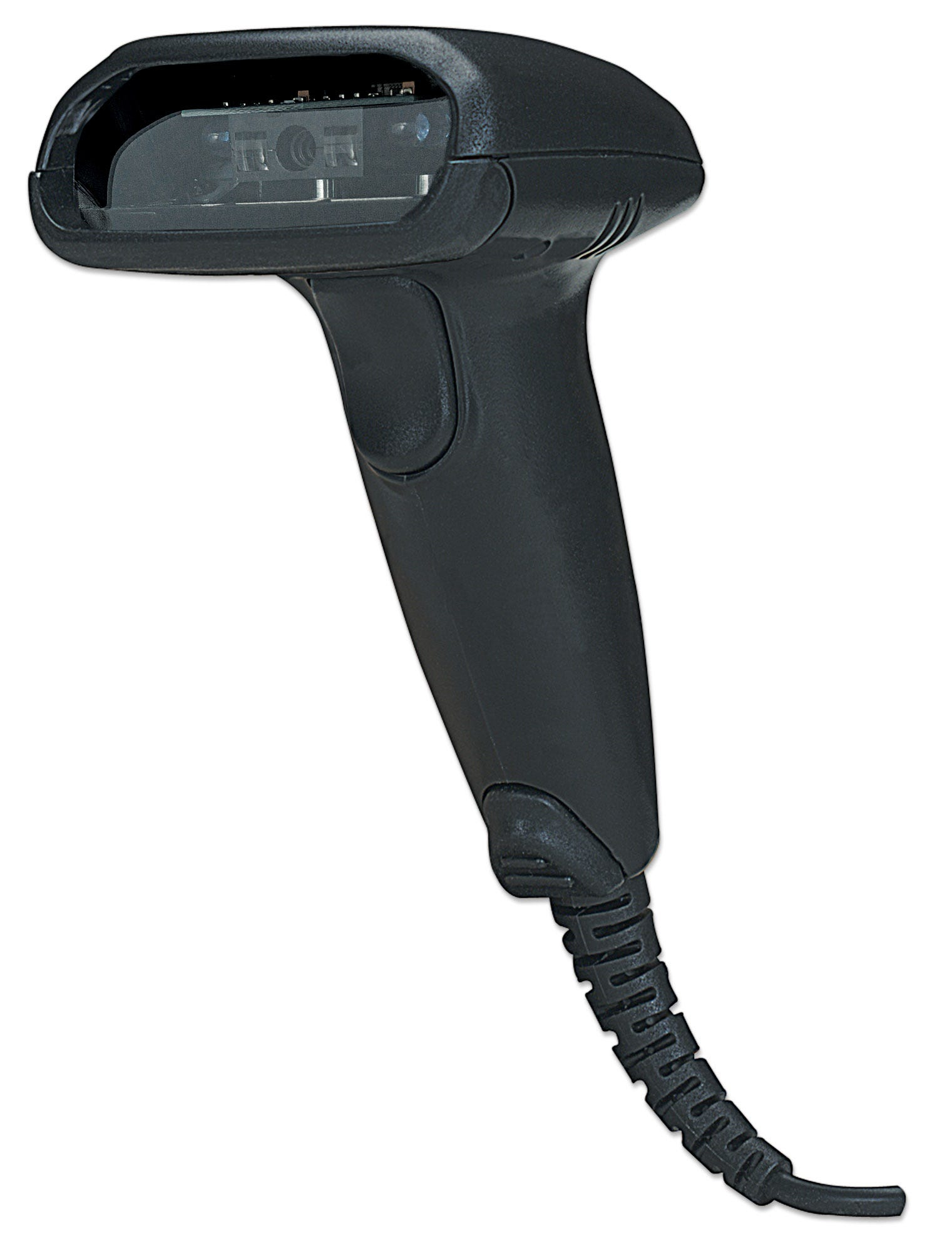

Long Range CCD Handheld Barcode Scanner, USB
500mm Scan Depth, Cable 1.5m, Max Ambient Light 10,000 lux (sunlight), Black, Three Year Warranty
Model 177672EAN 011411364377
27 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight440 g
- ColourBlack
- Power source typeUSB
- Width89 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 440 g
- Colour
- Black
- Power source type
- USB
- Width
- 89 mm
- Brand
- Manhattan
- Category
- Barcode Reader
- Model
- 177672
- Part number
- 177672
- EAN / UPC
- 011411364377, 766623177672, 807320283539
- Also known as
- Manhattan Long Range CCD Handheld Barcode Scanner, USB, 500mm Scan Depth, Cable 1.5m, Max Ambient Light 10,000 lux (sunlight), Black, Three Year Warranty
Specifications
27 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen |
| Sensor type | CCD |
| Working distance | 50 cm |
| Read rate (max) | 500 reads/s |
| Light levels (direct sunlight) | 0 - 10000 lx |
| Maximum scan width | 10 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Cable length | 1.5 m |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Certification | FCC, CE, USB |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 150 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89 mm |
| Depth | 177.5 mm |
| Height | 19 mm |
| Weight | 440 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84716070 |
