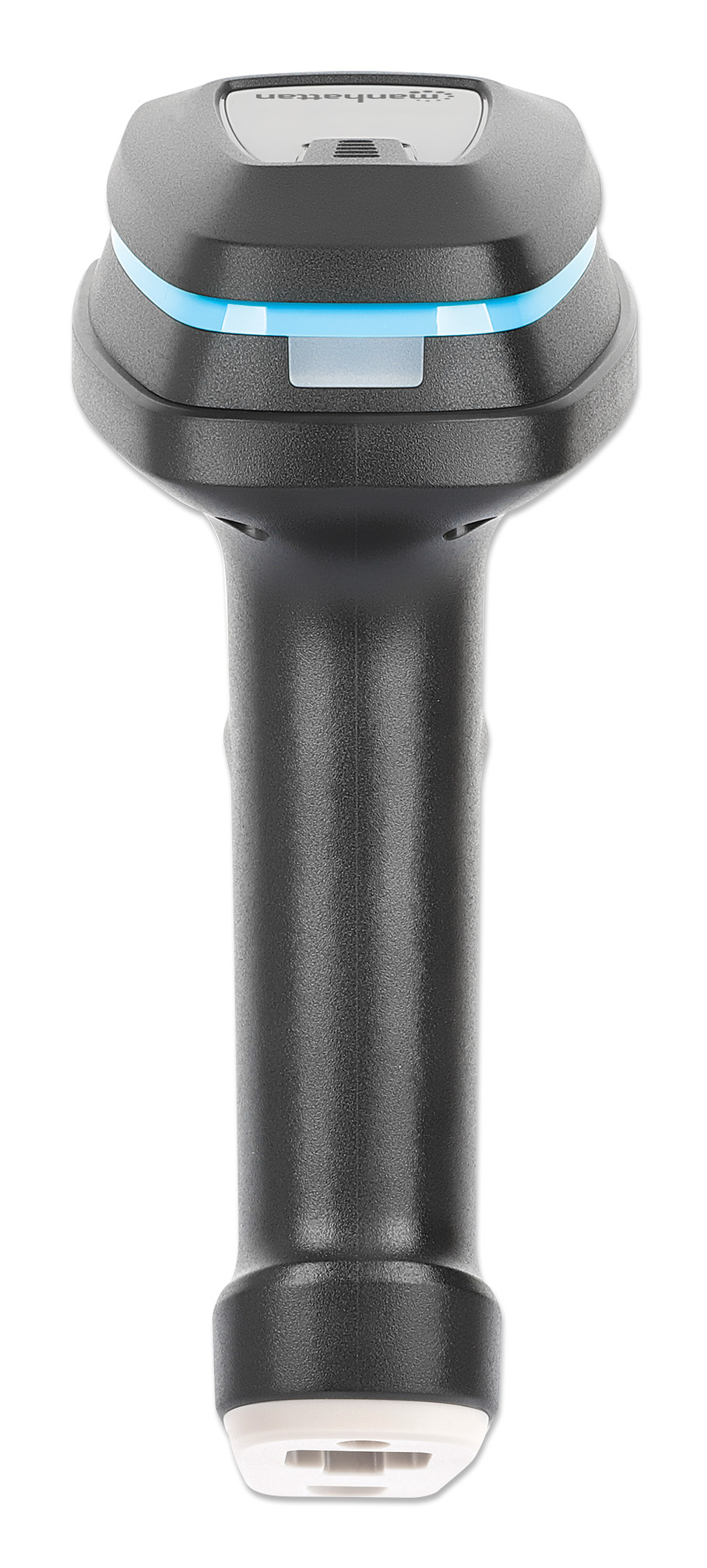

Manhattan 2D Long Range LED Barcode Scanner, USB
Manhattan

2D Long Range LED Barcode Scanner, USB

450mm Scan Depth, Max Ambient Light 100,000 lux (sunlight), Supports symbologies - 1D (x21 versions) and 2D (x

Model 154116EAN 766623154116

44 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight220 g
  • ColourBlack
  • Power source typeUSB
  • Width67 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
220 g
Colour
Black
Power source type
USB
Width
67 mm
Brand
Manhattan
Model
154116
Part number
154116
EAN / UPC
766623154116
Also known as
Manhattan 2D Long Range LED Barcode Scanner, USB, 450mm Scan Depth, Max Ambient Light 100,000 lux (sunlight), Supports symbologies - 1D (x21 versions) and 2D (x

Specifications

44 specifications in 9 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Dot Code A, Grid Matrix Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedChina Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN-13, JAN-8, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E
Sensor typeLED
Optical sensor resolution (W x H)1280 x 800 pixels
1D resolution (min)0.076 mm
2D resolution (min)0.18 mm
Working distance45 cm
Horizontal field of view45°
Vertical field of view36°
Read rate (max)60 reads/s
Light levels (direct sunlight)0 - 100000 lx

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.8 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
International Protection (IP) codeIP52
Protection featuresDrop resistant
Mean time between failures (MTBF)50000 h

Power

Power source typeUSB
Input voltage5 V
Power consumption280 mA

Weight & dimensions

Width67 mm
Depth87 mm
Height172 mm
Weight220 g

Packaging data

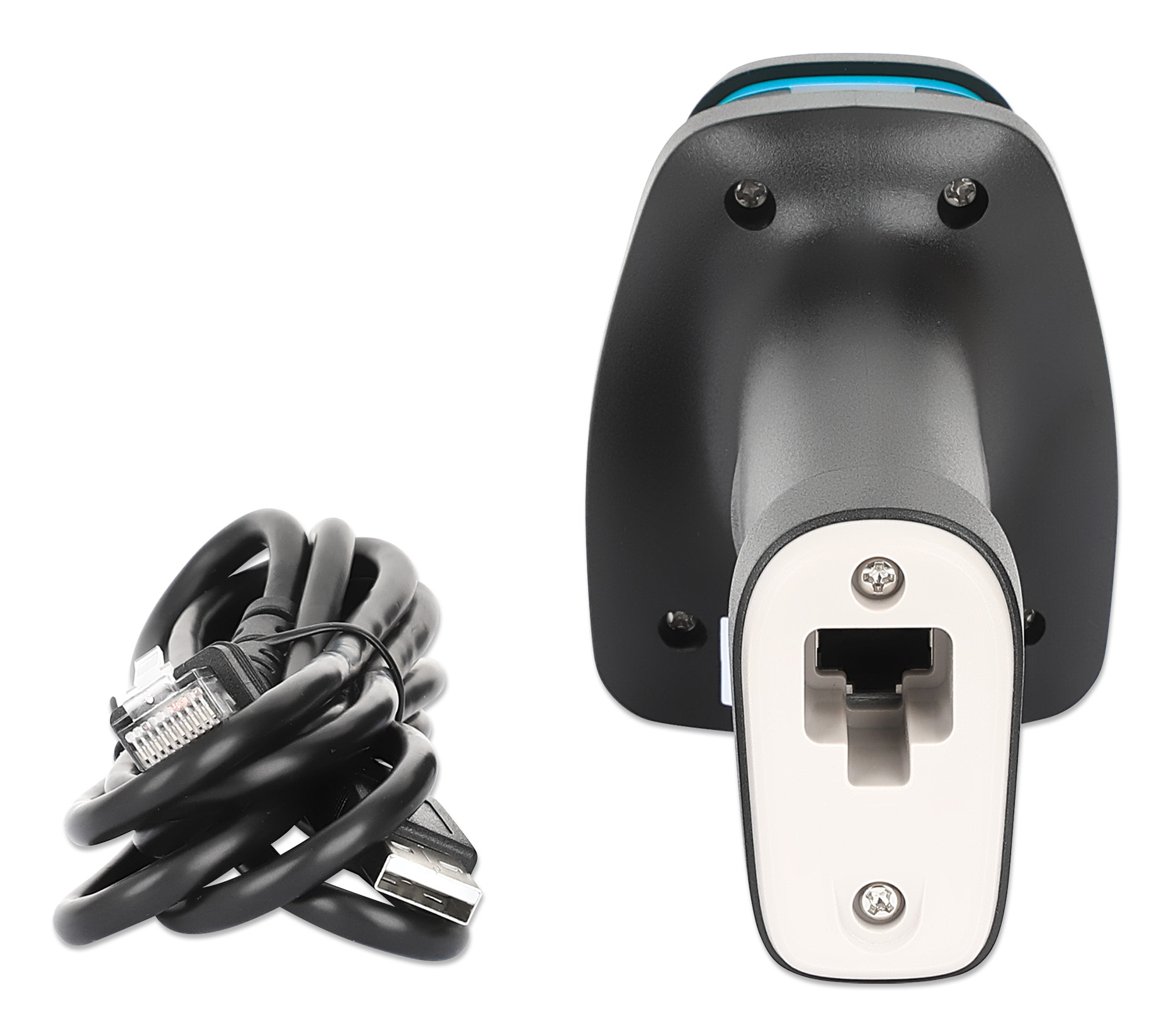

Cables includedUSB Type-A
Package width175 mm
Package depth80 mm
Package height108 mm
Package weight320 g

Operational conditions

Drop resistance1.2 m
Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-20 - 70 °C

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Warranty period3 year(s)

Logistics data

Master (outer) case gross weight12.8 kg
Master (outer) case height400 mm
Master (outer) case length565 mm
Master (outer) case width360 mm
Products per master (outer) case40 pc(s)
