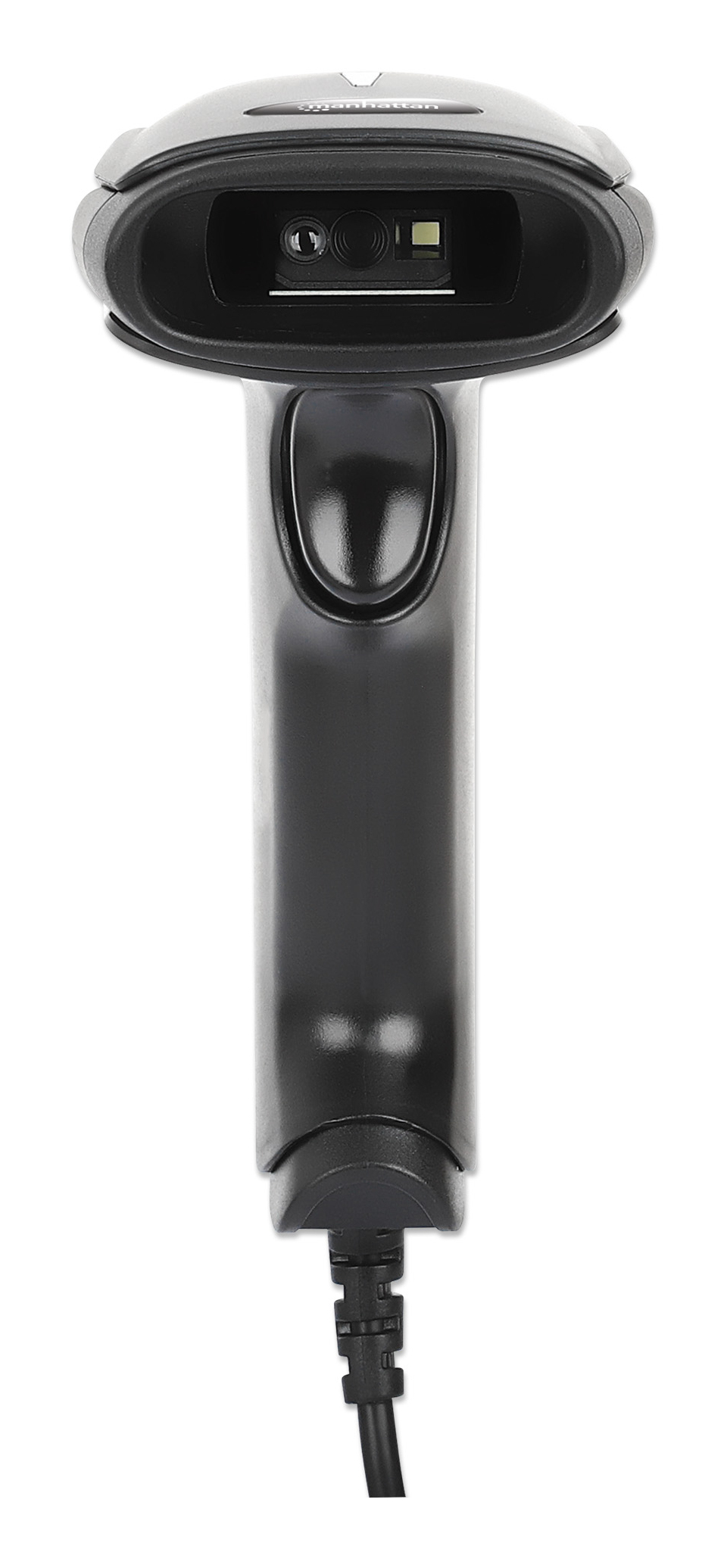

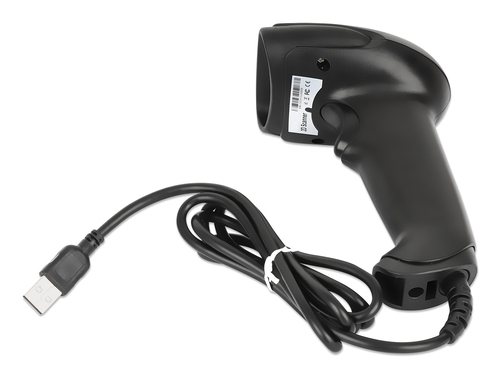

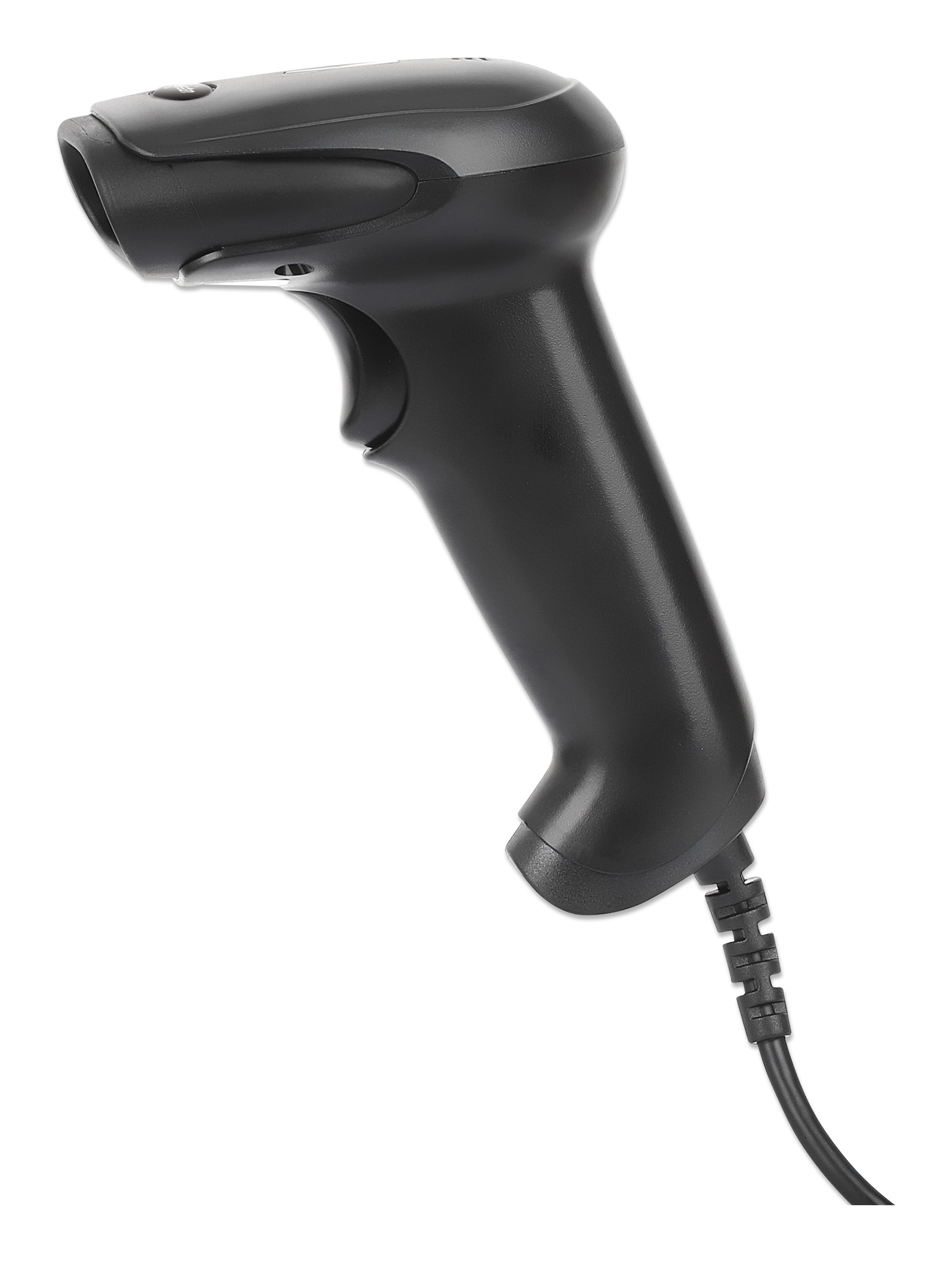

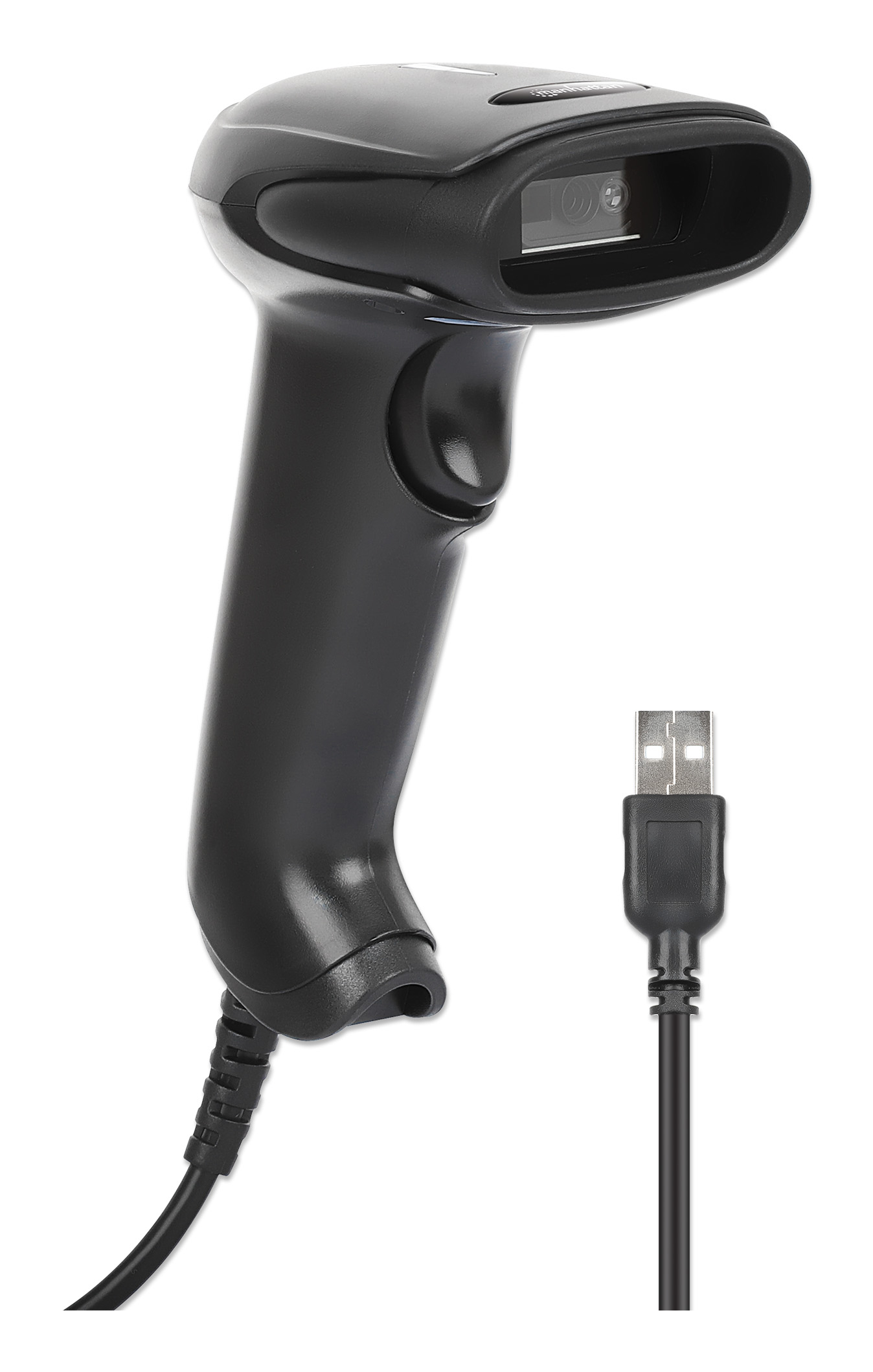

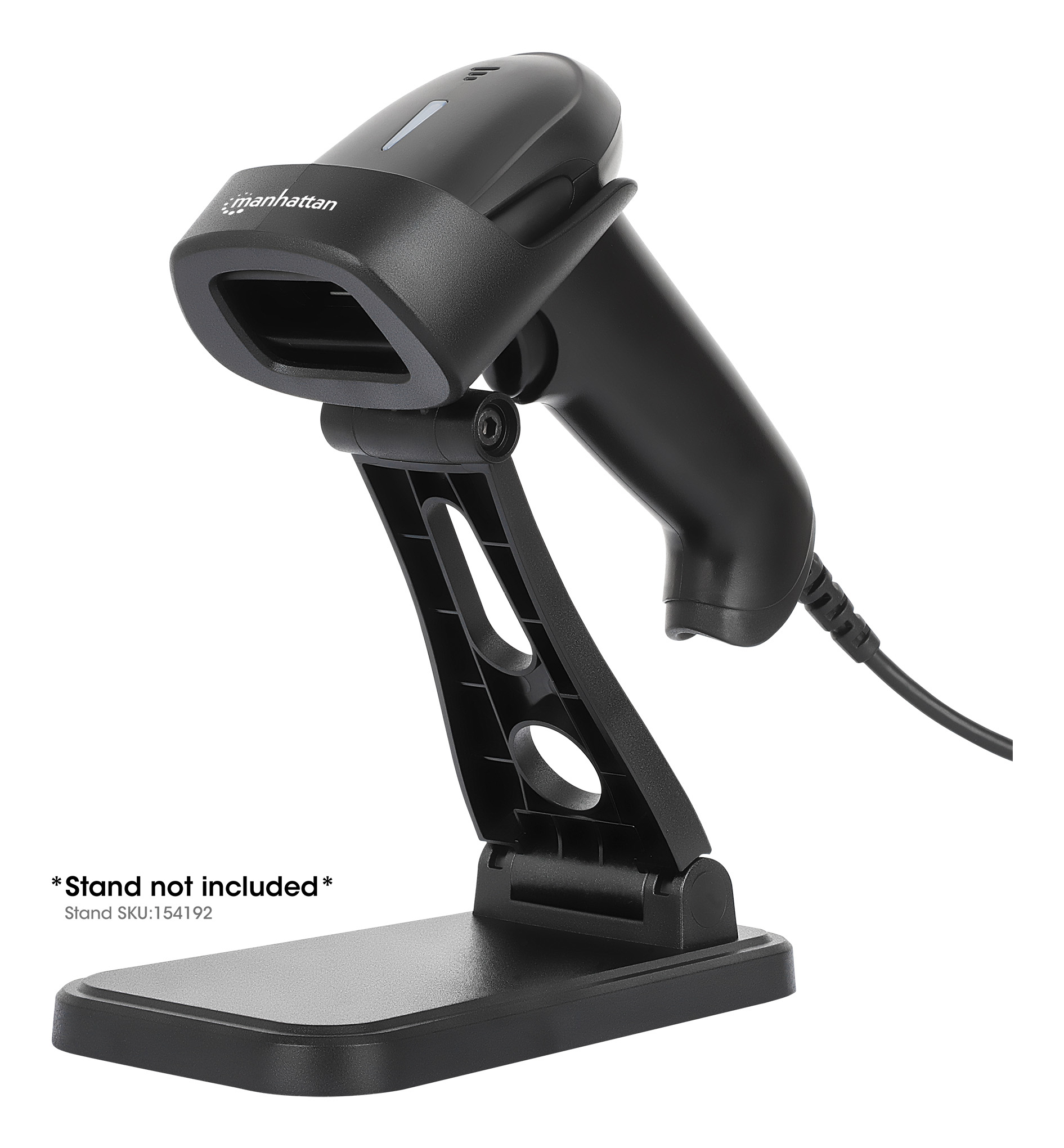

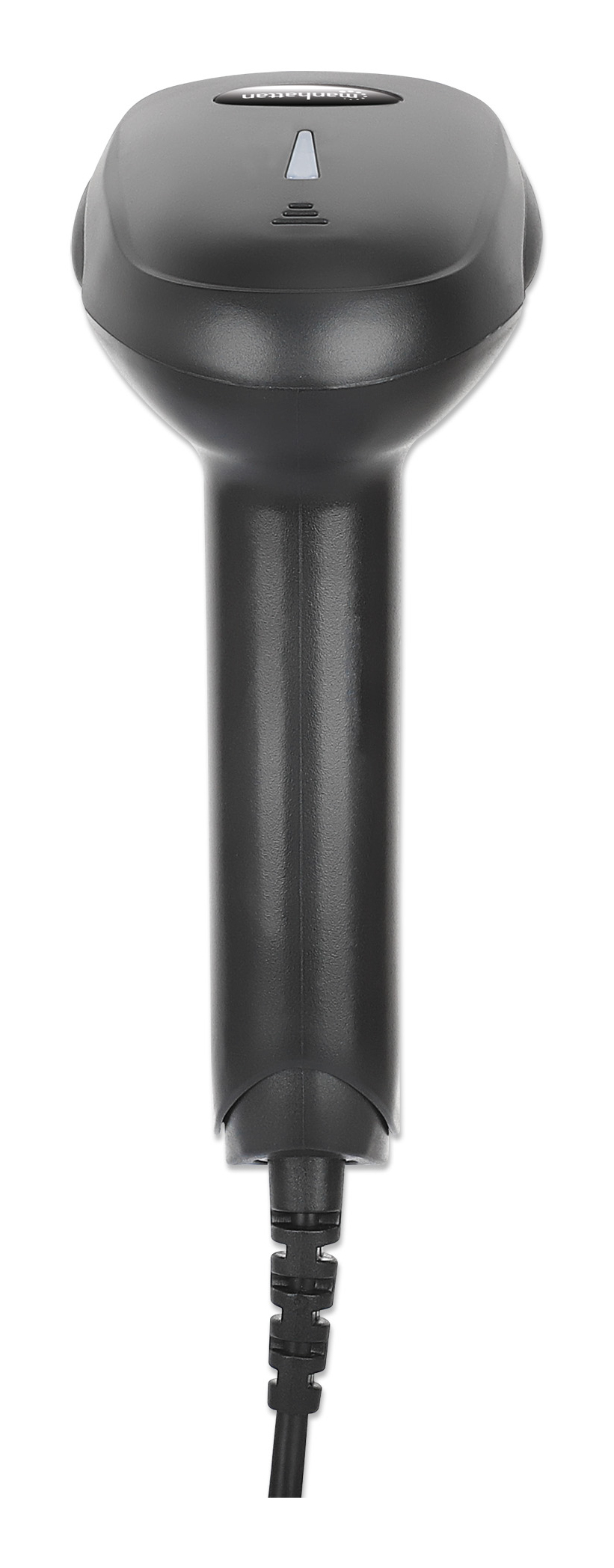

Manhattan Contact CCD Handheld Barcode Scanner, USB
Manhattan

Contact CCD Handheld Barcode Scanner, USB

60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Model 153997EAN 766623153997

42 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight110 g
  • ColourBlack
  • Power source typeUSB
  • Width70 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
110 g
Colour
Black
Power source type
USB
Width
70 mm
Brand
Manhattan
Model
153997
Part number
153997
EAN / UPC
766623153997
Also known as
Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Specifications

42 specifications in 9 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN-13, JAN-8, MSI, Matrix 2 of 5, UPC-A, UPC-E
Sensor typeLED
Optical sensor resolution (W x H)640 x 480 pixels
1D resolution (min)0.1 mm
2D resolution (min)0.17 mm
Working distance32 cm
Horizontal field of view36°
Vertical field of view28°
Read rate (max)100 reads/s
Light levels (direct sunlight)0 - 100000 lx

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.4 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Print contrast25%
Mean time between failures (MTBF)50000 h

Power

Power source typeUSB
Input voltage5 V
Power consumption130 mA

Weight & dimensions

Width70 mm
Depth150 mm
Height95 mm
Weight110 g

Packaging data

Package width195 mm
Package depth80 mm
Package height105 mm
Package weight260 g

Operational conditions

Drop resistance1.2 m
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Warranty period3 year(s)

Logistics data

Master (outer) case gross weight10.2 kg
Master (outer) case height400 mm
Master (outer) case length565 mm
Master (outer) case width360 mm
Products per master (outer) case40 pc(s)
