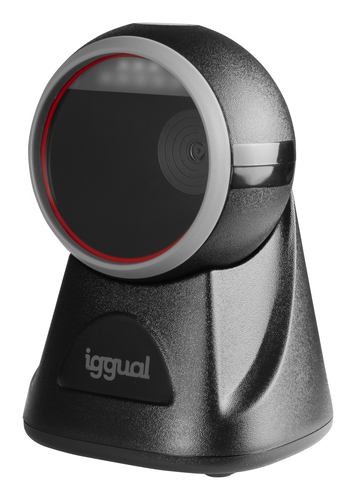

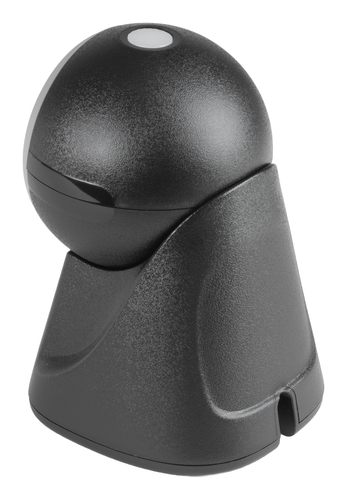

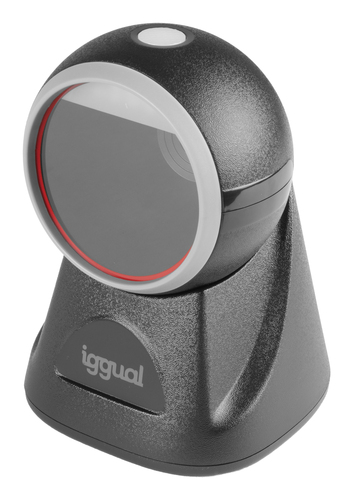

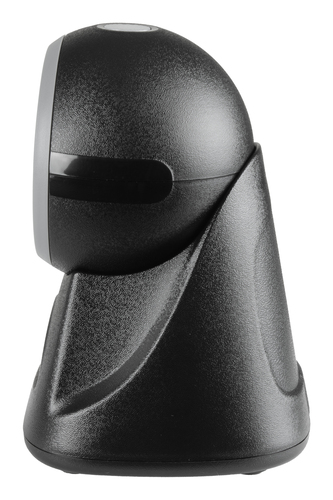

iggual L2DUSB-S-AX Fixed bar code reader 1D/2D CMOS Black
iggual

L2DUSB-S-AX Fixed bar code reader 1D/2D CMOS Black

Model L2DUSB-S-AXPart no. IGG320112EAN 8435364320112

42 specifications
  • ConnectivityWired
  • TypeFixed bar code reader
  • Weight280 g
  • ColourBlack
  • Power source typeBattery
  • Width106.2 mm
See all specifications

Overview

Connectivity
Wired
Type
Fixed bar code reader
Weight
280 g
Colour
Black
Power source type
Battery
Width
106.2 mm
Brand
iggual
Model
L2DUSB-S-AX
Part number
IGG320112
EAN / UPC
8435364320112
Also known as
iggual L2DUSB-S-AX Fixed bar code reader 1D/2D CMOS Black

Specifications

42 specifications in 7 groups

Scanning

TypeFixed bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISSN, JAN-13, JAN-8, MSI, Standard 25, UPC-A, UPC-E, UPC-E0, UPC-E1
Sensor typeCMOS
Trigger modeAuto-induction
Optical sensor resolution (W x H)640 x 480 pixels
Working distance range0 - 400 mm
Read rate (max)200 reads/s
Tilt reading angle0 - 65°
Depth of field range21 cm
Motion tolerance (cm/s)95
Tilt angle range0 - 65°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Ethernet LANYes
Cable length1.8 m

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polymethyl methacrylate (PMMA), Thermoplastic urethane (TPU)
International Protection (IP) codeIP52
Protection featuresElectrostatic Discharge (ESD) protection
LED indicatorsYes
Ambient lightingYes
Print contrast25%

Power

Power source typeBattery
Power consumption (typical)0.9 W
Power consumption (standby)0.6 W
Input current0.18 A

Weight & dimensions

Width106.2 mm
Depth105 mm
Height155.3 mm
Weight280 g

Operational conditions

Drop resistance1.2 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C

Other features

Compatible operating systemsWindows, macOS, Linux, Android
Linux operating systems supportedYes
Mobile operating systems supportedAndroid
Quick start guideYes
Windows operating systems supportedYes
