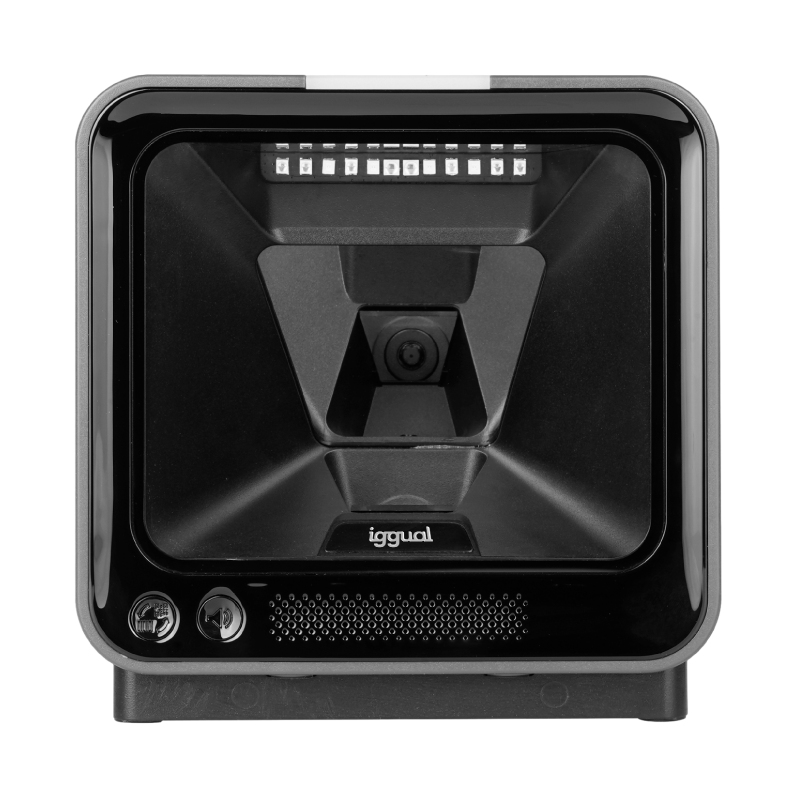

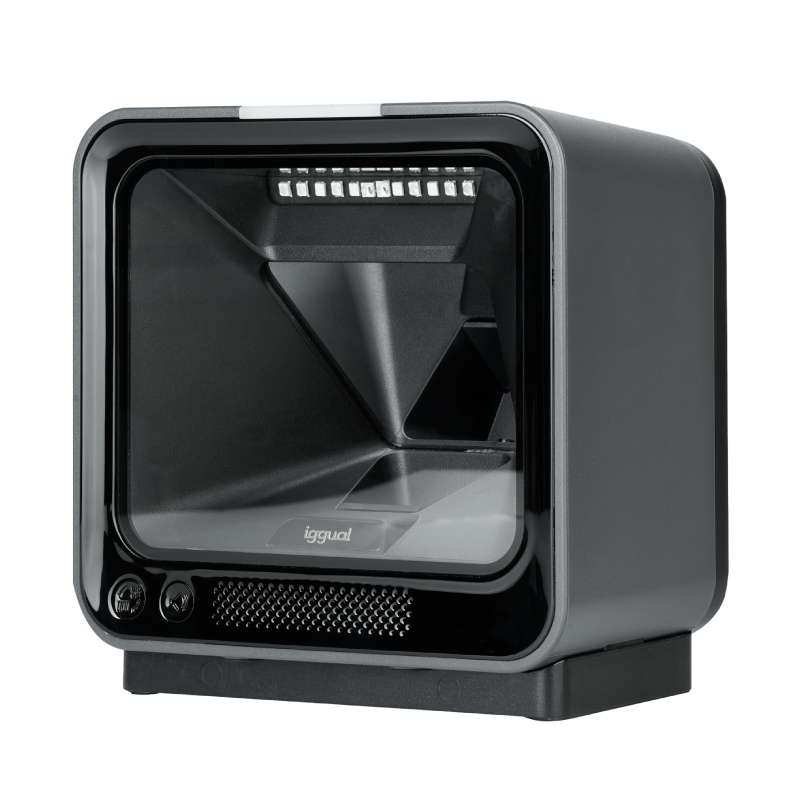

iggual L2DUSB-S-AR-AX Fixed bar code reader 1D/2D CMOS Grey, Black
iggual

L2DUSB-S-AR-AX Fixed bar code reader 1D/2D CMOS Grey, Black

Model L2DUSB-S-AR-AXPart no. IGG320815EAN 8435364320815

44 specifications
  • ConnectivityWired
  • TypeFixed bar code reader
  • Weight415 g
  • ColourGrey, Black
  • Power source typeDC
  • Width145 mm
See all specifications

Overview

Connectivity
Wired
Type
Fixed bar code reader
Weight
415 g
Colour
Grey, Black
Power source type
DC
Width
145 mm
Brand
iggual
Model
L2DUSB-S-AR-AX
Part number
IGG320815
EAN / UPC
8435364320815
Also known as
iggual L2DUSB-S-AR-AX Fixed bar code reader 1D/2D CMOS Grey, Black

Specifications

44 specifications in 8 groups

Scanning

TypeFixed bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedQR Code, Micro QR Code, PDF417, Data Matrix, MicroPDF417, Aztec Code, MaxiCode, Han Xin
Linear (1D) barcodes supportedStandard 25, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Matrix 2 of 5, GS1 Databar RSS14, Code 39, Code 39 (ASCII), Code 93, Code 128, Code 11, UPC-E0, UPC-E1, EAN 128, GS1-128 (UCC/EAN-128), Codabar, MSI, EAN-13, JAN-13, UPC-A, EAN-8, JAN-8
Sensor typeCMOS
Trigger modeContinuous, Auto-induction
Optical sensor resolution (W x H)1280 x 800 pixels
Working distance range0 - 270 mm
Horizontal field of view36.4°
Vertical field of view27.8°
Read rate (max)200 reads/s
Light levels (direct sunlight)0 - 100000 lx
Tilt reading angle-65 - 65°
Pitch reading angle-70 - 70°
Yaw reading angle0 - 360°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.8 m

Performance

Product colourGrey, Black
Housing materialAcrylonitrile butadiene styrene (ABS), Thermoplastic urethane (TPU), Polycarbonate (PC), Polymethyl methacrylate (PMMA)

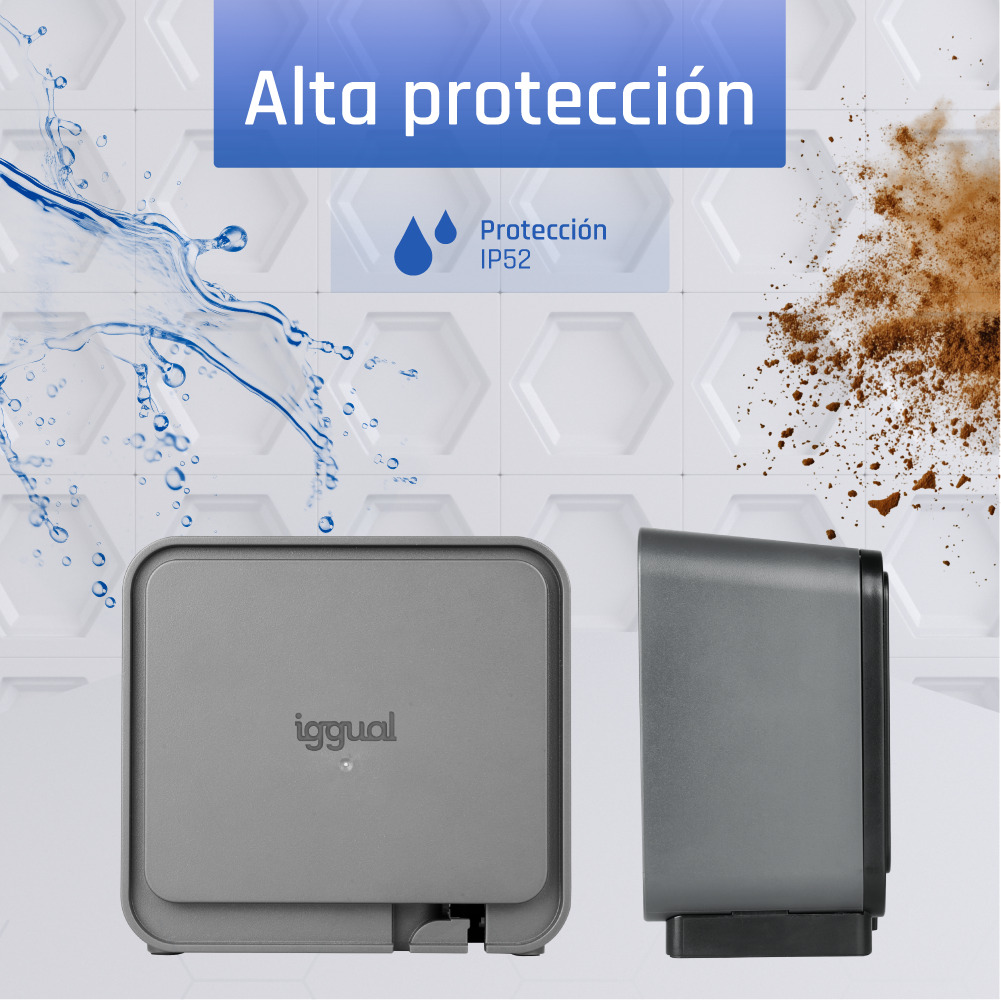

International Protection (IP) codeIP52
Protection featuresElectrostatic Discharge (ESD) protection
LED indicatorsYes
BuzzerYes
Print contrast20%
CertificationIEC 62471

Power

Power source typeDC
Power consumption (typical)2.25 W
Power consumption (standby)1.1 W
AC adapter output voltage5 V
Power consumption450 mA

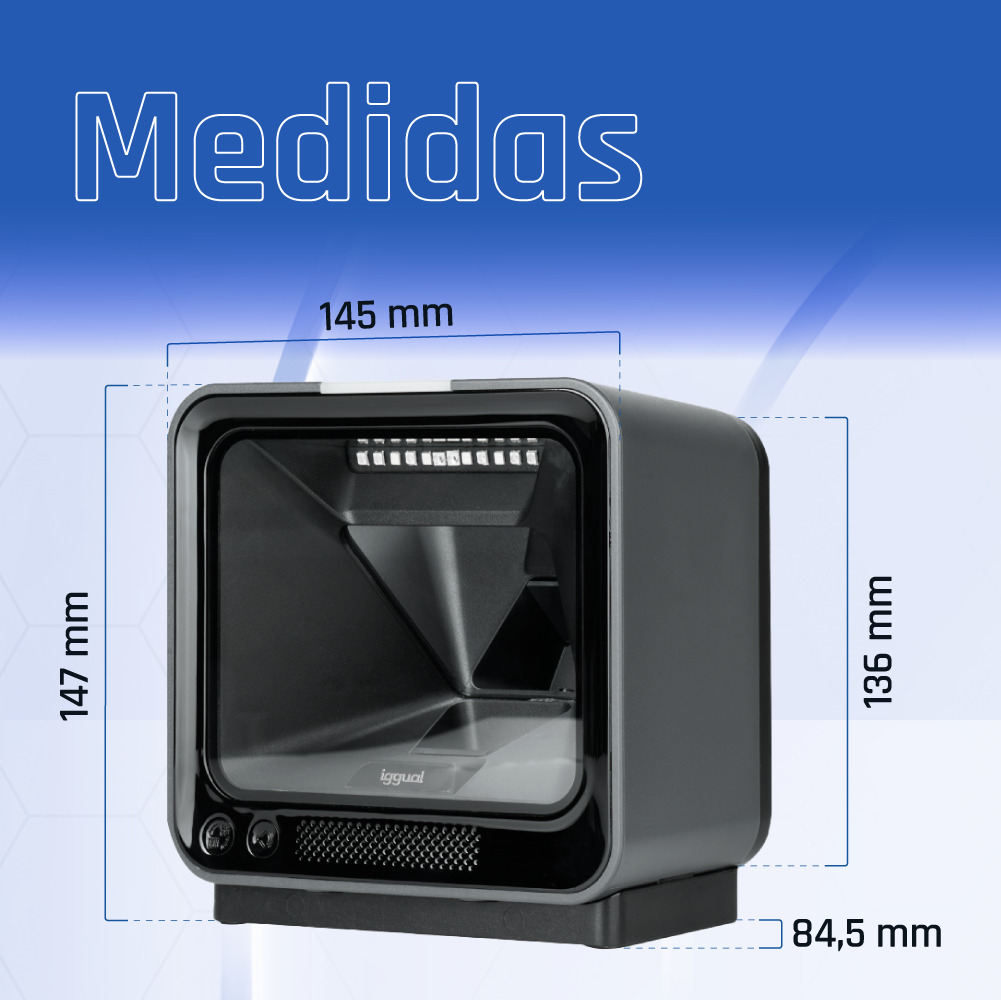

Weight & dimensions

Width145 mm
Depth84.5 mm
Height147 mm
Base weight105 g
Weight415 g

Packaging data

Cables includedRJ-45
Stand includedYes

Operational conditions

Drop resistance1 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-10 - 50 °C

Other features

Compatible operating systemsWindows, macOS, Linux, Android
