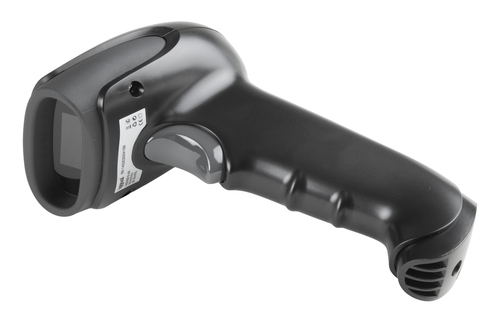

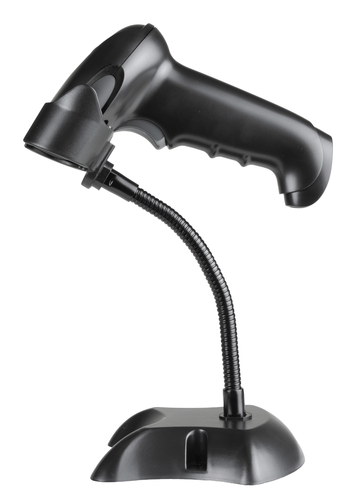

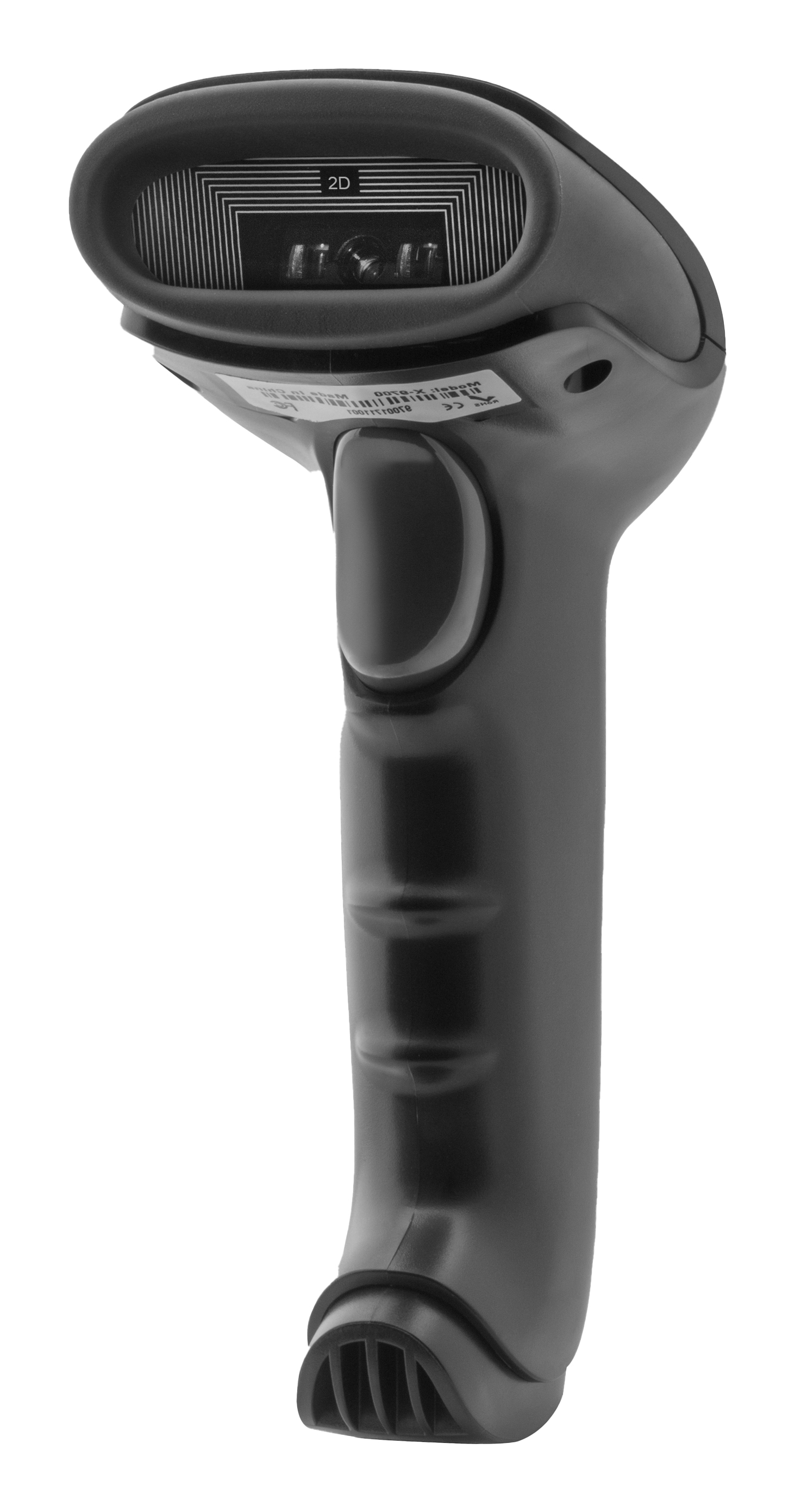

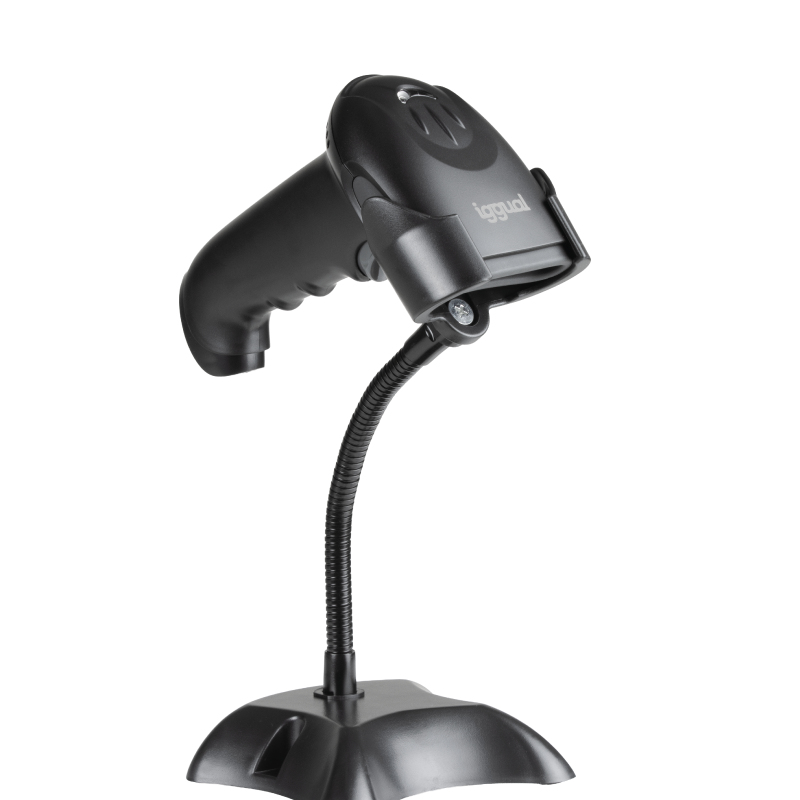

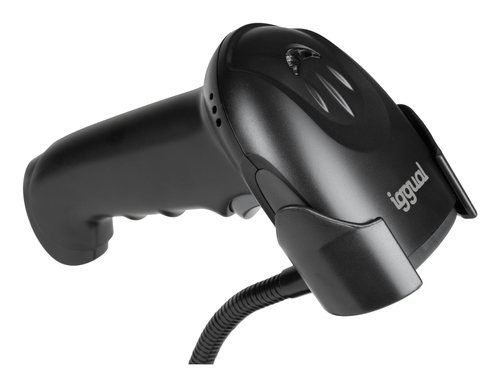

iggual L2DUSB-G-AX Handheld bar code reader 1D/2D CMOS Black
iggual

L2DUSB-G-AX Handheld bar code reader 1D/2D CMOS Black

Model L2DUSB-G-AXPart no. IGG320143EAN 8435364320143

39 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight124 g
  • ColourBlack
  • Power consumption (typical)0.85 W
  • Width88.7 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
124 g
Colour
Black
Power consumption (typical)
0.85 W
Width
88.7 mm
Brand
iggual
Model
L2DUSB-G-AX
Part number
IGG320143
EAN / UPC
8435364320143
Also known as
iggual L2DUSB-G-AX Handheld bar code reader 1D/2D CMOS Black

Specifications

39 specifications in 7 groups

Scanning

TypeHandheld bar code reader
Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, Not supported, PDF417, QR Code
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISSN, JAN-13, JAN-8, MSI, Standard 25, UPC-A, UPC-E
Sensor typeCMOS
Trigger modeAuto-induction, Continuous, Manual
Optical sensor resolution (W x H)640 x 480 pixels
Working distance range10 - 600 mm
Read rate (max)200 reads/s
Tilt reading angle0 - 45°
Depth of field range15 cm
Motion tolerance (cm/s)25
Tilt angle range0 - 45°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Thermoplastic elastomer (TPE)
International Protection (IP) codeIP52
Protection featuresElectrostatic Discharge (ESD) protection
LED indicatorsYes
Ambient lightingYes
Print contrast30%

Power

Power consumption (typical)0.85 W
Input voltage5 V
Input current0.168 A

Weight & dimensions

Width88.7 mm
Depth66.3 mm
Height180.1 mm
Weight124 g

Operational conditions

Drop resistance1.5 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C

Other features

Compatible operating systemsWindows, macOS, Linux, Android
Linux operating systems supportedYes
Mobile operating systems supportedAndroid
Quick start guideYes
Windows operating systems supportedYes
