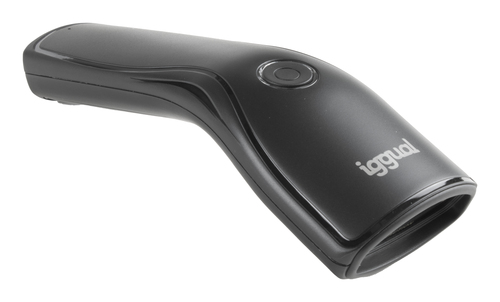

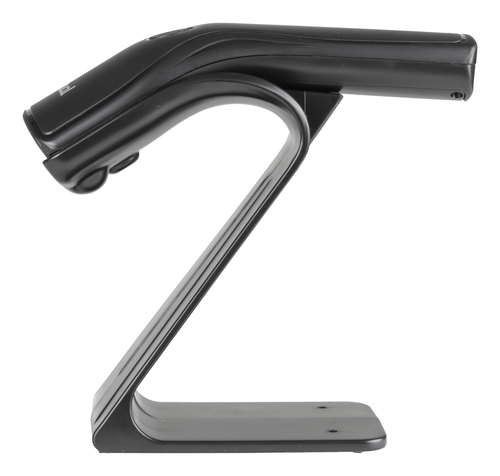

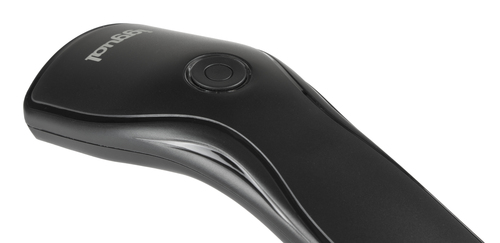

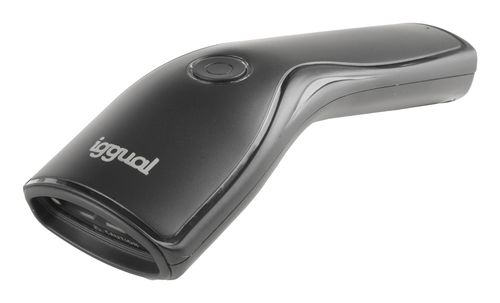

L2DUSB-B-AX Handheld bar code reader 1D/2D CMOS Black
Model L2DUSB-B-AXPart no. IGG320136EAN 8435364320136
41 specifications
- ConnectivityWired
- TypeHandheld bar code reader
- Weight92 g
- ColourBlack
- Power source typeUSB
- Width47 mm
Overview
- Connectivity
- Wired
- Type
- Handheld bar code reader
- Weight
- 92 g
- Colour
- Black
- Power source type
- USB
- Width
- 47 mm
- Brand
- iggual
- Category
- Barcode Reader
- Model
- L2DUSB-B-AX
- Part number
- IGG320136
- EAN / UPC
- 8435364320136
- Also known as
- iggual L2DUSB-B-AX Handheld bar code reader 1D/2D CMOS Black
Specifications
41 specifications in 8 groups
Scanning
| Specification | Value |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, Not supported, PDF417, QR Code |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISSN, JAN-13, JAN-8, MSI, Standard 25, UPC-A, UPC-E |
| Sensor type | CMOS |
| Trigger mode | Auto-induction, Continuous, Manual |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance range | 10 - 1200 mm |
| Read rate (max) | 200 reads/s |
| Tilt reading angle | 0 - 65° |
| Depth of field range | 15 cm |
| Motion tolerance (cm/s) | 25 |
| Tilt angle range | 0 - 37° |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polymethyl methacrylate (PMMA), Thermoplastic urethane (TPU) |
| International Protection (IP) code | IP52 |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Ambient lighting | Yes |
| Print contrast | 30% |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 0.85 W |
| Input voltage | 5 V |
| Input current | 0.168 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 47 mm |
| Depth | 59 mm |
| Height | 165 mm |
| Weight | 92 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-C |
Operational conditions
| Specification | Value |
|---|---|
| Drop resistance | 1.5 m |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | 0 - 50 °C |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows, macOS, Linux, Android |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Quick start guide | Yes |
| Windows operating systems supported | Yes |
