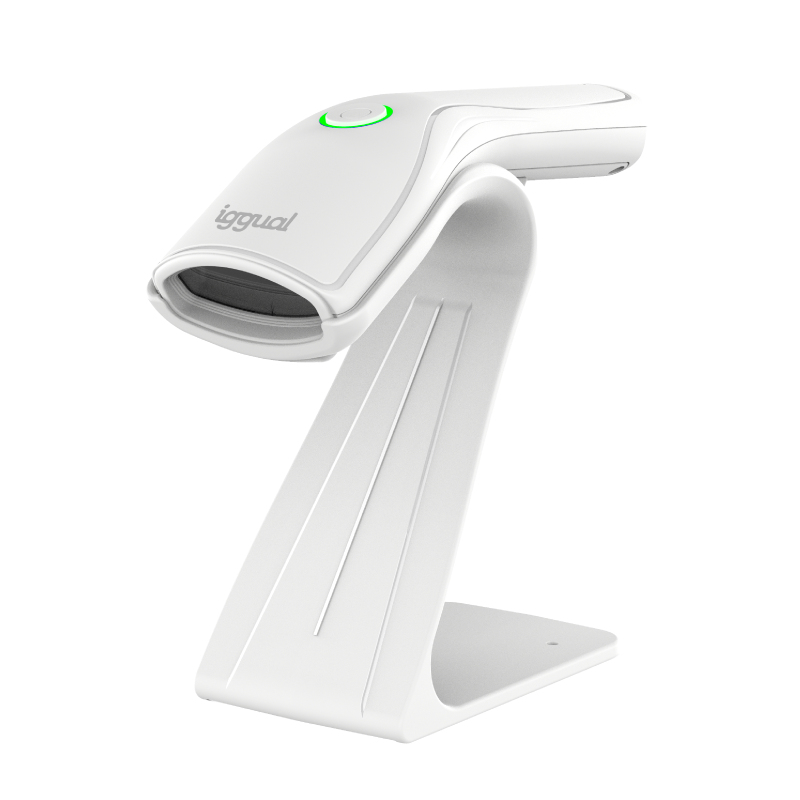

L2DUSB-B-AW Handheld bar code reader 2D CMOS White
iggual

L2DUSB-B-AW Handheld bar code reader 2D CMOS White

Model L2DUSB-B-AWPart no. IGG320518EAN 8435364320518

35 specifications
  • ConnectivityWired
  • TypeHandheld bar code reader
  • Weight92 g
  • ColourWhite
  • Power source typeDC
  • Width165 mm
See all specifications

Overview

Connectivity
Wired
Type
Handheld bar code reader
Weight
92 g
Colour
White
Power source type
DC
Width
165 mm
Brand
iggual
Model
L2DUSB-B-AW
Part number
IGG320518
EAN / UPC
8435364320518
Also known as
iggual L2DUSB-B-AW Handheld bar code reader 2D CMOS White

Specifications

35 specifications in 7 groups

Scanning

TypeHandheld bar code reader
Scanner type2D
2D (matrix & stacked) barcodes supportedQR Code, Micro QR Code, Data Matrix, MicroPDF417, PDF417, Aztec Code, Han Xin, MaxiCode
Linear (1D) barcodes supportedCode 25 (IR 2 of 5), Standard 25, Matrix 2 of 5, GS1 Databar RSS14, Code 39, Code 39 (ASCII), Code 93, Code 128, Code 11, UPC-E1, UPC-E0, EAN 128, GS1-128 (UCC/EAN-128), Codabar, MSI, EAN-13, JAN-13, UPC-A, JAN-8, EAN-8
Sensor typeCMOS
Optical sensor resolution (W x H)640 x 480 pixels
Working distance range10 - 2000 mm
Read rate (max)200 reads/s
Tilt reading angle0 - 37°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB
Cable length1.5 m

Performance

Product colourWhite
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Thermoplastic urethane (TPU), Polymethyl methacrylate (PMMA)
International Protection (IP) codeIP52
Protection featuresDrop resistant, Electrostatic Discharge (ESD) protection
LED indicatorsYes
BuzzerYes
Ambient lightingYes
Print contrast30%

Power

Power source typeDC
Power consumption (typical)0.85 W
Power consumption (standby)0.55 W
AC adapter output voltage5 V
Power consumption168 mA

Weight & dimensions

Width165 mm
Depth47 mm
Height59 mm
Weight92 g

Packaging data

Cables includedUSB Type-A to USB Type-C

Operational conditions

Drop resistance1.5 m
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)20 - 85%
Storage temperature (T-T)0 - 50 °C
