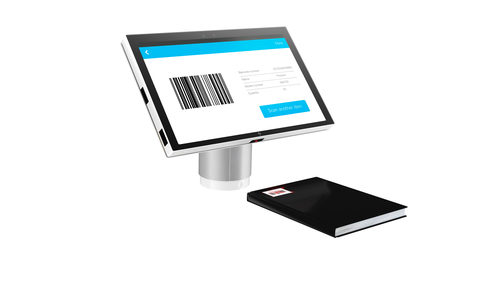

HP Engage One Pro Bar Code Scanner
HP

Engage One Pro Bar Code Scanner

Model Engage One Pro Bar Code ScannerPart no. 9YH49AA#ABBEAN 195161905155

29 specifications
  • ConnectivityWired
  • Weight15 g
  • ColourBlack
  • Scanner type1D/2D
  • Power source typeDC
  • Width30.4 mm
See all specifications

Overview

Connectivity
Wired
Weight
15 g
Colour
Black
Scanner type
1D/2D
Power source type
DC
Width
30.4 mm
Brand
HP
Model
Engage One Pro Bar Code Scanner
Part number
9YH49AA#ABB
EAN / UPC
195161905155
Also known as
HP Engage One Pro Bar Code Scanner

Specifications

29 specifications in 8 groups

Scanning

Scanner type1D/2D
2D (matrix & stacked) barcodes supportedAztec Code, Chinese Sensible Code, Code 1, Data Matrix, GM Code, MaxiCode, MicroPDF417, Micro QR Code, PDF417, QR Code
Linear (1D) barcodes supportedGS1 DataBar
OCR types supportedPassport OCR
Sensor typeCMOS
Optical sensor resolution (W x H)1200 x 800 pixels
Horizontal field of view42°
Vertical field of view28°
Tilt reading angle0 - 360°
Pitch reading angle-60 - 60°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Product colourBlack
International Protection (IP) codeIP54
Built-in displayNo
Country of originChina, Thailand, Taiwan
CertificationFCC Part15, Class B, CE EMC Class B, IEC62471, RoHS, IEC 62368-1

Power

Power source typeDC

Weight & dimensions

Width30.4 mm
Depth45.8 mm
Height9.8 mm
Weight15 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 40 °C
Storage temperature (T-T)-40 - 70 °C

Logistics data

UNSPSC-code43211701

Other features

Compatible operating systemsWindows 10 Pro 64bit, Windows 10 IoT Enterprise 2016 LTSB 64bit (RS1), Windows 10 IoT Enterprise 2019 LTSC 64bit (RS5), Red Hat/CentOS 5.6.8 and above (64 bit), Suse Linux Enterprise 11/12 SP3 and above (64 bit), Ubuntu 12.04/14.04 LTS and above (64 bit), Android 8.0 and above.
Linux operating systems supportedSUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, Ubuntu 12.04, Ubuntu 14.04
Windows operating systems supportedWindows 8, Windows 10 Pro x64, Windows 10 Pro, Windows 10 Enterprise x64, Windows 10 Enterprise, Windows 10 x64, Windows 10, Windows 11 Enterprise x64, Windows 11 Enterprise, Windows 11 x64, Windows 11
