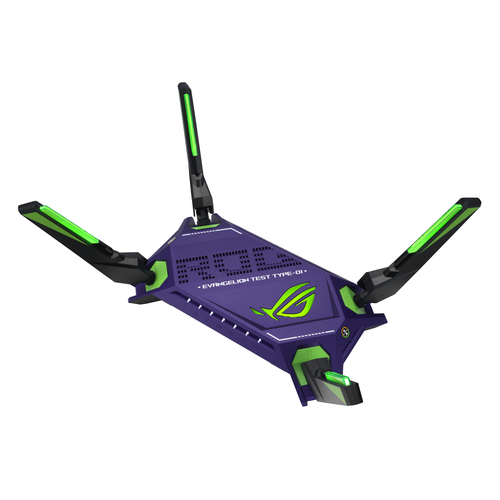

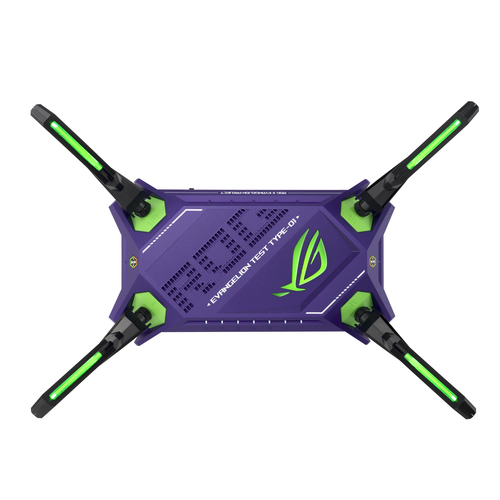

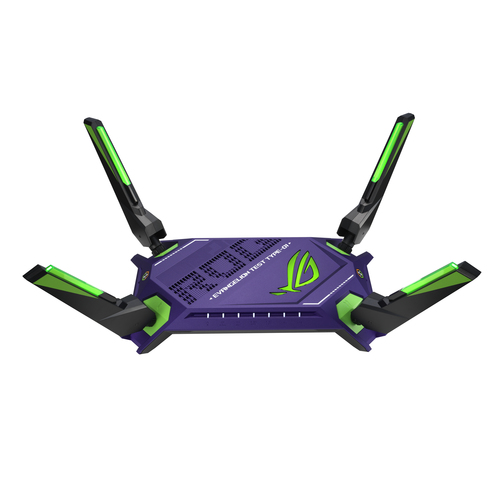

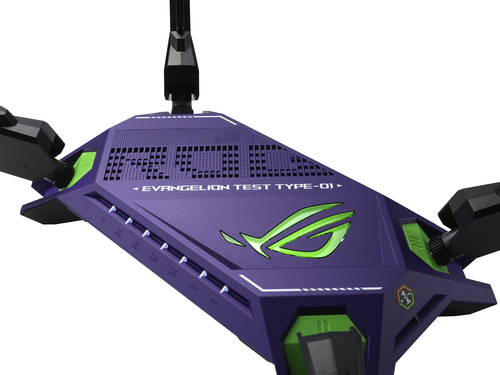

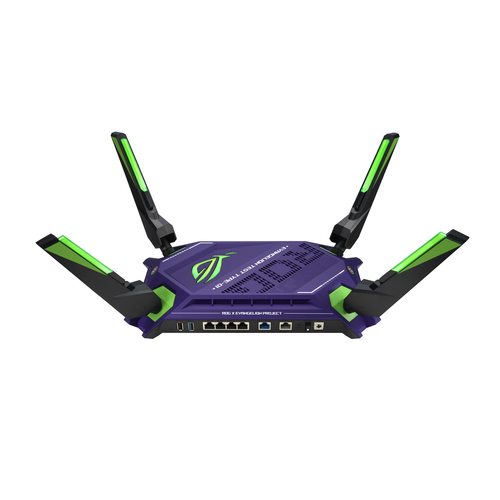

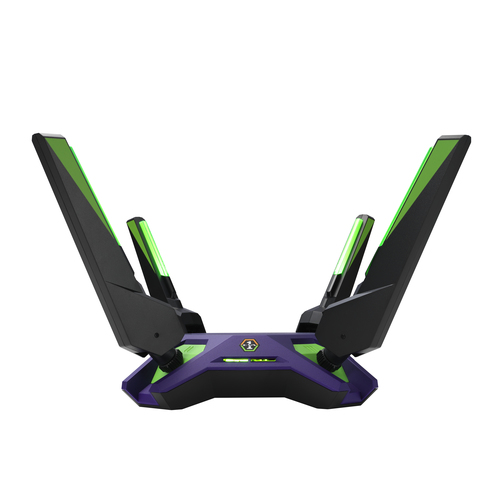

ROG Rapture GT-AX6000 AiMesh EVA Edition
Model ROG Rapture GT-AX6000 AiMesh EVA EditionPart no. 90IG0780-MO3B10EAN 4711081595083
80 specifications
- Memory1000 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight1.12 kg
- ColourBlack, Blue
- Ethernet WANYes
Overview
- Memory
- 1000 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 1.12 kg
- Colour
- Black, Blue
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- ROG Rapture GT-AX6000 AiMesh EVA Edition
- Part number
- 90IG0780-MO3B10
- EAN / UPC
- 4711081595083
- Also known as
- ASUS ROG Rapture GT-AX6000 AiMesh EVA Edition wireless router Dual-band (2.4 GHz / 5 GHz) Black, Blue
Specifications
80 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 6000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Media server | Yes |
| VPN server | VPN Server IPSec, VPN Server OVPN, VPN Server PPTP |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Blue |
| LED indicators | LAN, Power, WAN, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Processor cores | 4 |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 19 V |
| Output current | 2.37 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 196 mm |
| Height | 220.9 mm |
| Weight | 1.12 kg |
| Width | 337.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 406 mm |
| Package depth | 338 mm |
| Package height | 113.5 mm |
| Package weight | 2.31 kg |
| Package type | Box |
| Number of products included | 1 pc(s) |
