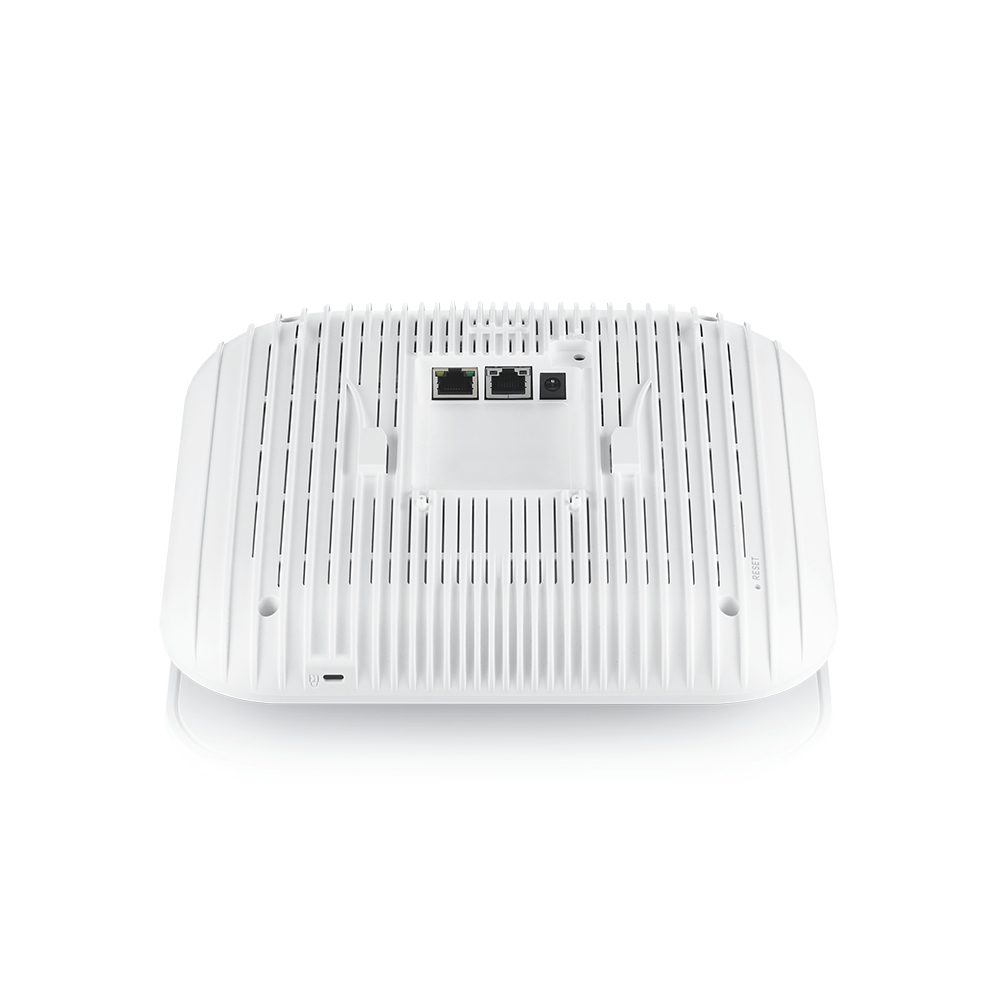

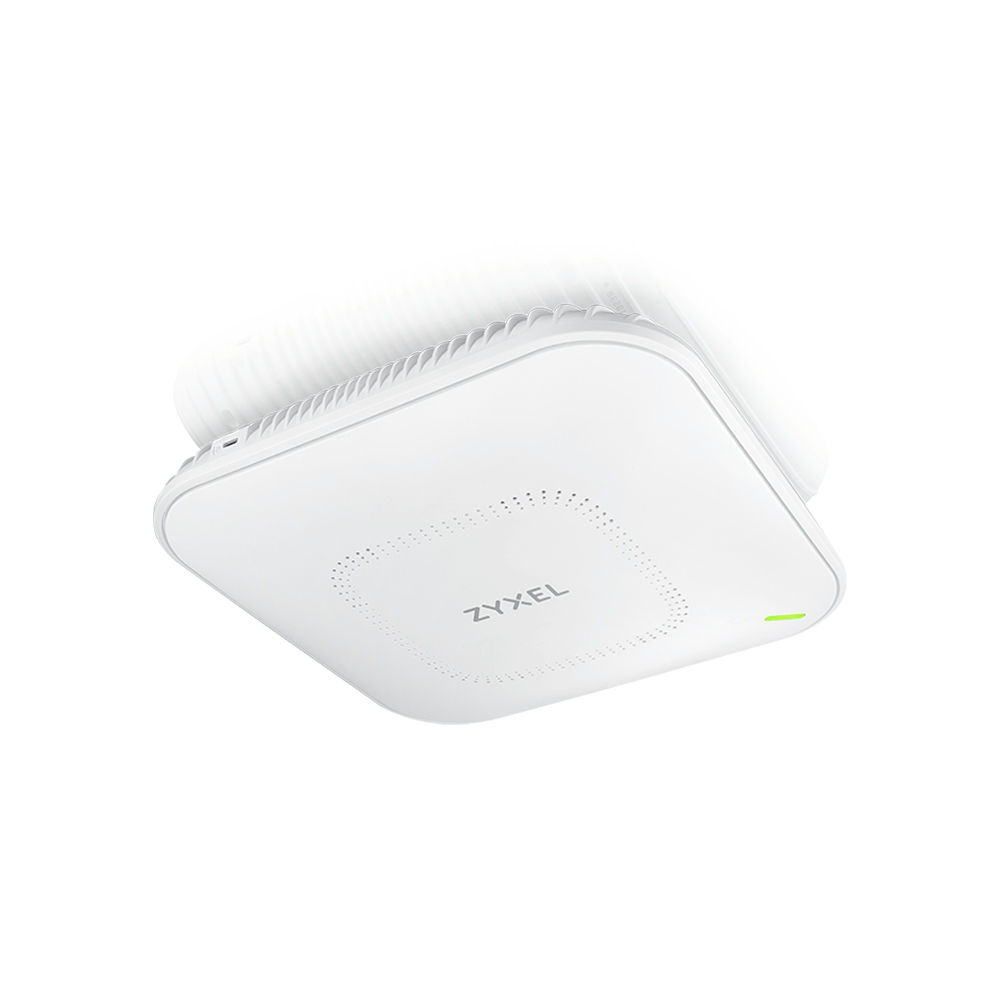

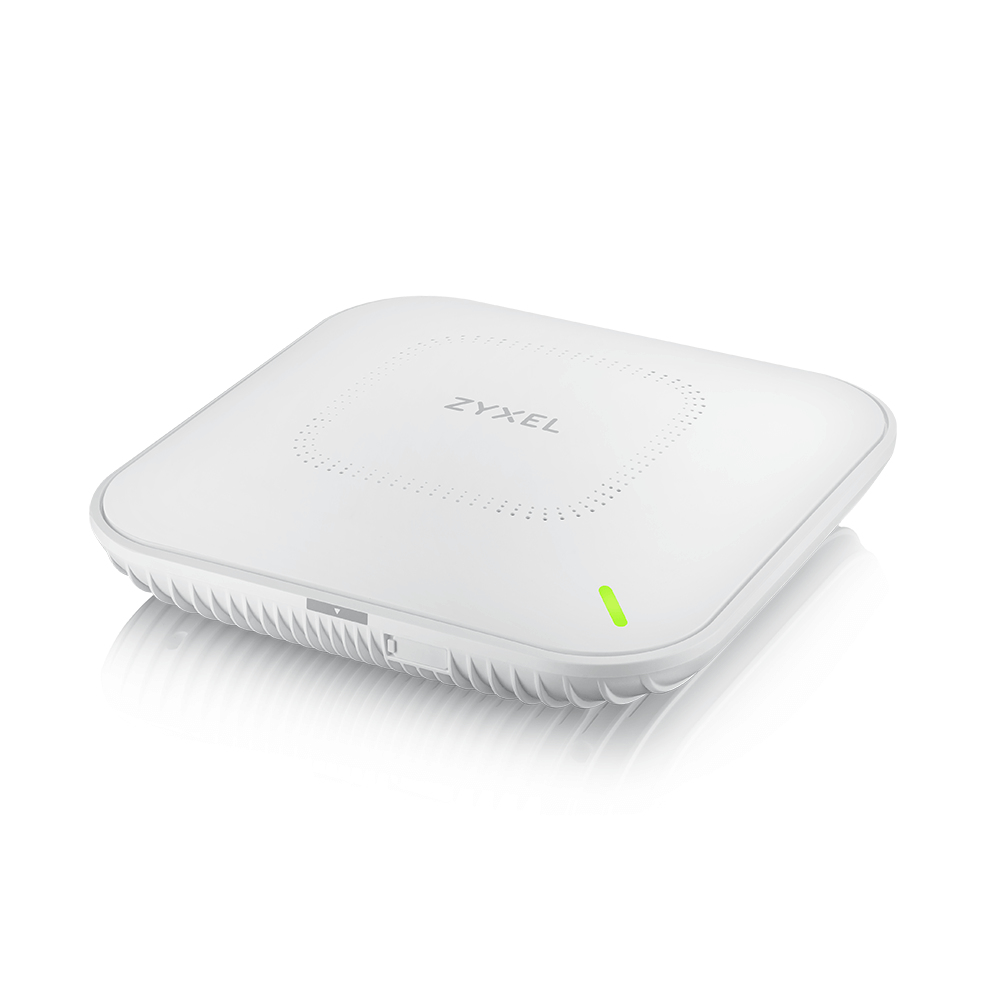

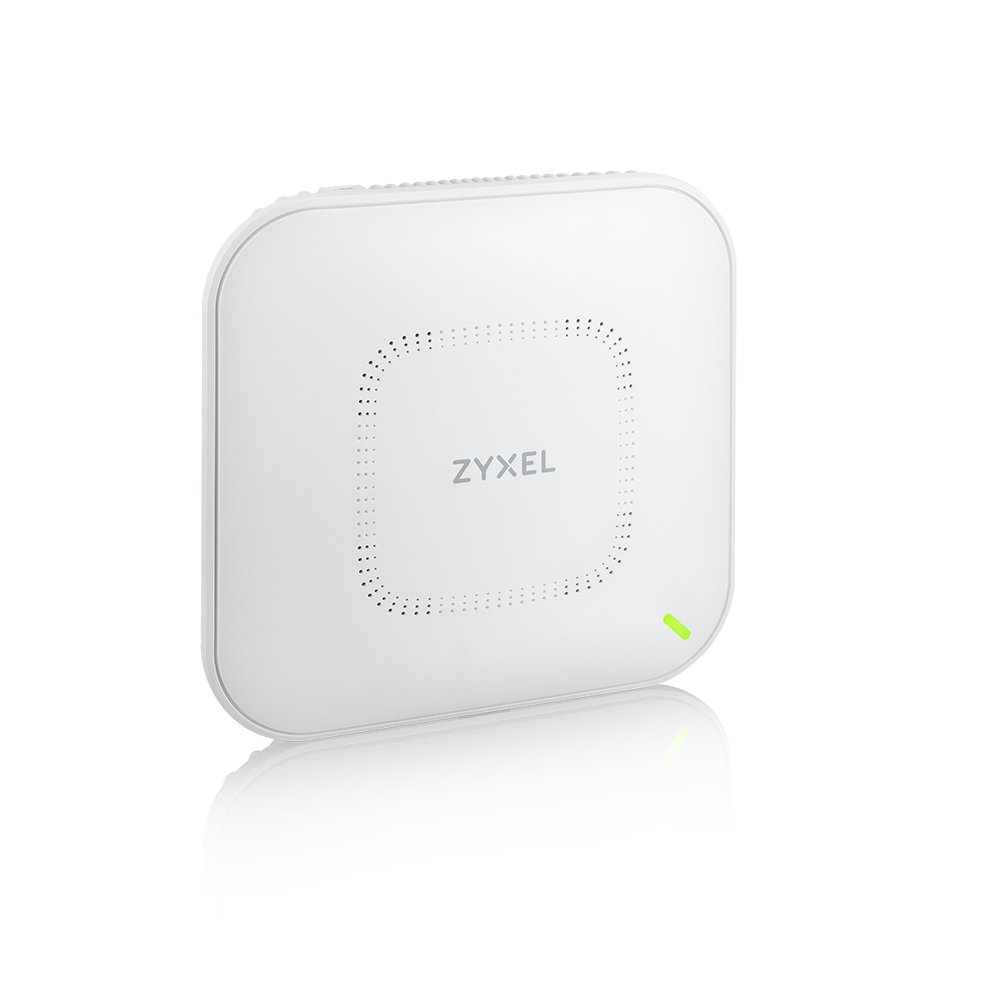

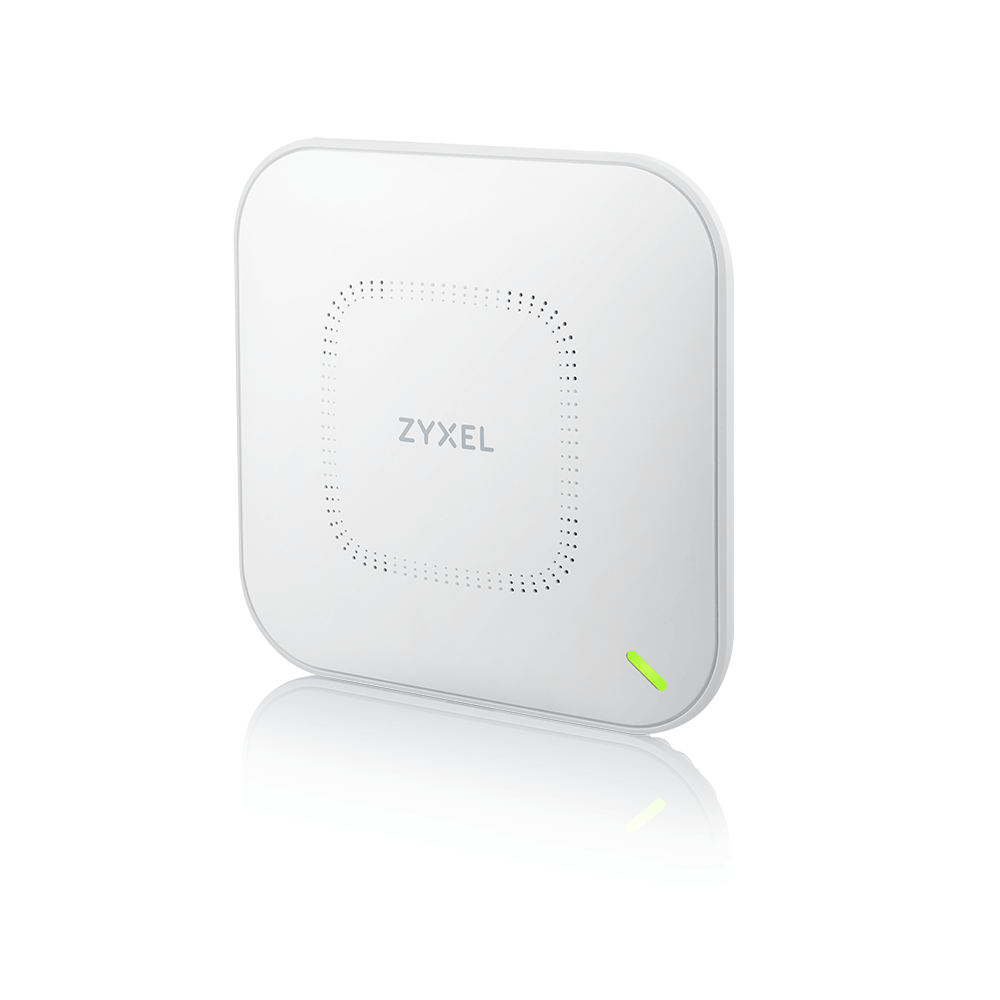

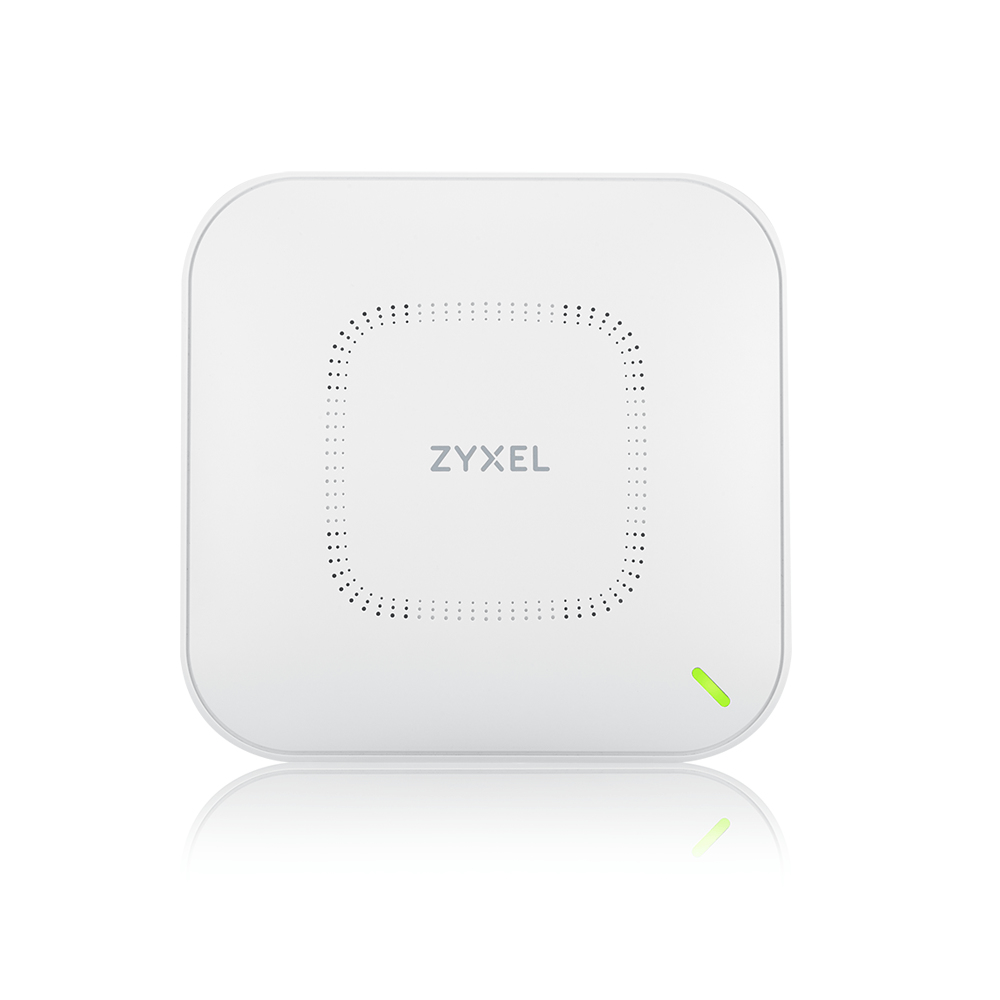

WAX650S 3550 Mbit/s White Power over Ethernet (PoE)
Model WAX650SPart no. WAX650S-EU0101FEAN 4718937609178
45 specifications
- Speed3550 Mbit/s
- Weight1.16 kg
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- Antenna typeInternal
Overview
- Speed
- 3550 Mbit/s
- Weight
- 1.16 kg
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Antenna type
- Internal
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- WAX650S
- Part numbers
- WAX650S-EU0101F, 140300
- EAN / UPC
- 4718937609178
- Also known as
- Zyxel WAX650S 3550 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 3550 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1150 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -105 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, WEP, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 5.8 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 235 mm |
| Height | 53.5 mm |
| Weight | 1.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 282 mm |
| Package depth | 266 mm |
| Package height | 79 mm |
| Package weight | 1.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
