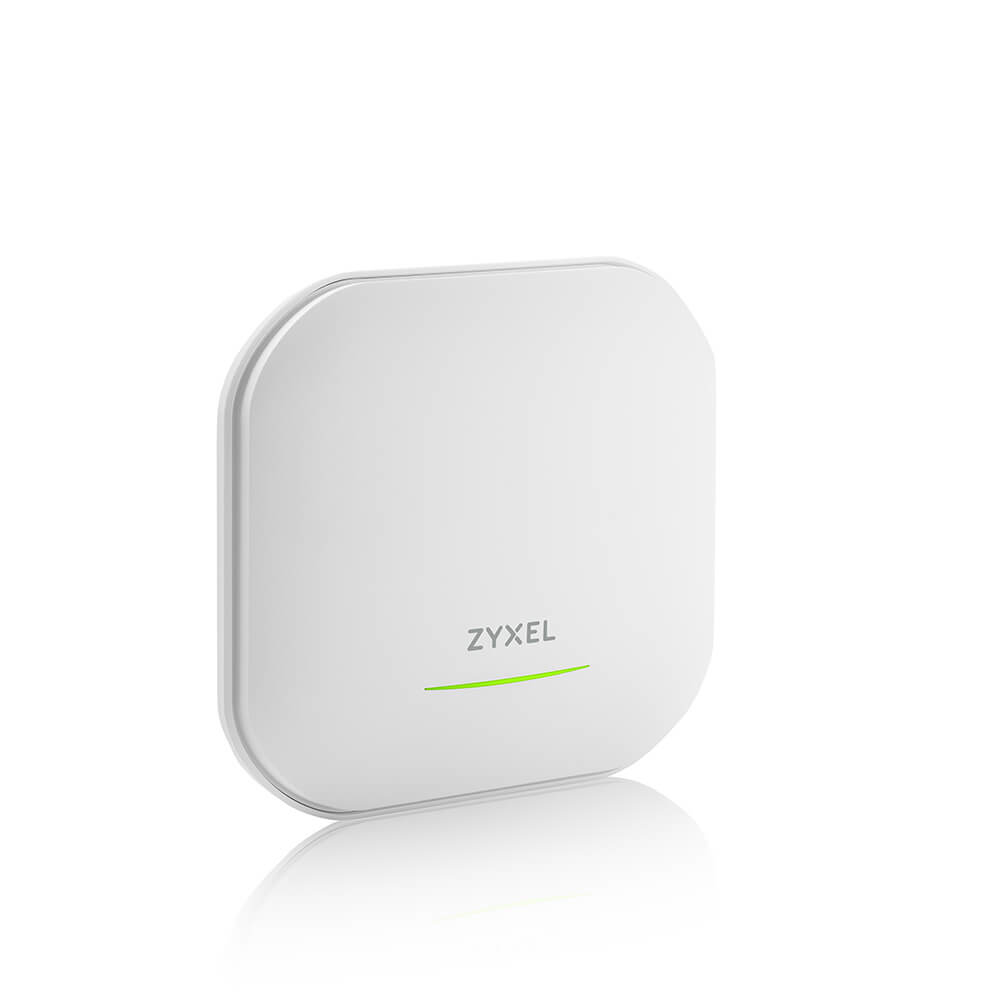

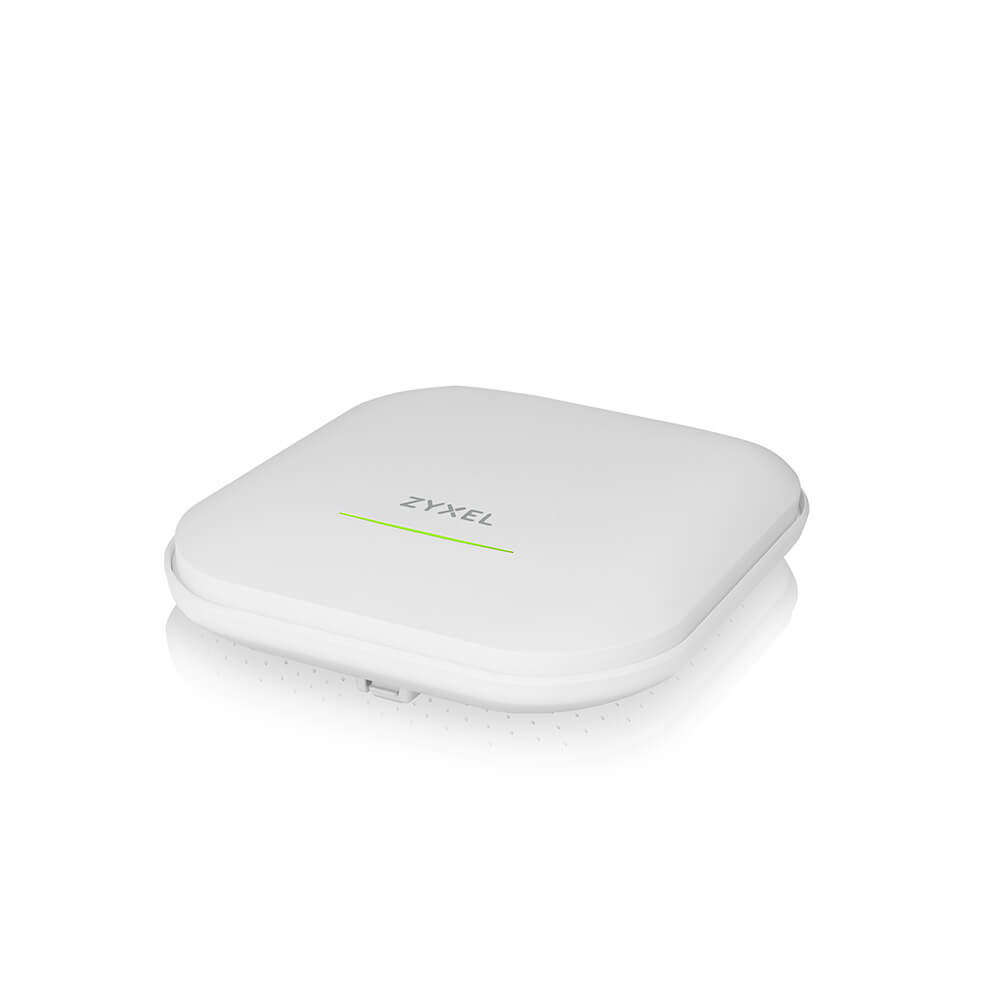

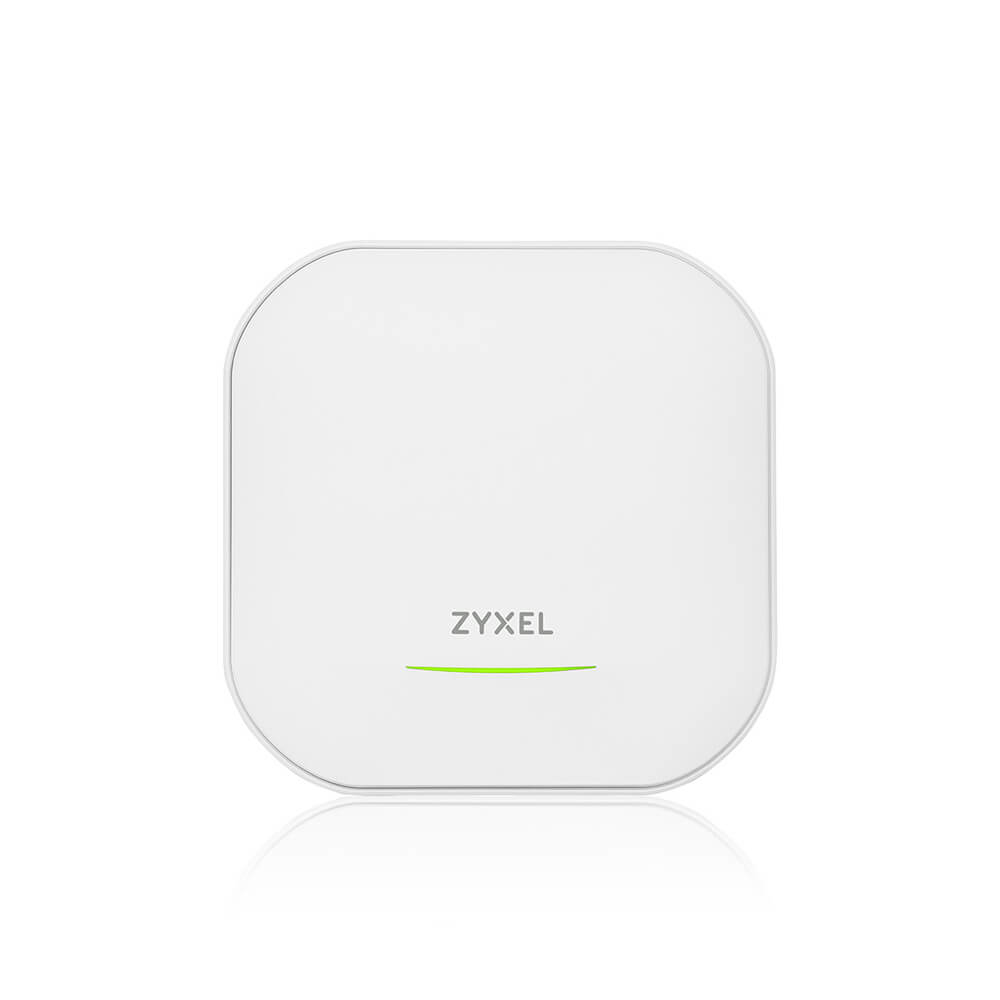

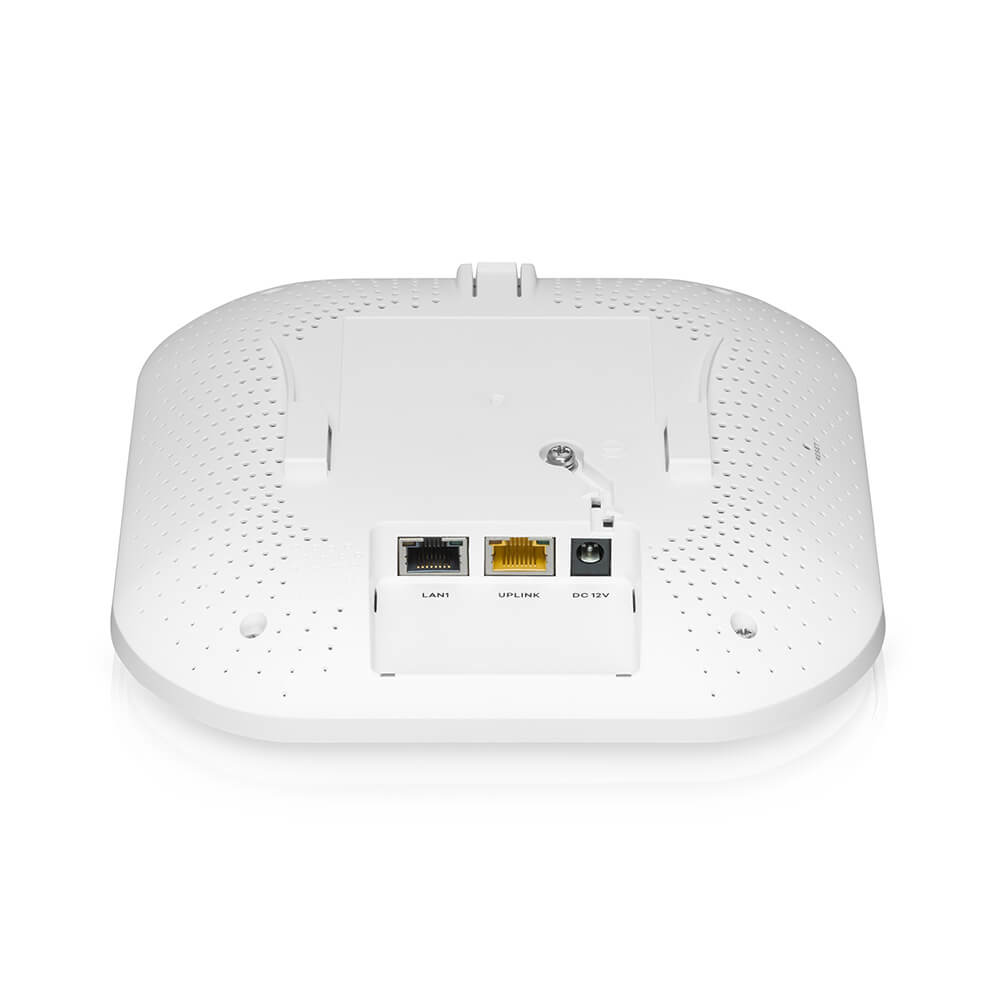

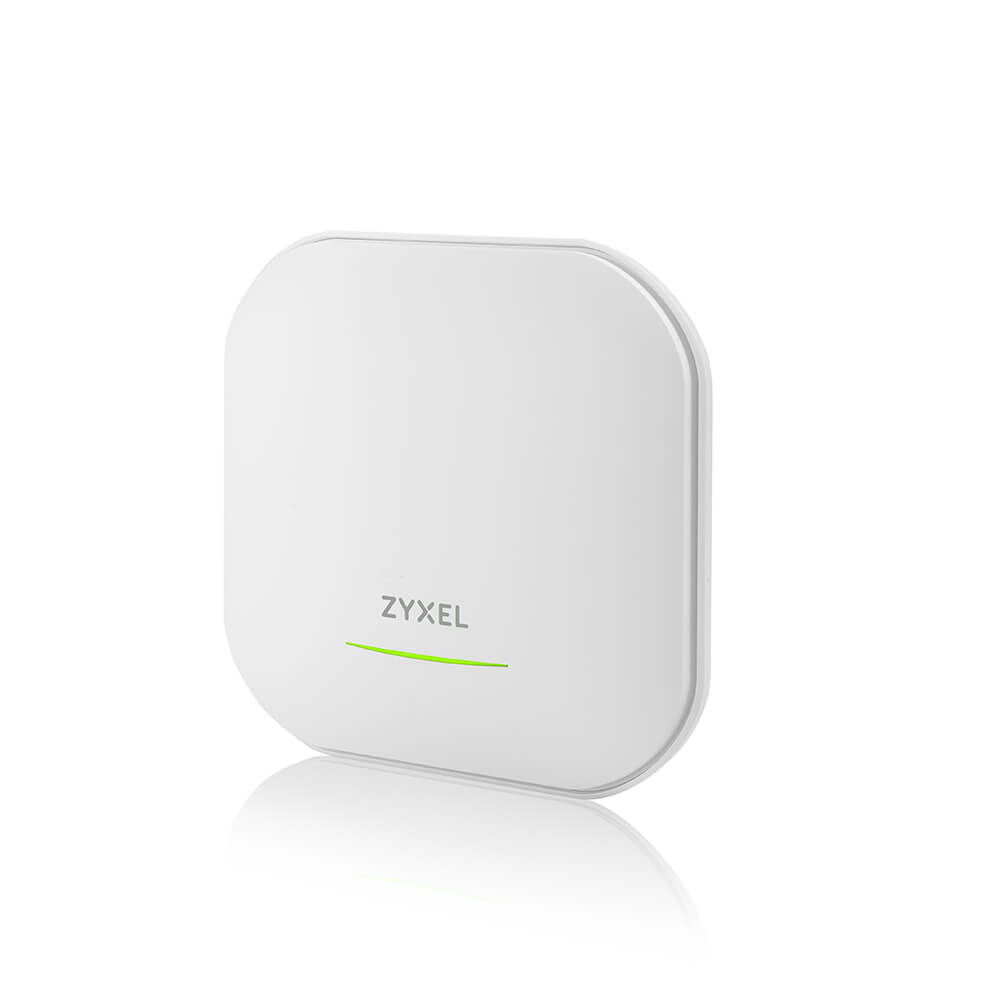

WAX620D-6E wireless access point 4800 Mbit/s White Power over Ethernet (PoE)
Model WAX620D-6EEAN 760559129750
38 specifications
- Speed4800 Mbit/s
- Weight780 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports0
- PlacementCeiling
Overview
- Speed
- 4800 Mbit/s
- Weight
- 780 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 0
- Placement
- Ceiling
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- WAX620D-6E
- Part numbers
- WAX620D-6E, 140440
- EAN / UPC
- 760559129750
- Also known as
- Zyxel WAX620D-6E wireless access point 4800 Mbit/s White Power over Ethernet (PoE)
Specifications
38 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Bandwidth | 0.16 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP, WEP, WPA, WPA2, WPA2-PSK, WPA3, WPA3-Enterprise |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Wi-Fi |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 2 A |
| Power supply | 21.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 190 mm |
| Height | 60 mm |
| Weight | 780 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
