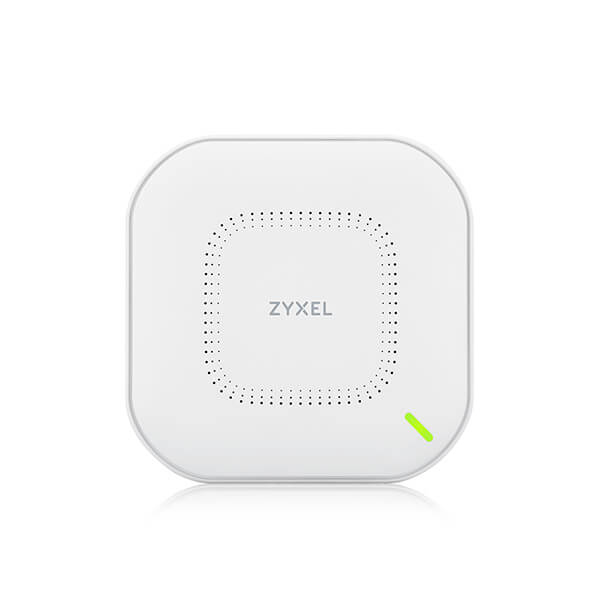

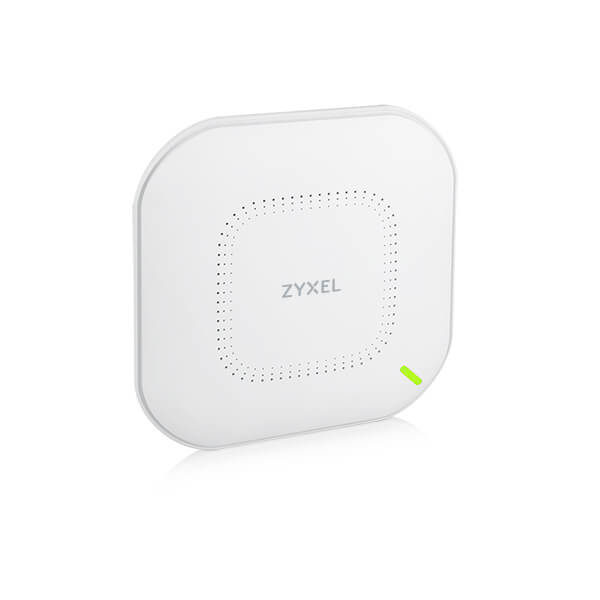

WAX510D 1775 Mbit/s White Power over Ethernet (PoE)
Model WAX510DPart no. WAX510D-EU0105FEAN 760559126933
35 specifications
- Speed1775 Mbit/s
- Weight453 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA-Enterprise, WPA-PSK
- PlacementCeiling, Wall
Overview
- Speed
- 1775 Mbit/s
- Weight
- 453 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA-Enterprise, WPA-PSK
- Placement
- Ceiling, Wall
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- WAX510D
- Part numbers
- WAX510D-EU0105F, 140270, 140271, WAX510D-EU0101F, WAX510D
- EAN / UPC
- 760559126933, 4718937611355, 4718937610303
- Also known as
- Zyxel WAX510D 1775 Mbit/s White Power over Ethernet (PoE)
Specifications
35 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 17 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 215 mm |
| Package height | 64 mm |
| Package weight | 770 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
