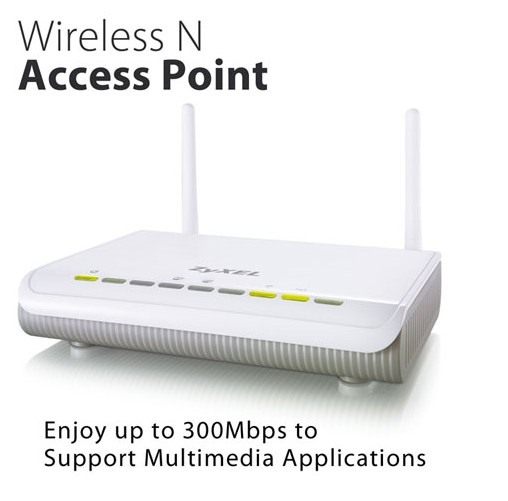

WAP-3205 300 Mbit/s
Model WAP-3205Part no. 91-005-298001B
20 specifications
- Speed300 Mbit/s
- Weight245 g
- MAC address filteringYes
- Ethernet LAN (RJ-45) ports2
- Power consumption (typical)5 W
- InternalNo
Overview
- Speed
- 300 Mbit/s
- Weight
- 245 g
- MAC address filtering
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Power consumption (typical)
- 5 W
- Internal
- No
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- WAP-3205
- Part numbers
- 91-005-298001B, ZY-WAP3205
- Also known as
- Zyxel WAP-3205 300 Mbit/s
Specifications
20 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| MAC address filtering | Yes |

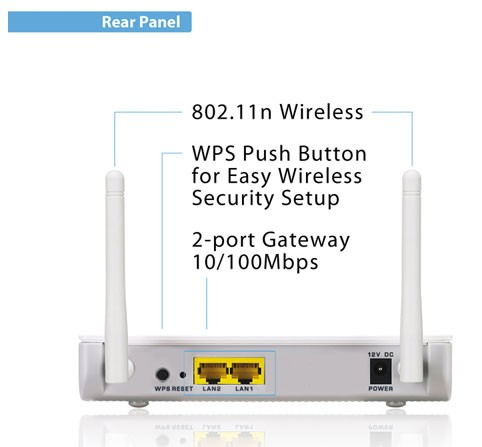

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Power supply type | DC 12 V, 1 A |
Design
| Specification | Value |
|---|---|
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC, NCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 162 x 115 x 33 mm |
| Weight | 245 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 780 g |
Other features
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 273 x 230 x 68 mm |
| Safety | CE LVD |
| Wireless technology | 802.11b/g/n |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 20 - 95% |
