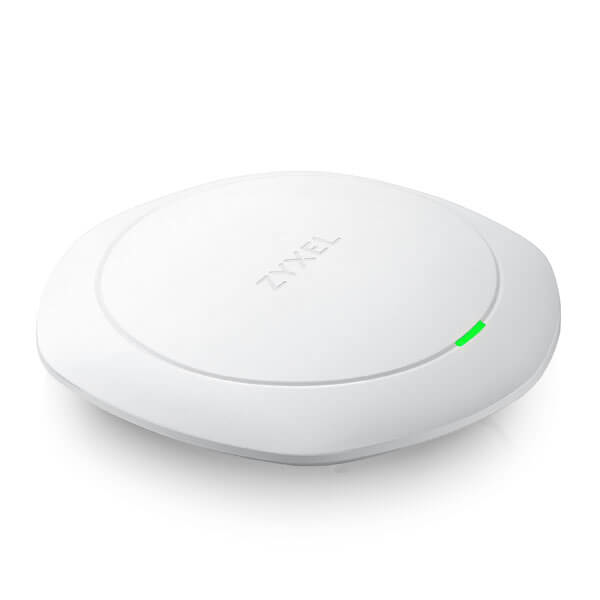

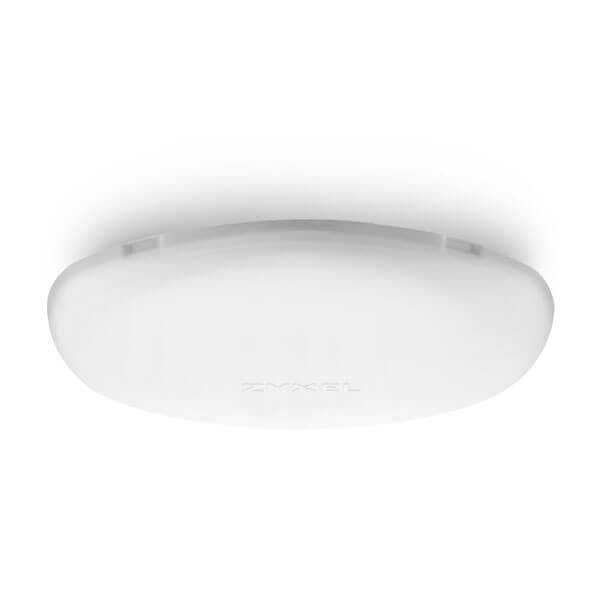

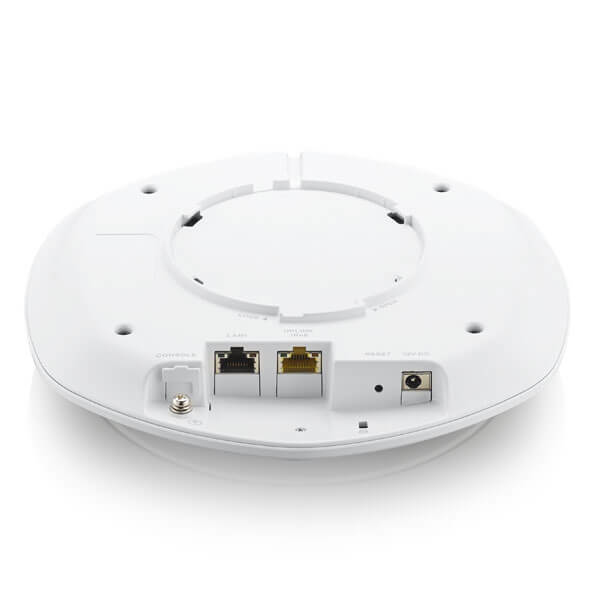

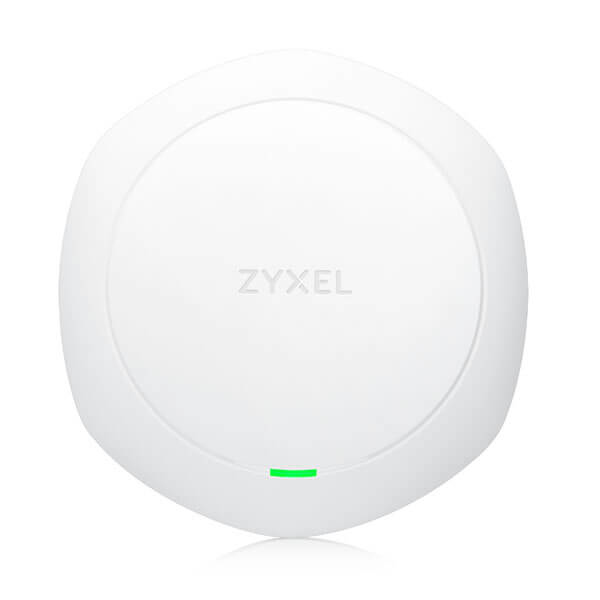

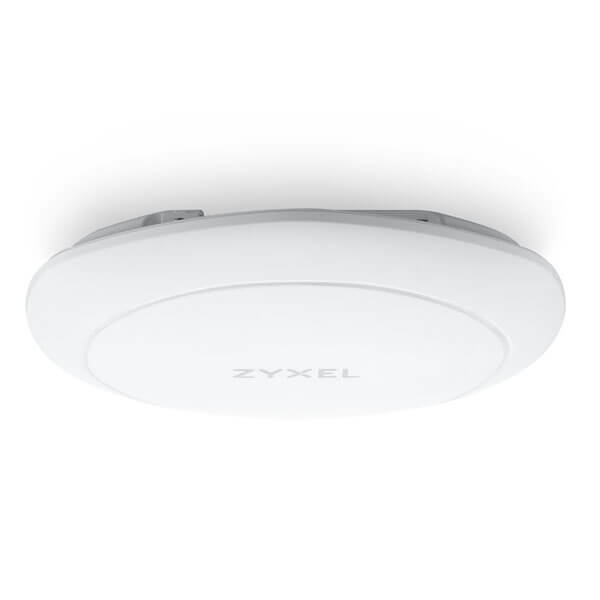

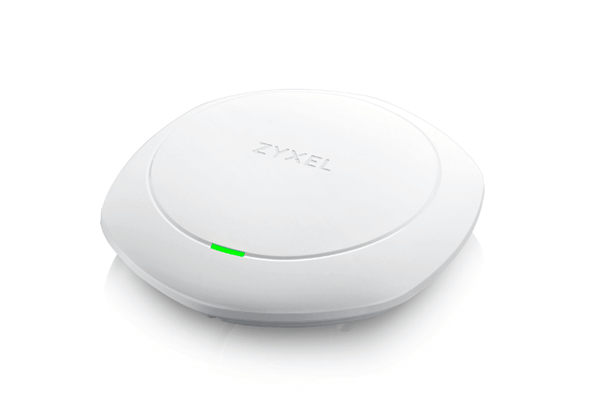

Zyxel WAC6303D-S 1300 Mbit/s White Power over Ethernet (PoE)

Zyxel WAC6303D-S 1300 Mbit/s White Power over Ethernet (PoE)

Model WAC6303D-SPart no. WAC6303D-S-EU0101FEAN 4718937594603

50 specifications
  • Speed1300 Mbit/s
  • Weight800 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports2
  • PlacementCeiling, Wall
See all specifications

Overview

Speed
1300 Mbit/s
Weight
800 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
2
Placement
Ceiling, Wall
Brand
Zyxel
Model
WAC6303D-S
Part numbers
WAC6303D-S-EU0101F, 5401
EAN / UPC
4718937594603
Also known as
Zyxel WAC6303D-S 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

50 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Wi-Fi data rate (max)1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate1600 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Channel bandwidth80 MHz
MIMOYes
MIMO typeMulti User MIMO
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Maximal-Ratio Combining (MRC)Yes
Maximum Likelihood Detection (MLD)Yes
Cyclic Shift Diversity (CSD)Yes
Quality of Service (QoS) supportYes
Receiver sensitivity-103 dBm

Security

Security algorithms802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filteringYes
Number of SSID supported16

Protocols

DHCP clientYes
Management protocolsSNMP v2c/v3

Ports & interfaces

Ethernet LAN (RJ-45) ports2
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Output voltage12 V
Output current2 A

Design

PlacementCeiling, Wall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
InternalNo

Antenna

Antenna gain level (max)4 dBi

Weight & dimensions

Width211 mm
Depth223 mm
Height39 mm
Weight800 g

Packaging data

Package width251 mm
Package depth247 mm
Package height55 mm
Package weight1.04 kg

Packaging content

Mounting kitYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Logistics data

Harmonized System (HS) code85176990
