WAC5302D-Sv2 White Power over Ethernet (PoE)
Model WAC5302D-Sv2Part no. WAC5302D-SV2-EU0101FEAN 4718937615247
43 specifications
- Weight320 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports4
- PlacementTable, Wall
- Antenna typeInternal
Overview
- Weight
- 320 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Placement
- Table, Wall
- Antenna type
- Internal
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- WAC5302D-Sv2
- Part number
- WAC5302D-SV2-EU0101F
- EAN / UPC
- 4718937615247
- Also known as
- Zyxel WAC5302D-Sv2 White Power over Ethernet (PoE)
Specifications
43 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| Transmitting power | 19 dBmW |
| Receiver sensitivity | -98 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP, SNMP, WEP, WPA, WPA-RADIUS, WPA2-Enterprise, WPA2-PSK, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

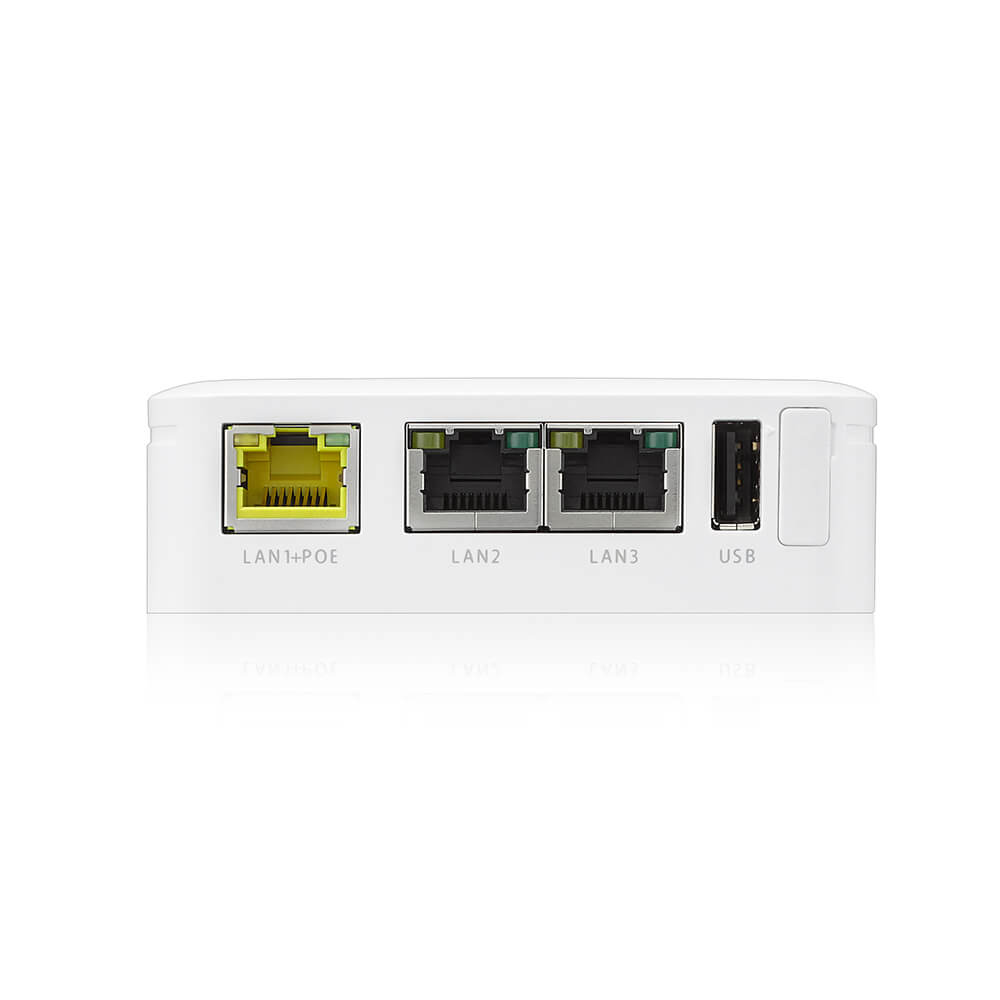

| Ethernet LAN (RJ-45) ports | 4 |
| USB connector type | USB Type-A |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Placement | Table, Wall |
| Product colour | White |

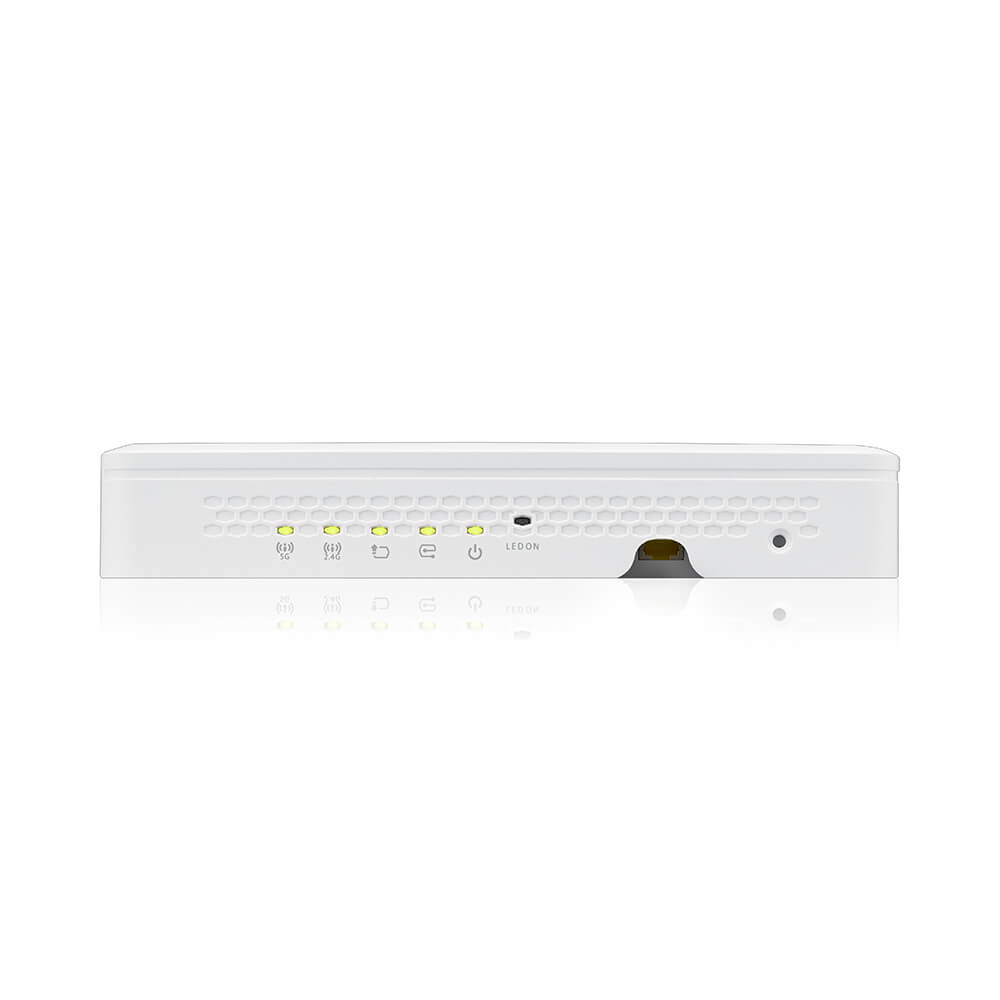

| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15C FCC 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2 FCC 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 BSMI CNS13438 EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 170 mm |
| Height | 29 mm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 110 mm |
| Package height | 55 mm |
| Package weight | 540 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
