Zyxel WAC5302D-S 867 Mbit/s White Power over Ethernet (PoE)

Zyxel WAC5302D-S 867 Mbit/s White Power over Ethernet (PoE)

Model WAC5302D-SPart no. WAC5302D-S-EU0101FEAN 4718937592920

46 specifications
  • Speed867 Mbit/s
  • Weight320 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports4
  • PlacementTable, Wall
See all specifications

Overview

Speed
867 Mbit/s
Weight
320 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
4
Placement
Table, Wall
Brand
Zyxel
Model
WAC5302D-S
Part numbers
WAC5302D-S-EU0101F, 4779
EAN / UPC
4718937592920, 5057454660514
Also known as
Zyxel WAC5302D-S 867 Mbit/s White Power over Ethernet (PoE)

Specifications

46 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate867 Mbit/s
Ethernet LAN data rates100,1000 Mbit/s
Frequency band2.412 - 2.462, 2.412 - 2.472, 5.15 - 5.35, 5.725 - 5.85, 5.47 - 5.725 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Channel bandwidth80 MHz
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Wireless isolationYes
Quality of Service (QoS) supportYes
Transmitting power19 dBmW
Receiver sensitivity-98 dBm min.

Security

Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WEP, WPA, WPA2, WPA2-PSK
MAC address filteringYes
Number of SSID supported16

Protocols

DHCP clientYes
Management protocolsSNMP, CLI

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity1
USB connector typeUSB Type-A
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
Heat dissipation81.9 BTU/h

Design

PlacementTable, Wall
Product colourWhite

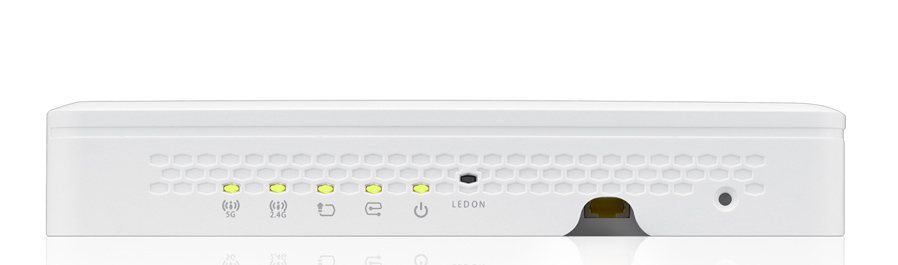

LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)5 dBi

Certificates

CertificationETSI EN 300 328, FCC Part 15C, LP0002, EN 60601-1-2 EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, FCC Part B, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Weight & dimensions

Width90 mm
Depth170 mm
Height29 mm
Weight320 g

Packaging data

Package width190 mm
Package depth110 mm
Package height55 mm
Package weight540 g

Operational conditions

Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
