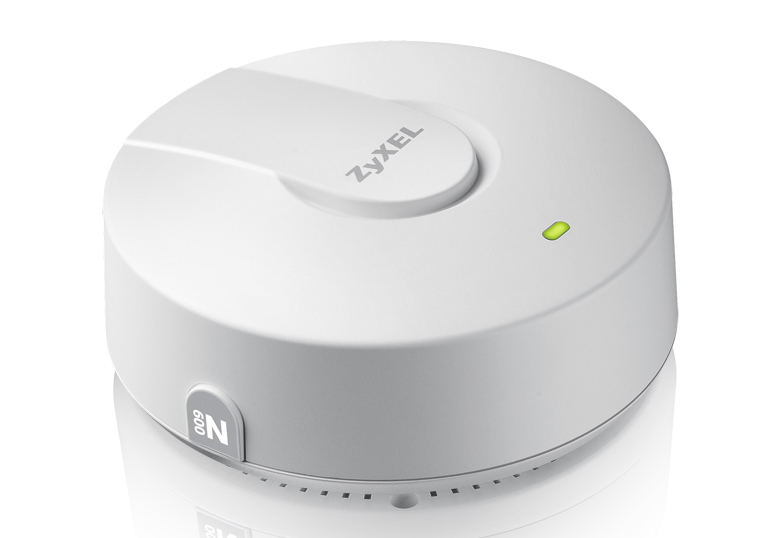

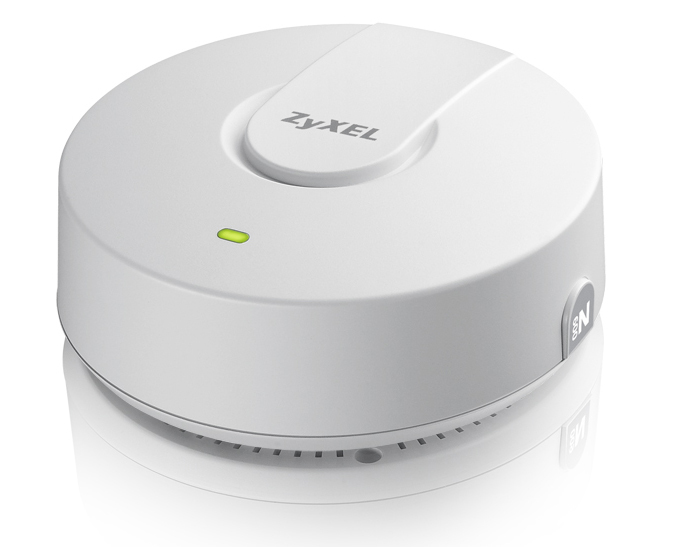

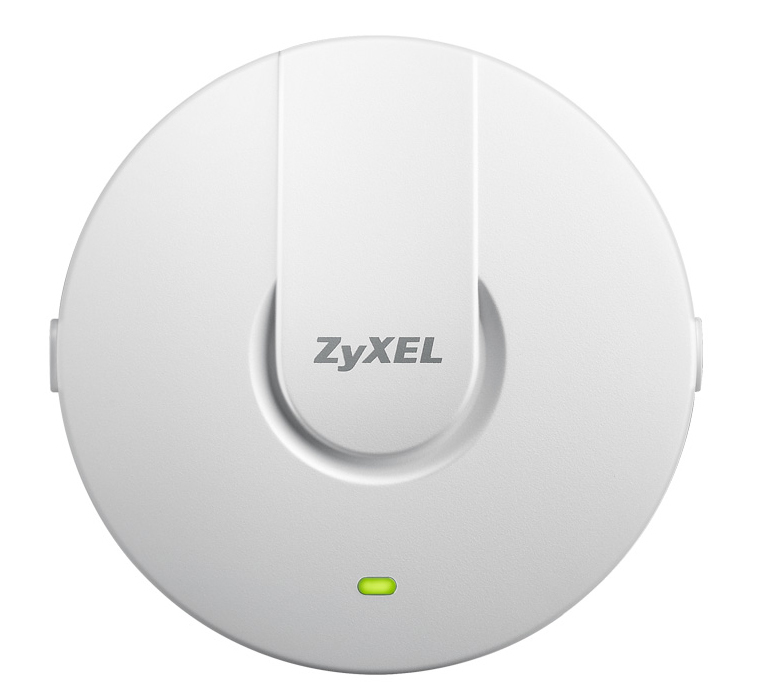

Zyxel PoE Access Point

Zyxel PoE Access Point

Model PoE Access PointPart no. NWA1123-NIEAN 7605591206348

37 specifications
  • Speed600 Mbit/s
  • Weight250 g
  • 2.4 GHzYes
  • Security algorithmsWEP, WPA, WPA2
  • Ethernet LAN (RJ-45) ports1
  • Antenna typeInternal
See all specifications

Overview

Speed
600 Mbit/s
Weight
250 g
2.4 GHz
Yes
Security algorithms
WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports
1
Antenna type
Internal
Brand
Zyxel
Model
PoE Access Point
Part numbers
NWA1123-NI, NWA1123-NI-EU0101F, NWA1123-NI-EU010
EAN / UPC
7605591206348, 5052916544135, 5053959459332, 760559120634 +1 more
Also known as
Zyxel PoE Access Point 600 Mbit/s Power over Ethernet (PoE)

Specifications

37 specifications in 13 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate600 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4, 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
MIMOYes
VLAN supportYes

Security

Security algorithmsWEP, WPA, WPA2

Protocols

DHCP clientYes
Supported network protocolsIPv6

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
WAN connectionWi-Fi
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current0.3 A
Power supply7 W

Design

LED indicatorsYes
InternalNo

Antenna

Antenna typeInternal
Antenna gain level (max)3 dBi

Certificates

CertificationFCC Part 15C 15.247, FCC Part 15E ETSI EN 300 328 V1.7.1: 11 2006 EN 301 893 V1.2.3: 08-2003 EN60601-1-2: 2007, DGT LP0002 FCC Part 15/107, EN 301 489-17 V2.1.1: 05-2009 EN 301 489-1 V1.8.1: 04-2008 EN55022: 2010, EN55024: 2010

Weight & dimensions

Width130 mm
Depth130 mm
Height54.5 mm
Weight250 g

Packaging data

Package width282 mm
Package depth207 mm
Package height71 mm
Package weight630 g

Other features

SafetyEN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 IEC 60950-1: 2005, BSMI

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
