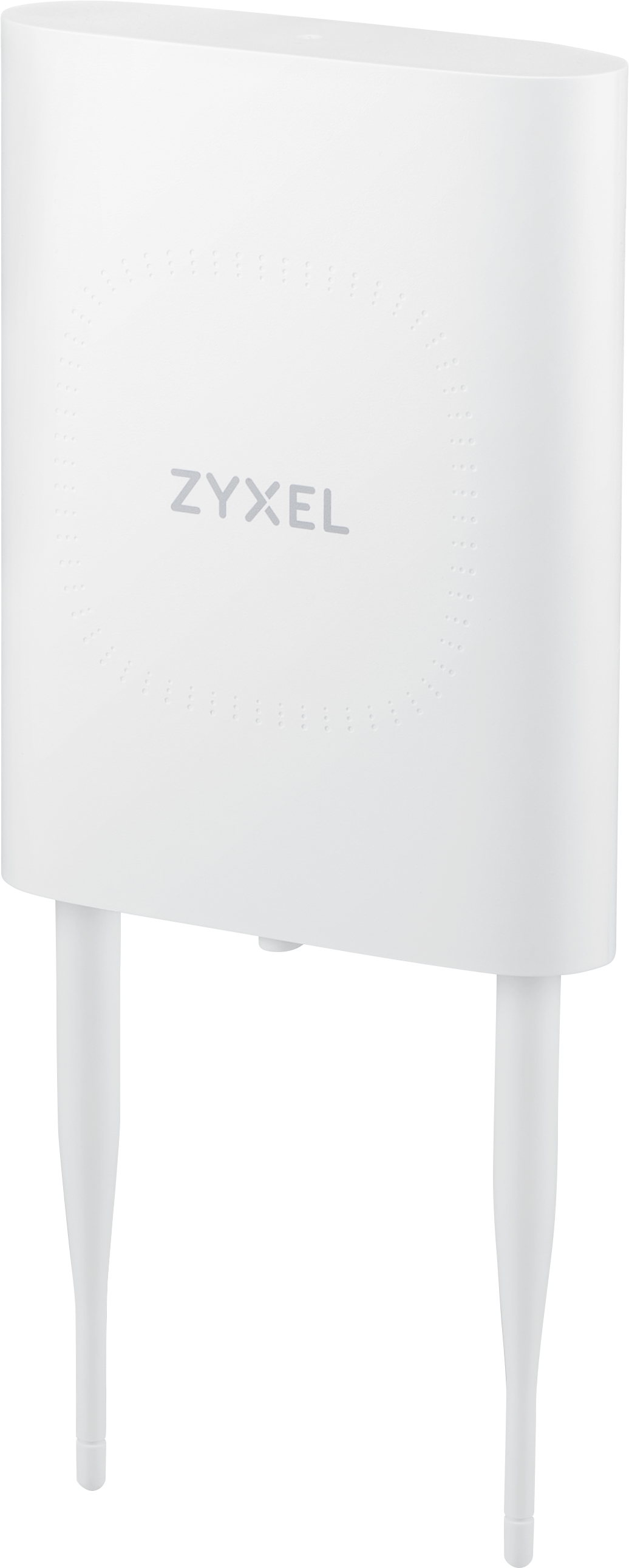

NWA55AXE 1775 Mbit/s White Power over Ethernet (PoE)
Model NWA55AXEPart no. NWA55AXE-EU0102FEAN 4718937621996
49 specifications
- Speed1775 Mbit/s
- Weight580 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- Antenna typeExternal
Overview
- Speed
- 1775 Mbit/s
- Weight
- 580 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Antenna type
- External
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA55AXE
- Part numbers
- NWA55AXE-EU0102F, NWA55AXE-GB0102F, 140210
- EAN / UPC
- 4718937621996, 4718937624218
- Also known as
- Zyxel NWA55AXE 1775 Mbit/s White Power over Ethernet (PoE)
Specifications
49 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -99 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 16 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 308 mm |
| Depth | 136.4 mm |
| Height | 49.6 mm |
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 221 mm |
| Package depth | 188 mm |
| Package height | 59 mm |
| Package weight | 887 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 332 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 7 pc(s) |
