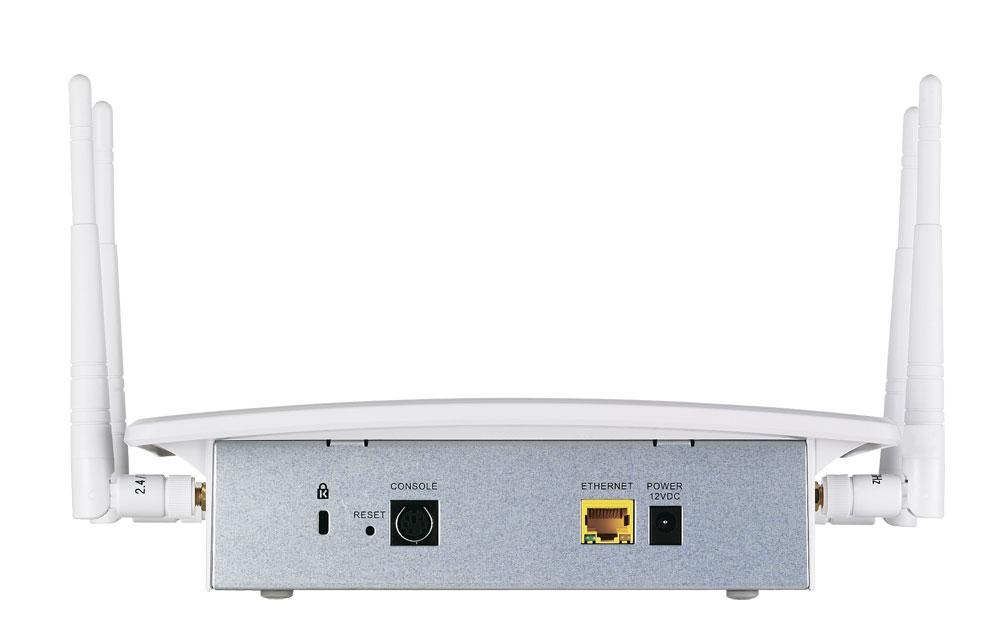

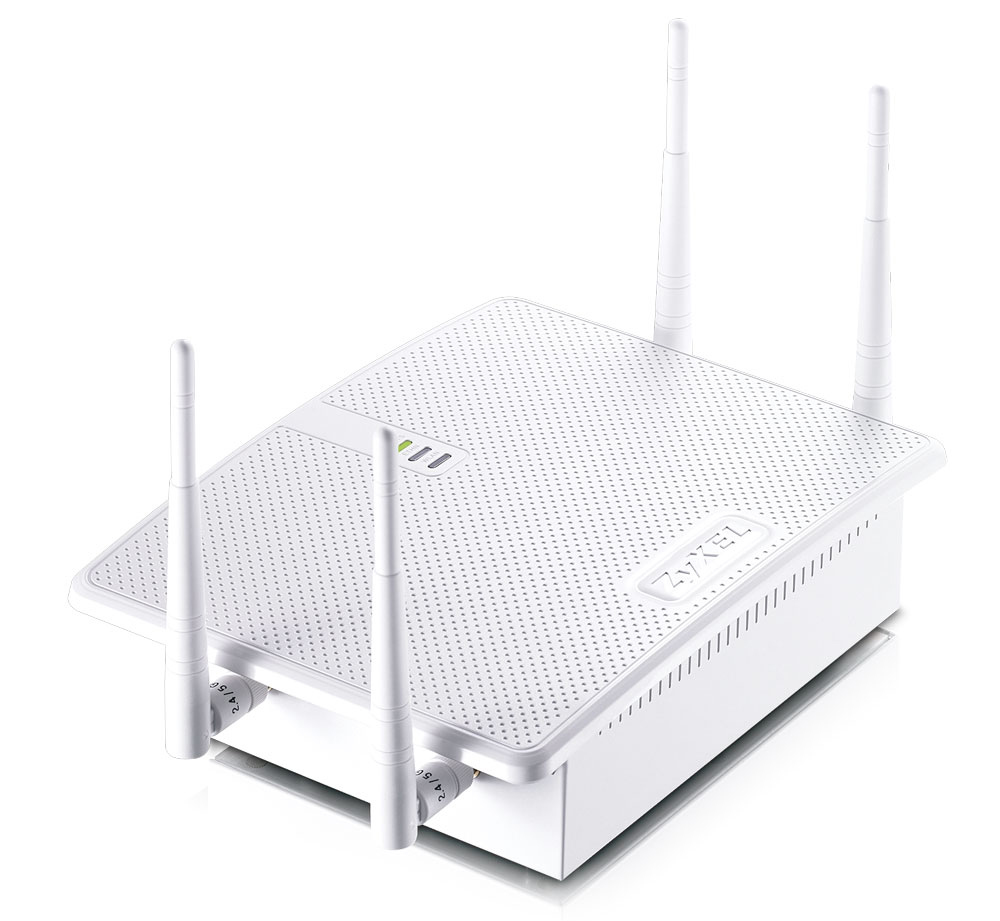

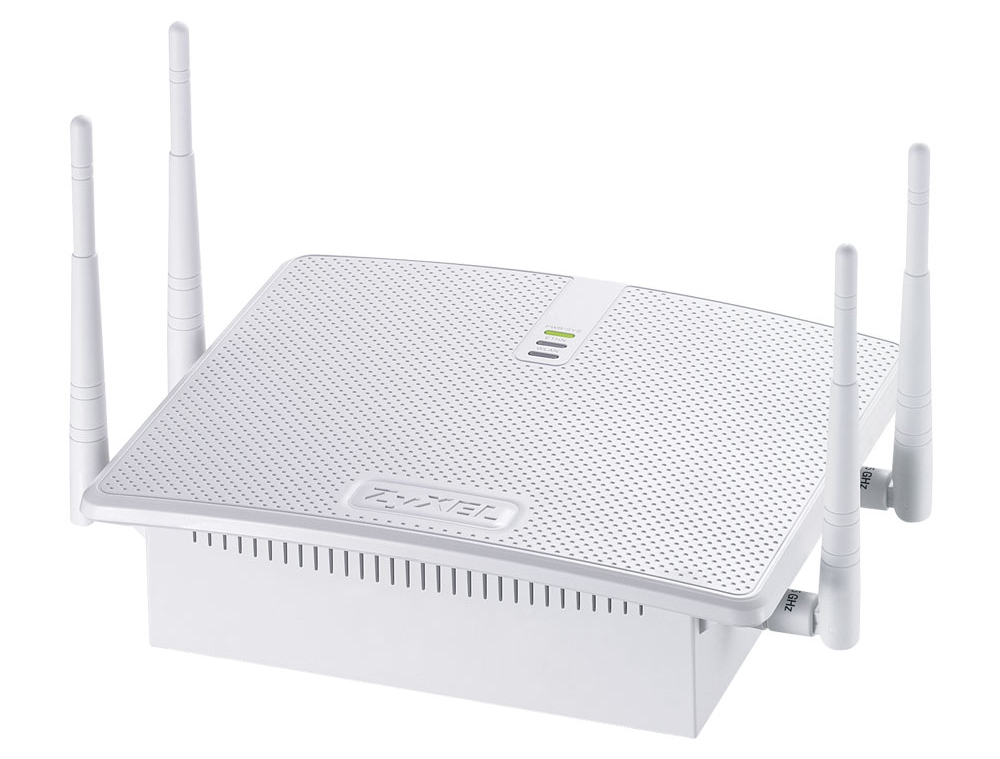

Zyxel NWA5560-N 300 Mbit/s Power over Ethernet (PoE)

Zyxel NWA5560-N 300 Mbit/s Power over Ethernet (PoE)

Model NWA5560-NPart no. NWA5560-N-EU0101FEAN 4718937561032

36 specifications
  • Speed300 Mbit/s
  • Weight805 g
  • Security algorithmsWEP, WPA, WPA2, WPA2-PSK
  • DHCP clientYes
  • Ethernet LAN (RJ-45) ports1
  • Antenna typeExternal
See all specifications

Overview

Speed
300 Mbit/s
Weight
805 g
Security algorithms
WEP, WPA, WPA2, WPA2-PSK
DHCP client
Yes
Ethernet LAN (RJ-45) ports
1
Antenna type
External
Brand
Zyxel
Model
NWA5560-N
Part number
NWA5560-N-EU0101F
EAN / UPC
4718937561032, 115971259828, 667297463330, 725919752580 +2 more
Also known as
Zyxel NWA5560-N 300 Mbit/s Power over Ethernet (PoE)

Specifications

36 specifications in 12 groups

Features

Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate140 Mbit/s
Frequency band2.412 - 2.472, 5.15 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Modulation128-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithmsWEP, WPA, WPA2, WPA2-PSK

Protocols

DHCP clientYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1.5 A

Design

Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes
InternalNo

Antenna

Antenna typeExternal
Antenna featuresDetachable antenna
Antennas quantity4
Antenna connector typeRP-SMA

Certificates

CertificationFCC Part 15C 15.247, FCC Part 15E (Class B) EN 300 328 V1.7.1, EN 301 893 V1.2.3:08-2003, DGT LP0002 (Class B) FCC Part 15B, EN 301 489-17 V1.2.1: 08-2002 (Class B) EN 301 489-1 V1.5.1: 11-2004 (Class B)

Weight & dimensions

Width218 mm
Depth174 mm
Height54 mm
Weight805 g

Packaging data

Package width326 mm
Package depth184 mm
Package height91 mm
Package weight1.59 kg

Other features

SafetyEN 60950-1 (Class B), EN 60601-1-2:2002

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
