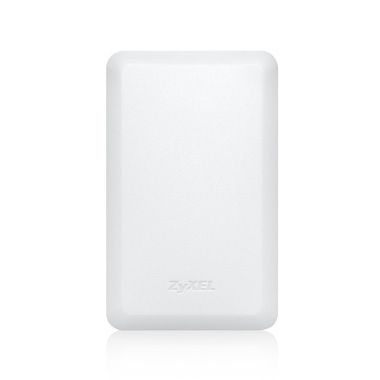

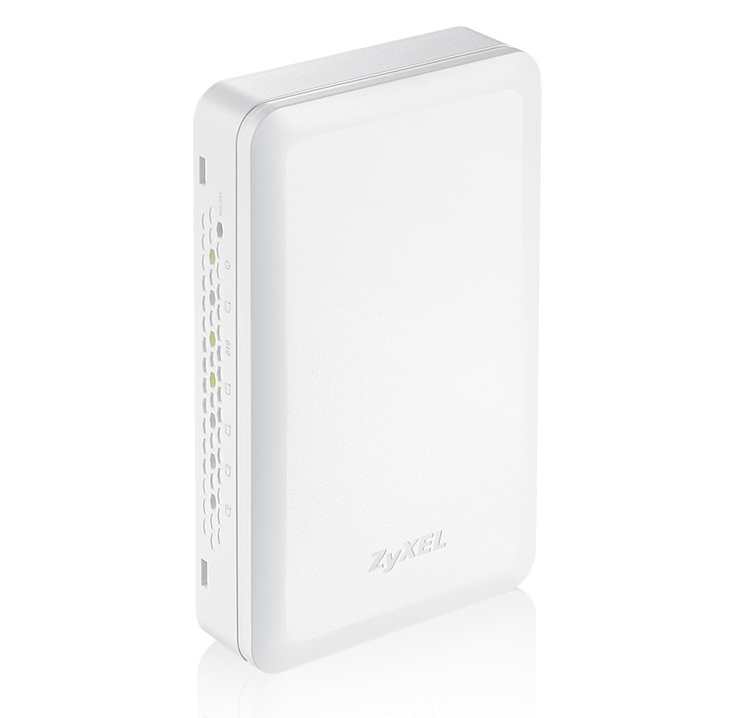

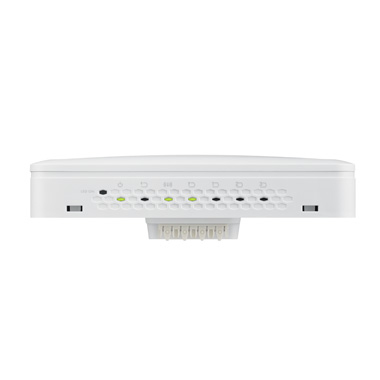

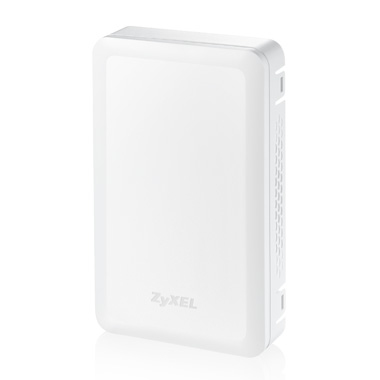

Zyxel NWA5301-NJ 300 Mbit/s White Power over Ethernet (PoE)
Model NWA5301-NJPart no. 4614EAN 7612245646146
37 specifications
- Speed300 Mbit/s
- Weight172 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA2-PSK
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- 300 Mbit/s
- Weight
- 172 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA2-PSK
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA5301-NJ
- Part numbers
- 4614, NWA5301-NJ-EU0101F
- EAN / UPC
- 7612245646146, 301584790487, 522417395628, 551905969195 +7 more
- Also known as
- Zyxel NWA5301-NJ 300 Mbit/s White Power over Ethernet (PoE)
Specifications
37 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.462, 2.412 - 2.472 GHz |
| Bandwidth | 2.4 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 2 channels |
| Channel bandwidth | 40 MHz |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |

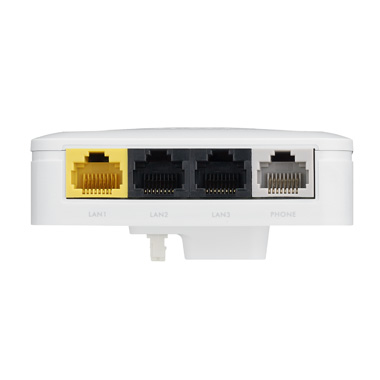

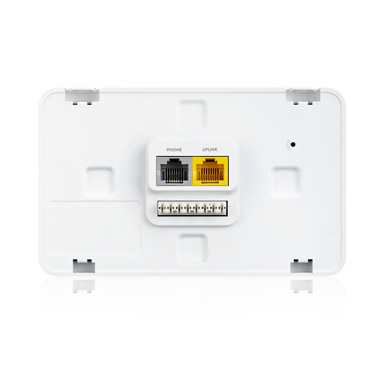

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 13 W |
| Power supply | 7 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4.5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | ETSI EN 300 328, FCC Part 15C, LP0002, EN 60601-1-2 EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, FCC Part B, BSMI CNS13438 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 138 mm |
| Height | 37.4 mm |
| Weight | 172 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 141 mm |
| Package height | 64 mm |
| Package weight | 440 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
