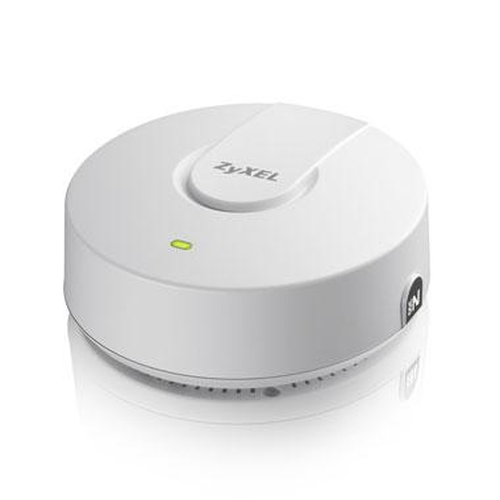

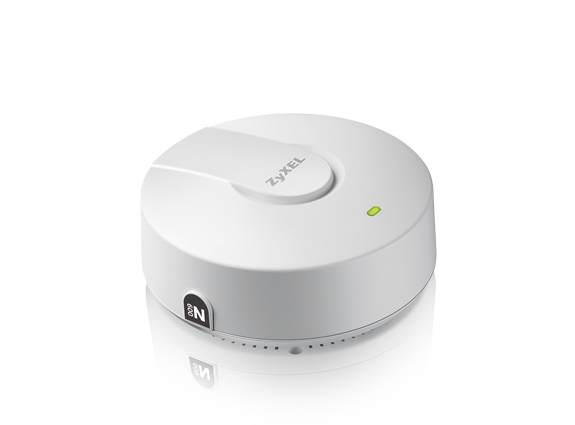

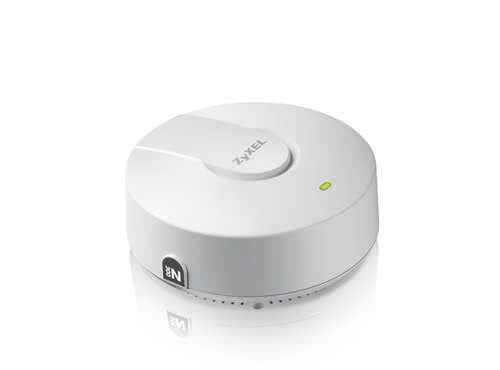

Zyxel NWA5123-NI v2

Zyxel NWA5123-NI v2

Model NWA5123-NI v2Part no. 4644EAN 7612245646443

43 specifications
  • Speed300 Mbit/s
  • Weight250 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • Antenna featuresIntegrated antenna
See all specifications

Overview

Speed
300 Mbit/s
Weight
250 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Antenna features
Integrated antenna
Brand
Zyxel
Model
NWA5123-NI v2
Part number
4644
EAN / UPC
7612245646443
Also known as
Zyxel NWA5123-NI v2 300 Mbit/s White Power over Ethernet (PoE)

Specifications

43 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Channel bandwidth40 MHz
Modulation16-QAM, 64-QAM, BPSK, DSSS, OFDM, QPSK
VLAN supportYes
Quality of Service (QoS) supportYes
Transmitting power26 dBmW
Receiver sensitivity2.4 GHz: • 802.11b/g, 97 dBm • 802.11n/20 MHz, 93 dBm • 802.11n/40 MHz, 90 5 GHz: • 802.11a, 94 dBm • 802.11n/20 MHz, 93 dBm • 802.11n/40 MHz, 91 dBm

Security

Security algorithmsEAP, SSID, WEP, WPA, WPA2, WPA2-PSK
MAC address filteringYes

Protocols

DHCP clientYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Output voltage12 V
Output current1 A

Design

Product colourWhite
LED indicatorsYes
InternalYes

Antenna

Antenna featuresIntegrated antenna
Antennas quantity4
Antenna gain level (max)6 dBi

Certificates

CertificationETSI EN 300 328 V1.7.1: 11-2006 EN 301 893 V1.5.1 FCC Part 15.247 FCC Part 15E LP0002 EN 60601-1-2: 2007 EN 301 489-1 V1.8.1: 11-2008 EN 301 489-17 V2.1.1: 05-2009 EN55022: 2010 EN55024: 2010 EN61000-3-2/-3 FCC Part 15.107 BSMI CNS13438.99; CNS14336: 99 EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:

Weight & dimensions

Width130 mm
Depth130 mm
Height54.5 mm
Weight250 g

Packaging data

Package width282 mm
Package depth207 mm
Package height71 mm
Package weight630 g

Packaging content

AC adapter includedYes
Mounting kitYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
